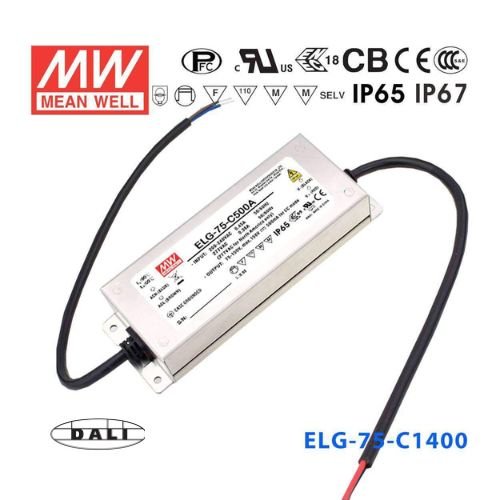

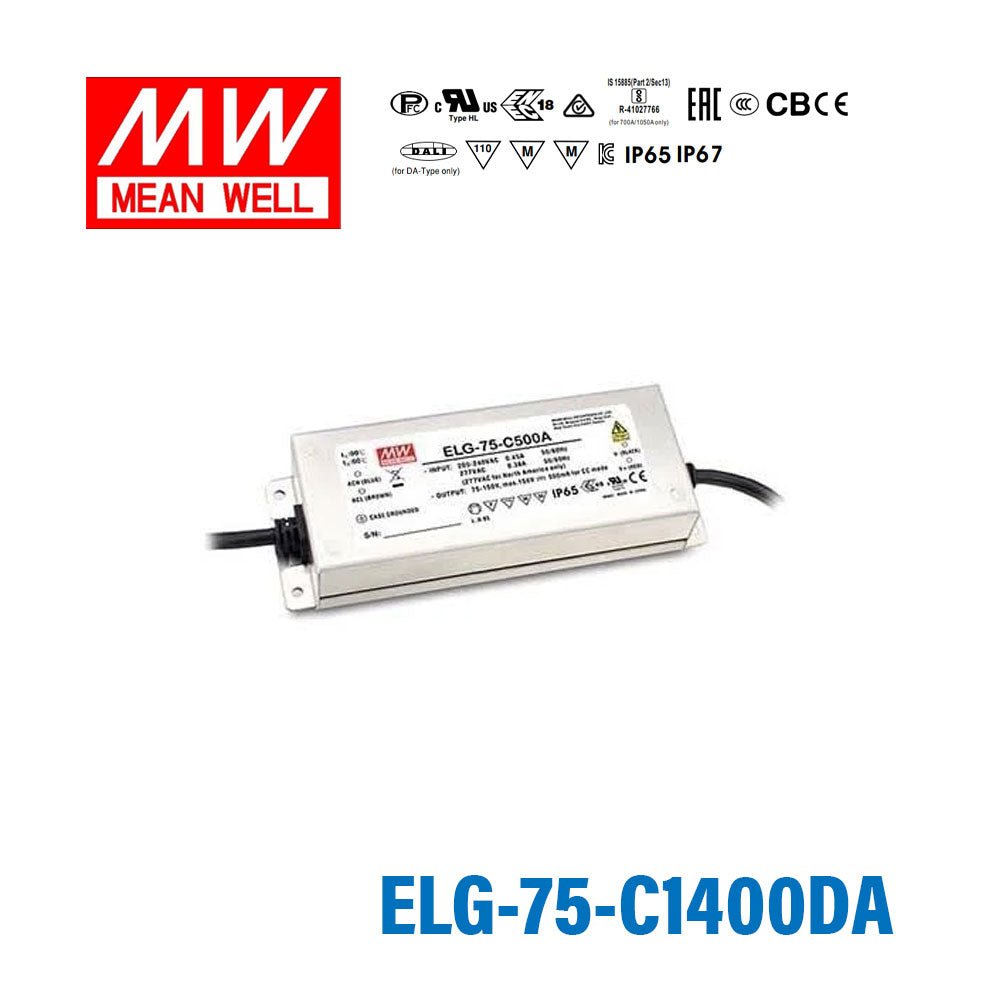

Mean Well ELG-75-C1400DA Power Supply 75W 1400mA

Name: Mean Well ELG-75-C1400DA Power Supply 75W 1400mA - DALI
Brand: Mean Well
SKU: ELG-75-C1400DA
Price: 39.48 USD
Availability: InStock

Overview

ELG-75-C1400DA is the model of this series: rated current 1400mA, typical efficiency 90%. Type DA: DALI control technology (IP67).

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function options: DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-C1400DASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER 200VAC ~ 305VAC^Note.5: 75.6W
RATED POWER 100VAC ~ 180VAC^Note.5: 60.2W
CONSTANT CURRENT REGION^Note.2: 27 ~ 54V
OPEN CIRCUIT VOLTAGE(max.): 61V
CURRENT ADJ. RANGE: 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA -Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 64 ~ 79V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP67; GB/T19510.1, GB/T19510.213;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5 mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA (this model): DALI control technology; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ELG-75-C1400DA BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-75-C1400DA OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-75-C1400DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-C1400DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-C1400DA ※ B/DA-Type — ※ B/DA-Type

ELG-75-C1400DA Illustration (page 9) — Illustration (page 9)

ELG-75-C1400DA Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-C1400DA datasheetELG-75-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75-C)(EN) PDF Download

CB Certificate (ELG-75-C)(EN) PDF Download

EMC Certificate (ELG-75-C)(EN) PDF Download

ENEC Certificate (ELG-75-C)(EN) PDF Download

Test reports1

Test Report (ELG-75-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-75-C1400DA be integrated into a DALI-controlled smart lighting system?

Yes. The DA suffix on the ELG-75-C1400DA indicates it includes a DALI (Digital Addressable Lighting Interface) dimming input, making it directly compatible with DALI lighting control systems. It delivers 1400mA constant current across a 27–54V range, suitable for LED downlights and small LED arrays in DALI-networked installations.

Is the ELG-75-C1400DA suitable for outdoor LED signage with a DALI control bus?

Yes. The ELG-75-C1400DA carries an IP67 waterproof rating, providing dust protection and temporary submersion resistance. Combined with its DALI dimming capability, it is a suitable choice for outdoor LED signage projects where a DALI control bus is used for centralized brightness management.

Can I use the ELG-75-C1400DA in a museum or gallery LED lighting project requiring smooth, flicker-free DALI dimming?

The ELG-75-C1400DA supports DALI dimming (IEC62386-101/102, 16 groups and 64 addresses), giving digital control suitable for museum and gallery lighting. Its constant current output of 1400mA across 27–54V keeps LED drive current regulated; the spec sheet does not state flicker performance, so verify it against your project requirements.

How does the ELG-75-C1400DA differ from the ELG-75-C1400B?

Both share the same 75.6W / 1400mA output and IP67 rating. The ELG-75-C1400B uses a 3-in-1 dimming interface (0–10V, 10V PWM, resistance), while the ELG-75-C1400DA uses a DALI interface for addressable digital control. The choice depends on your lighting control infrastructure.

What is the operating temperature range of the ELG-75-C1400DA, and can it operate in cold outdoor conditions?

The ELG-75-C1400DA is rated for a working case temperature (Tcase) of -40°C to +85°C, covering extreme cold-weather outdoor deployments; at high ambient temperatures the load derates per the load vs temperature curve. Its IP67 rating also protects against dust and moisture ingress in those conditions.

Can the ELG-75-C1400DA drive LED modules in a small series-connected array for architectural lighting?

Yes. As a constant current driver outputting 1400mA, the ELG-75-C1400DA maintains stable current through a series LED string regardless of load variation, making it well suited for architectural LED arrays. The total number of LEDs in the string is determined by each LED's forward voltage, and the string's combined voltage must fall within the 27–54V operating range.
