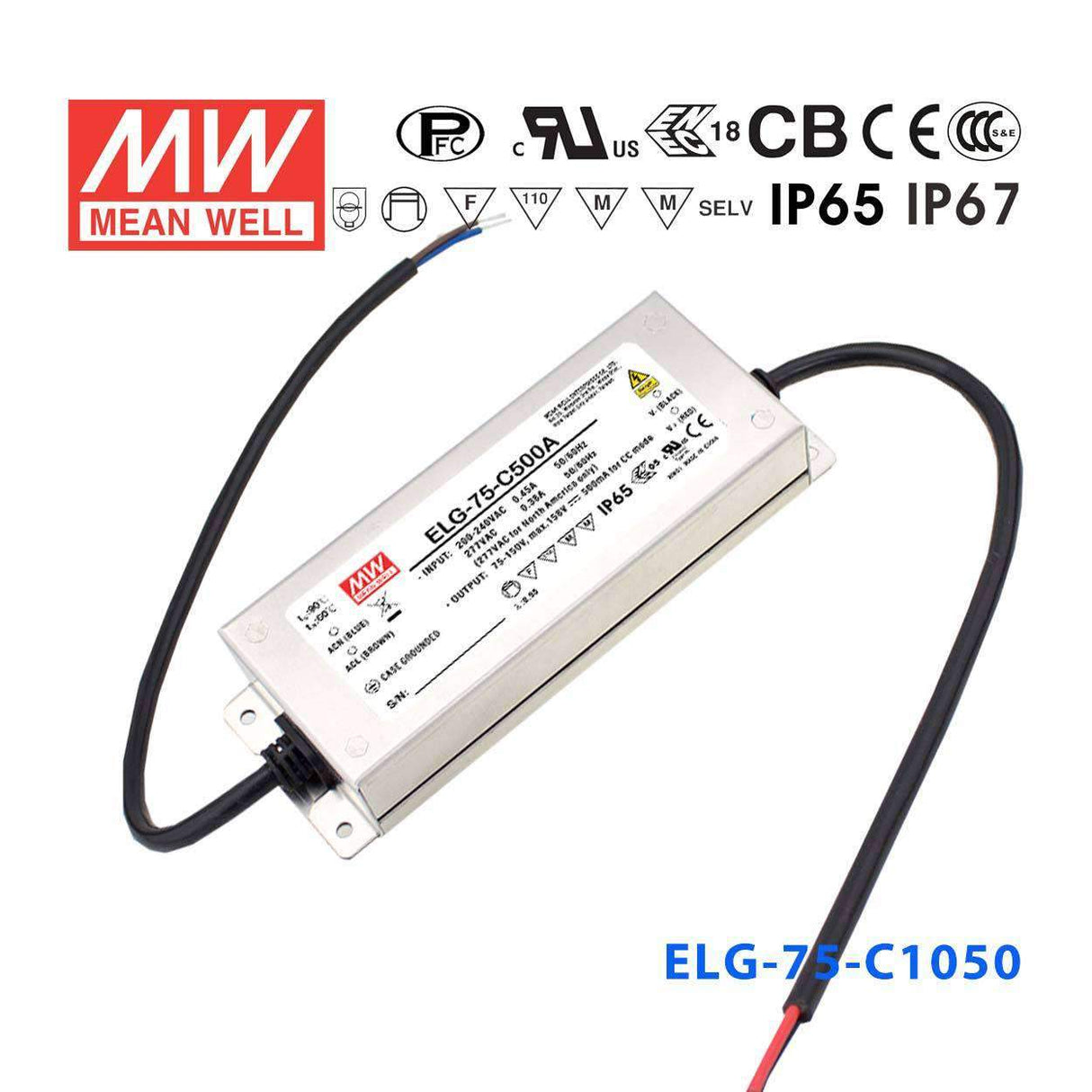

Mean Well ELG-75-C1050B Power Supply 75W 1050mA

Name: Mean Well ELG-75-C1050B Power Supply 75W 1050mA - Dimmable
Brand: Mean Well
SKU: ELG-75-C1050B
Price: 36.31 USD
Availability: InStock

Overview

ELG-75-C1050B is the model of this series: rated current 1050mA, typical efficiency 90%. Type B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-C1050BSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER 200VAC ~ 305VAC^Note.5: 74.55W
RATED POWER 100VAC ~ 180VAC^Note.5: 59.85W
CONSTANT CURRENT REGION^Note.2: 35 ~ 71V
OPEN CIRCUIT VOLTAGE(max.): 78V
CURRENT ADJ. RANGE: 525 ~ 1050mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA -Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 80 ~ 100V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65 or IP67; GB/T19510.1, GB/T19510.213;KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5 mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA: DALI control technology; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ELG-75-C1050B BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-75-C1050B DIMMING OPERATION — DIMMING OPERATION

ELG-75-C1050B OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-75-C1050B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-C1050B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-C1050B Illustration (page 9) — Illustration (page 9)

ELG-75-C1050B Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-C1050B datasheetELG-75-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75-C)(EN) PDF Download

CB Certificate (ELG-75-C)(EN) PDF Download

EMC Certificate (ELG-75-C)(EN) PDF Download

ENEC Certificate (ELG-75-C)(EN) PDF Download

Test reports1

Test Report (ELG-75-C1050)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-75-C1050B be installed in fully outdoor LED luminaires exposed to driving rain?

Yes. The ELG-75-C1050B carries an IP67 waterproof rating, meaning it is dust-tight and can withstand temporary immersion in water. This makes it suitable for outdoor area luminaires, floodlights, and LED fixtures mounted in exposed exterior locations.

Is the ELG-75-C1050B a good fit for LED floodlights used in sports or facade lighting?

Yes. The ELG-75-C1050B delivers 1050mA constant current within a 35–71V output voltage range at 74.55W total power. Its IP67 rating and -40°C to +85°C working case temperature (Tcase) range make it a practical choice for outdoor LED floodlight applications on building facades or sports fields.

What LED loads is the ELG-75-C1050B compatible with?

The ELG-75-C1050B is a constant-current driver outputting 1050mA. It is compatible with any series LED string whose combined forward voltage falls within the 35–71V CC range; the number of LEDs that fit depends on each LED's forward voltage and cannot be stated as a fixed count.

Can the ELG-75-C1050B power LED modules in underground or below-grade lighting fixtures?

Yes, with care. The IP67 rating means this driver tolerates temporary immersion, which suits below-grade vault lighting or in-ground uplight fixtures where occasional water ingress is possible. It is not rated for continuous submersion, so locations where water stands for long periods need additional protection.

Does the ELG-75-C1050B support dimming, and how does it differ from the ELG-75-C1050A?

Yes. The 'B' suffix indicates this model includes a 3-in-1 dimming interface accepting 0–10VDC, a 10V PWM signal, or resistance. The ELG-75-C1050A provides adjustable output current only via a potentiometer (no dimming signal input), while the ELG-75-C1050B adds a dimming control input. Both share the same 74.55W and 1050mA rating, but the ELG-75-C1050A is IP65 and the ELG-75-C1050B is IP67.

Is the ELG-75-C1050B suitable for LED street lighting or pathway lights in public infrastructure?

Yes. The IP67-rated ELG-75-C1050B withstands the outdoor temperature extremes (Tcase -40°C to +85°C) and moisture conditions encountered in street and pathway LED fixtures. Its 1050mA constant-current output ensures stable LED operation, and the series has a typical life expectancy above 50,000 hours at Tcase of about 80°C or less.
