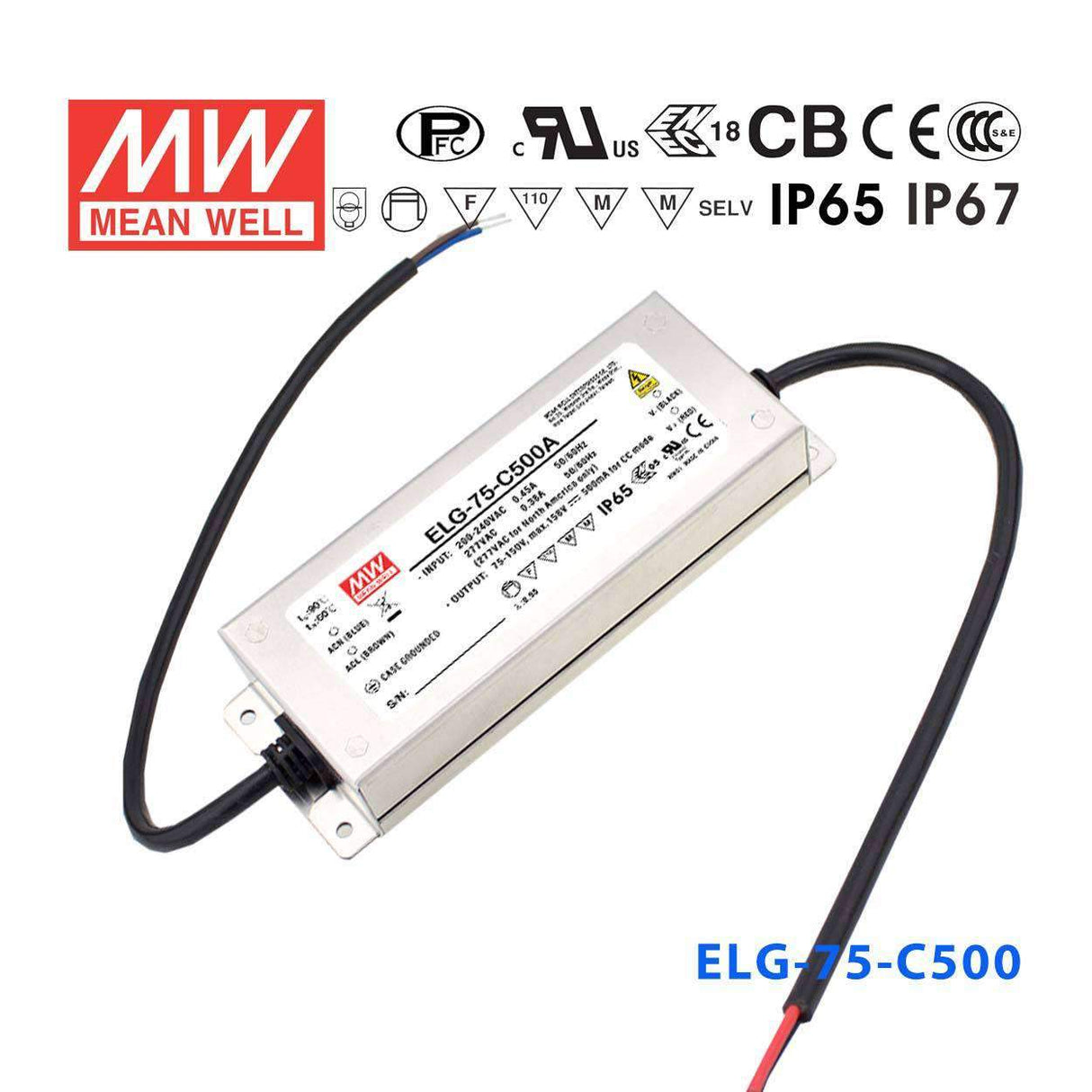

Mean Well ELG-75-C500B Power Supply 75W 500mA

Name: Mean Well ELG-75-C500B Power Supply 75W 500mA - Dimmable
Brand: Mean Well
SKU: ELG-75-C500B
Price: 33.79 USD
Availability: InStock

Overview

ELG-75-C500B is the model of this series: rated current 500mA, typical efficiency 91%. Type B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-C500BSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 500mA
RATED POWER 200VAC ~ 305VAC^Note.5: 75W
RATED POWER 100VAC ~ 180VAC^Note.5: 60W
CONSTANT CURRENT REGION^Note.2: 75 ~ 150V
OPEN CIRCUIT VOLTAGE(max.): 158V
CURRENT ADJ. RANGE: 250 ~ 500mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA -Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 160 ~ 190V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65 or IP67; GB/T19510.1, GB/T19510.213;KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5 mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA: DALI control technology; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ELG-75-C500B BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-75-C500B DIMMING OPERATION — DIMMING OPERATION

ELG-75-C500B OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-75-C500B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-C500B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-C500B Illustration (page 9) — Illustration (page 9)

ELG-75-C500B Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-C500B datasheetELG-75-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75-C)(EN) PDF Download

CB Certificate (ELG-75-C)(EN) PDF Download

EMC Certificate (ELG-75-C)(EN) PDF Download

ENEC Certificate (ELG-75-C)(EN) PDF Download

Test reports1

Test Report (ELG-75-C500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-75-C500B drive LED downlights in a damp or wet location that also requires dimming?

Yes. The ELG-75-C500B combines IP67 waterproof protection with three-in-one dimming (0–10V, 10V PWM, and resistance), making it suitable for wet-location downlight installations that need brightness control. It delivers a constant 500mA within a CC voltage range of 75–150V.

Is this driver appropriate for outdoor LED signage with variable brightness requirements?

Yes. The IP67 rating and -40°C to +85°C working case temperature (Tcase) range allow the ELG-75-C500B to be installed in exposed outdoor signage enclosures. The three-in-one dimming interface supports automated brightness scheduling via 0–10V, 10V PWM, or resistance control signals.

Can the ELG-75-C500B be installed in a cold-storage facility requiring dimming control?

Yes. The -40°C minimum working case temperature and IP67 waterproof rating make the ELG-75-C500B suitable for freezer and cold-room environments. The dimming capability allows light levels to be reduced during off-peak periods to save energy.

How many LEDs can I power in series with the ELG-75-C500B?

The CC voltage range is 75–150V. The series string length is determined by the forward voltage of each LED you are using; the sum of all forward voltages must fall within 75–150V. Consult your LED datasheet for the typical forward voltage at 500mA to calculate the correct string length.

How does the ELG-75-C500B compare to the ELG-75-C500AB for outdoor applications?

Both are 75W, 500mA constant current drivers with three-in-one dimming and a 75–150V CC range; the AB also adds potentiometer current adjustment. For outdoor use the key difference is IP rating: the ELG-75-C500B is IP67 (waterproof, temporary immersion rated), while the ELG-75-C500AB is IP65 (water-resistant, no immersion). For outdoor or wet-area installations, the ELG-75-C500B offers a higher level of protection.

What certifications does the ELG-75-C500B carry?

The ELG-75-C500B meets UL8750 (Type HL), CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1 and 61347-2-13, BS EN/EN62384, GB/T19510, EAC and KC safety standards, covering the major regulatory markets including North America, Europe, Australia, and China.

Can the ELG-75-C500B operate on both 120V and 277V commercial mains supplies?

Yes. The universal input range of 100–305VAC means the ELG-75-C500B accepts 120V residential, 208V, 230V European, and 277V commercial supplies without modification. No manual voltage selection is required; note that rated power is 60W at 100–180VAC and 75W at 200–305VAC.
