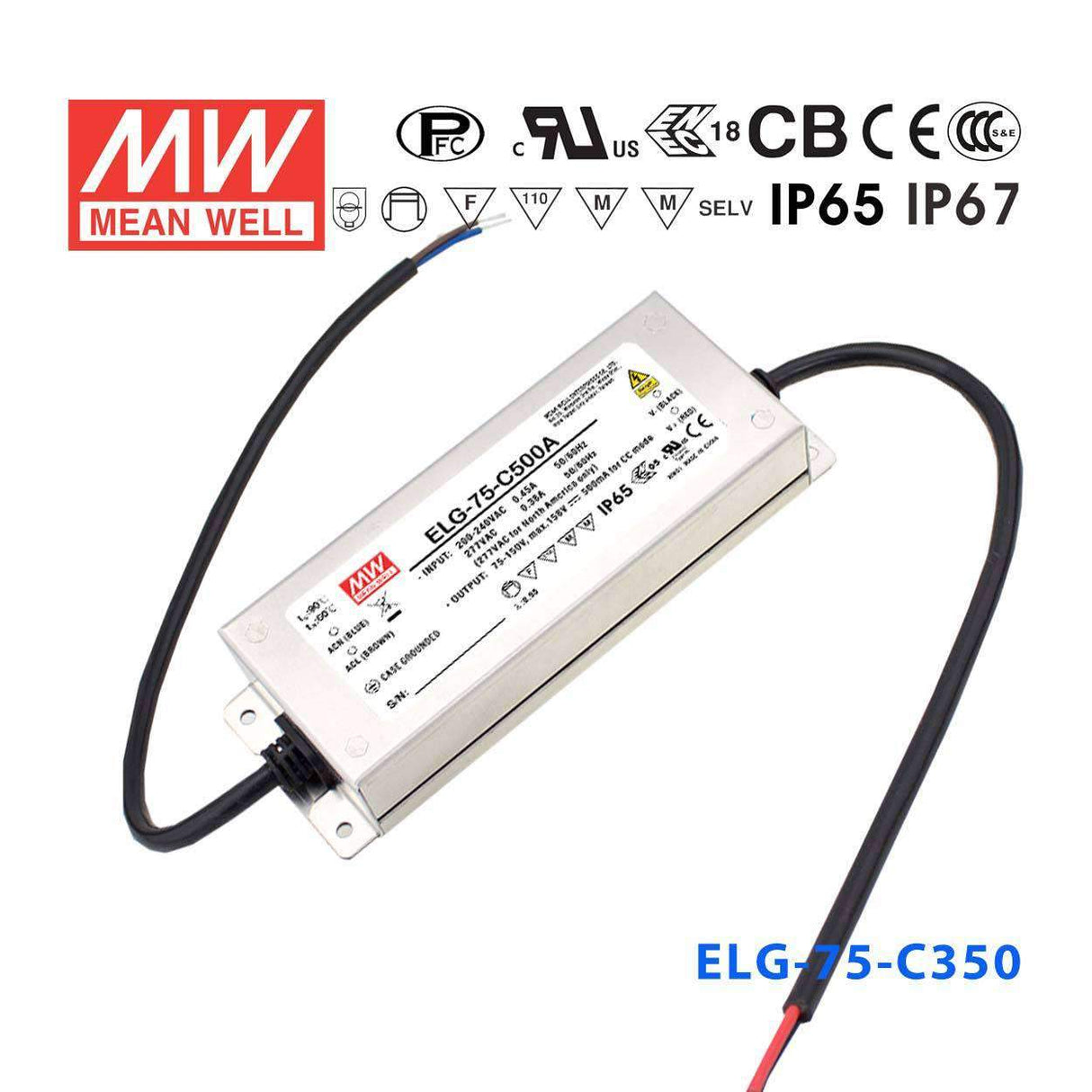

Mean Well ELG-75-C350 Power Supply 75W 350mA
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating74.9 Watt
-
Output Voltage224 Volt
-
Rated Current0.35 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can the ELG-75-C350 drive a long series string of LED signage modules at 350mA?
Yes. The ELG-75-C350 delivers a constant 350mA output across a 107–214V CC voltage range, making it suitable for longer series strings of LED signage modules whose combined forward voltage falls within that window. The number of LEDs that fit in the string depends on each LED's forward voltage; at lower per-LED voltages, more LEDs can be accommodated.
Is the ELG-75-C350 appropriate for outdoor LED installations exposed to rain?
Yes. The ELG-75-C350 is rated IP67, providing complete dust protection and resistance to temporary water submersion up to 1 meter. It is well suited for outdoor LED sign cabinets, exterior architectural lighting, and other exposed outdoor installations.
Can I use the ELG-75-C350 to power a series-connected LED downlight array at 350mA constant current?
Yes. The ELG-75-C350 operates in constant current mode at 350mA, which is a common drive current for mid-power LED downlight modules. It can power a series string of LED downlights as long as the combined forward voltages of all modules fall between 107V and 214V and total power does not exceed 74.9W.
Does the ELG-75-C350 accept both 120V and 230V mains input without modification?
Yes. The ELG-75-C350 accepts 100–305VAC input, covering 120V North American, 230V European, and 277V US commercial supplies automatically without any manual switching or configuration.
What is the temperature rating of the ELG-75-C350, and can it be used in unheated outdoor enclosures?
The ELG-75-C350 is rated from -40°C to +85°C, making it suitable for unheated outdoor enclosures in cold climates. Its IP67 rating further protects against moisture ingress in those environments.
How does the base ELG-75-C350 compare to the ELG-75-C350A and ELG-75-C350B variants?
All three share the same 74.9W / 350mA output and 107–214V CC voltage range. The base ELG-75-C350 has no dimming or output adjustment; the ELG-75-C350A adds output adjustability via a potentiometer and uses an IP65 rating instead of IP67; the ELG-75-C350B adds a 3-in-1 dimming interface (0–10V, PWM, resistance) while retaining IP67. Select the base model when no dimming or adjustment is required.
