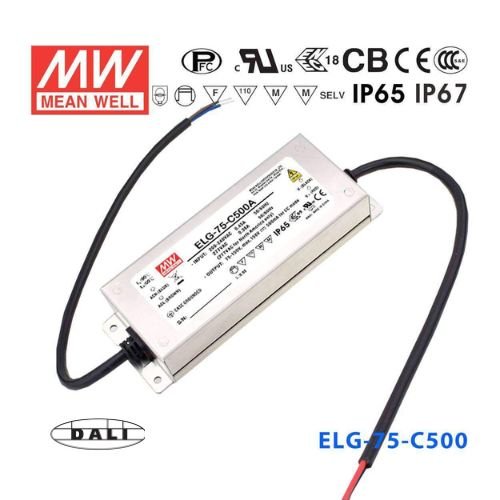

Mean Well ELG-75-C500DA Power Supply 75W 500mA - DALI
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating75 Watt
-
Output Voltage158 Volt
-
Rated Current0.5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can I use the ELG-75-C500DA to drive LED downlights in a commercial building with DALI lighting controls?
Yes. The ELG-75-C500DA supports DALI dimming, making it compatible with DALI-based building automation and lighting control systems. It delivers 500mA constant current at up to 75W, which suits mid-power LED downlight arrays where DALI dimming is required.
Is the ELG-75-C500DA suitable for outdoor LED signage installations?
Yes. The ELG-75-C500DA carries an IP67 waterproof rating, meaning it can withstand temporary immersion and is suitable for outdoor LED signage and exterior lighting enclosures. Its operating temperature range of -40°C to +85°C covers most outdoor climates.
Can the ELG-75-C500DA power a series string of LED modules in a linear lighting fixture?
Yes. It operates as a constant current driver at 500mA, with a CC voltage range of 75–150V dc. LED modules connected in series whose combined forward voltage falls within that range can be driven by this unit at up to 75W total.
What LED arrays are compatible with the ELG-75-C500DA's output?
Any LED array or series string that requires 500mA constant current and has a total forward voltage within the 75–150V CC range is compatible. The number of LEDs that fit depends on each LED's individual forward voltage.
Can the ELG-75-C500DA be installed in an unenclosed outdoor location?
It is rated IP67, which provides protection against dust ingress and temporary water immersion, so it can tolerate wet outdoor conditions. However, local electrical codes may still require a suitable enclosure; always verify installation requirements for the specific environment.
How does the ELG-75-C500DA differ from the ELG-75-C500 and ELG-75-C500A in the same family?
The ELG-75-C500 has no dimming capability. The ELG-75-C500A adds analog (0–10V or resistance) output adjustment. The ELG-75-C500DA replaces that analog adjustment with DALI digital dimming control. All three share the same 75W, 500mA constant current output.
