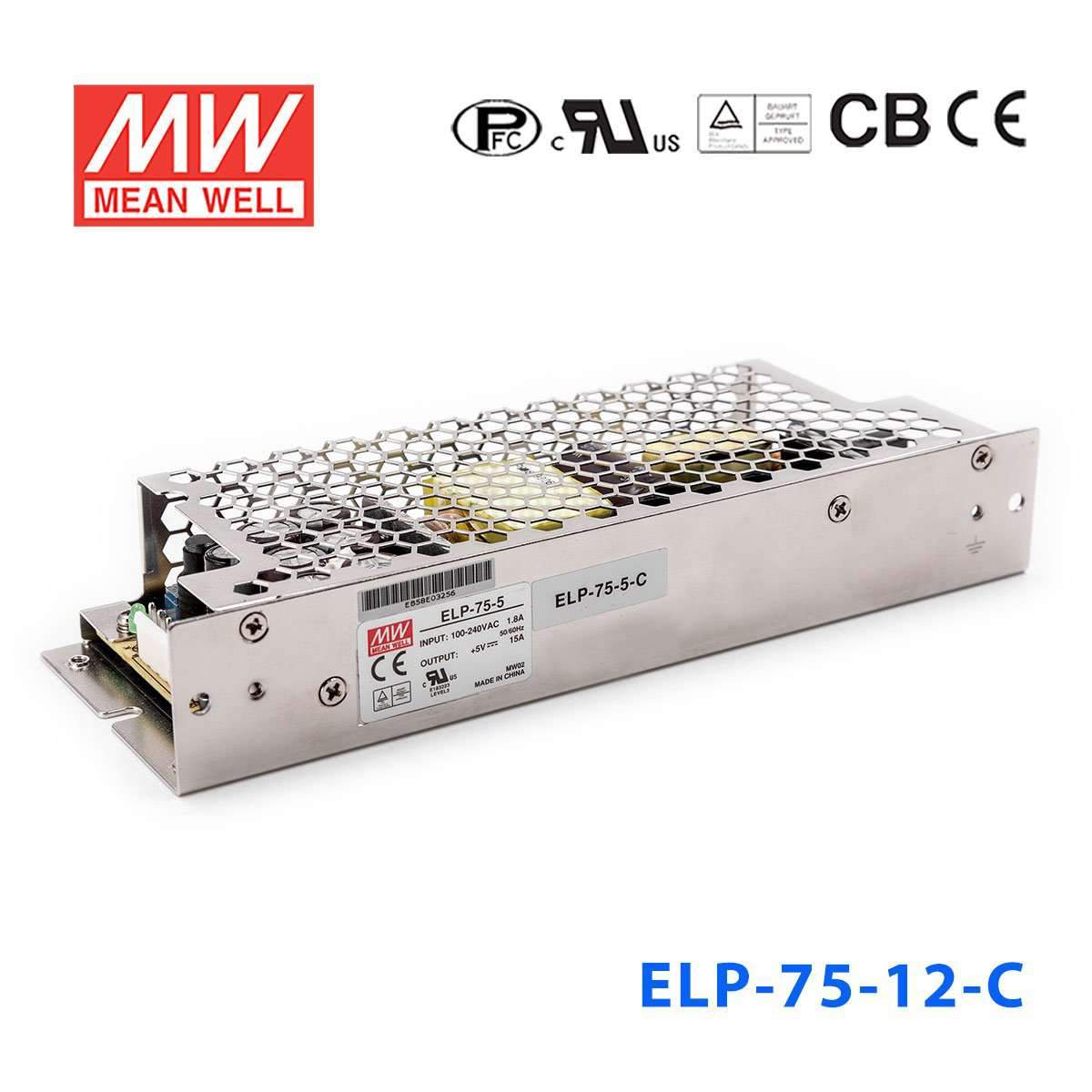

Mean Well ELP-75-12-C Power Supply 75W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-12-C Power Supply 75W 12V
The ELP-75-12 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.68 in
-
Width2.7 in
-
Height1.3 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can I use the ELP-75-12-C for 12V automation equipment in a machine cabinet?
Yes, this is a 12V constant voltage power supply rated for up to 6.25A and 75W. It fits 12V automation loads such as control accessories, sensors, indicators, or similar cabinet devices when the combined demand stays within those limits.
Is the ELP-75-12-C a fit for 12V communication or embedded electronics?
It can be used where the equipment requires a regulated 12V DC source and the total draw is no more than 6.25A or 75W. That makes it relevant for 12V embedded electronics, industrial communications hardware, or low-voltage support equipment using constant voltage input.
Can this model power a 12V HMI, display, or access-control subsystem?
It is suitable for 12V subsystems such as HMIs, displays, or access-control components if the system is designed for constant voltage operation at 12V. The available output is 75W total, with up to 6.25A current.
Is the ELP-75-12-C appropriate for compact 1U industrial or IT equipment?
This model uses a 1U low-profile design and measures 195.0 x 68.5 x 33.0 mm. For applications needing a 12V, 75W supply in a slim industrial or IT enclosure, those mechanical dimensions are the main fit check alongside the 6.25A output rating.
Can the ELP-75-12-C be used indoors or outdoors?
Its operating temperature range is -30 degrees C to +70 degrees C, which supports use across a wide temperature span. However, the provided specs do not list an IP rating, so outdoor exposure or washdown suitability cannot be confirmed from this specification set.
What are the differences across the ELP-75 family around the ELP-75-12-C?
The ELP-75 lineup includes ELP-75-12 and ELP-75-12-C at 75W, 12V, 6.25A; ELP-75-15 and ELP-75-15-C at 75W, 15V, 5A; and ELP-75-24 and ELP-75-24-C at 75.6W, 24V, 3.15A. It also includes ELP-75-36 and ELP-75-36-C at 75.6W, 36V, 2.1A; ELP-75-48 and ELP-75-48-C at 76.8W, 48V, 1.6A; ELP-75-5 and ELP-75-5-C at 75W, 5V, 15A; and ELP-75-3.3 and ELP-75-3.3-C at 49.5W, 3.3V, 15A. This specific model is one of the 12V, 75W, 6.25A variants in that sibling group.
