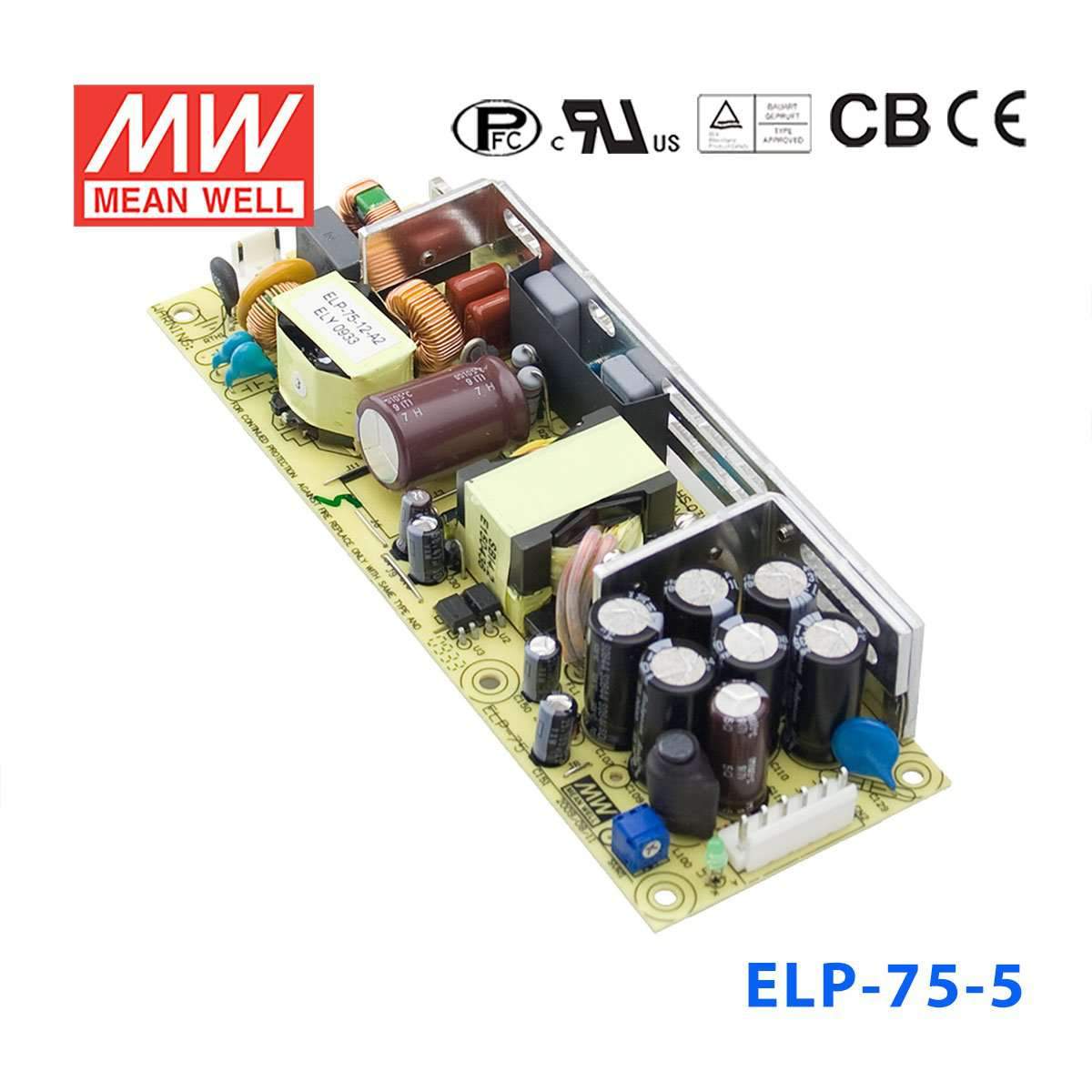

Mean Well ELP-75-5 Power Supply 75W 5V 15A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-5 Power Supply 75W 5V 15A
Overview
ELP-75-5 is the 5V output model of this series: rated current 15A, rated power 75W, typical efficiency 82%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 90%
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 1U low profile
- LED indicator for power on
- No load power consumption<0.5W
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 15A
- CURRENT RANGE
- 0 ~ 15A
- RATED POWER
- 75W
- RIPPLE & NOISE (max.)Note.2
- 80mVp-p
- VOLTAGE ADJ. RANGE
- 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.5%
- SETUP, RISE TIME
- 2500ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.6
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)Note.5
- 3.3V: PF>0.91/230VAC 5V~48V: PF>0.95/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 82%
- AC CURRENT (Typ.)
- 1.8A/115VAC 1 A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A/230VAC
- LEAKAGE CURRENT
- <1mA/240VAC
PROTECTION
- OVER LOAD
- 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.6 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.

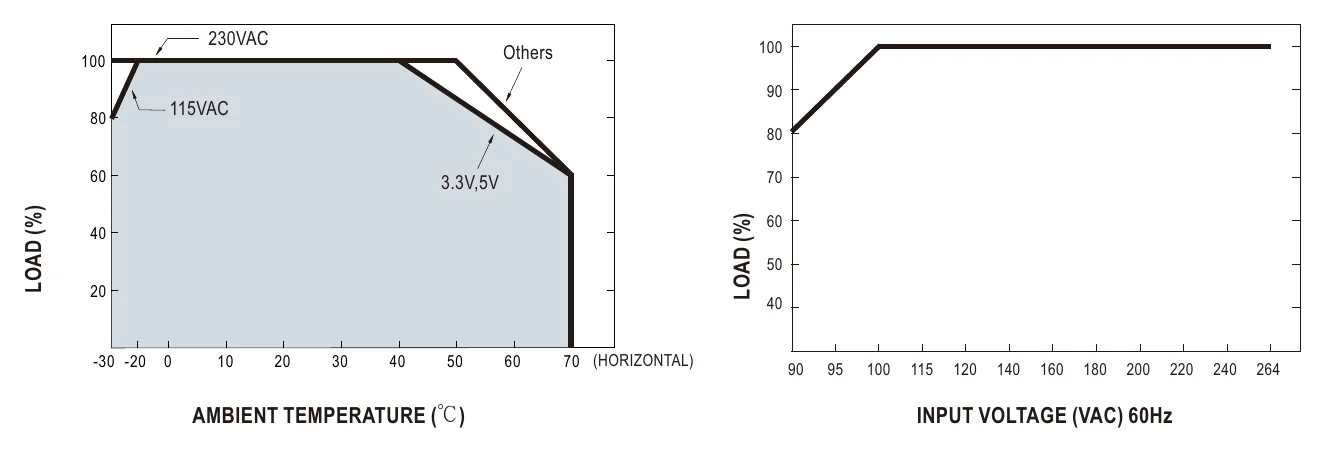

- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃(0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 500VDC / 25℃ / 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55024, heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 2229.2K hrs min. Telcordia SR-332 (Bellcore) ; 345.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION

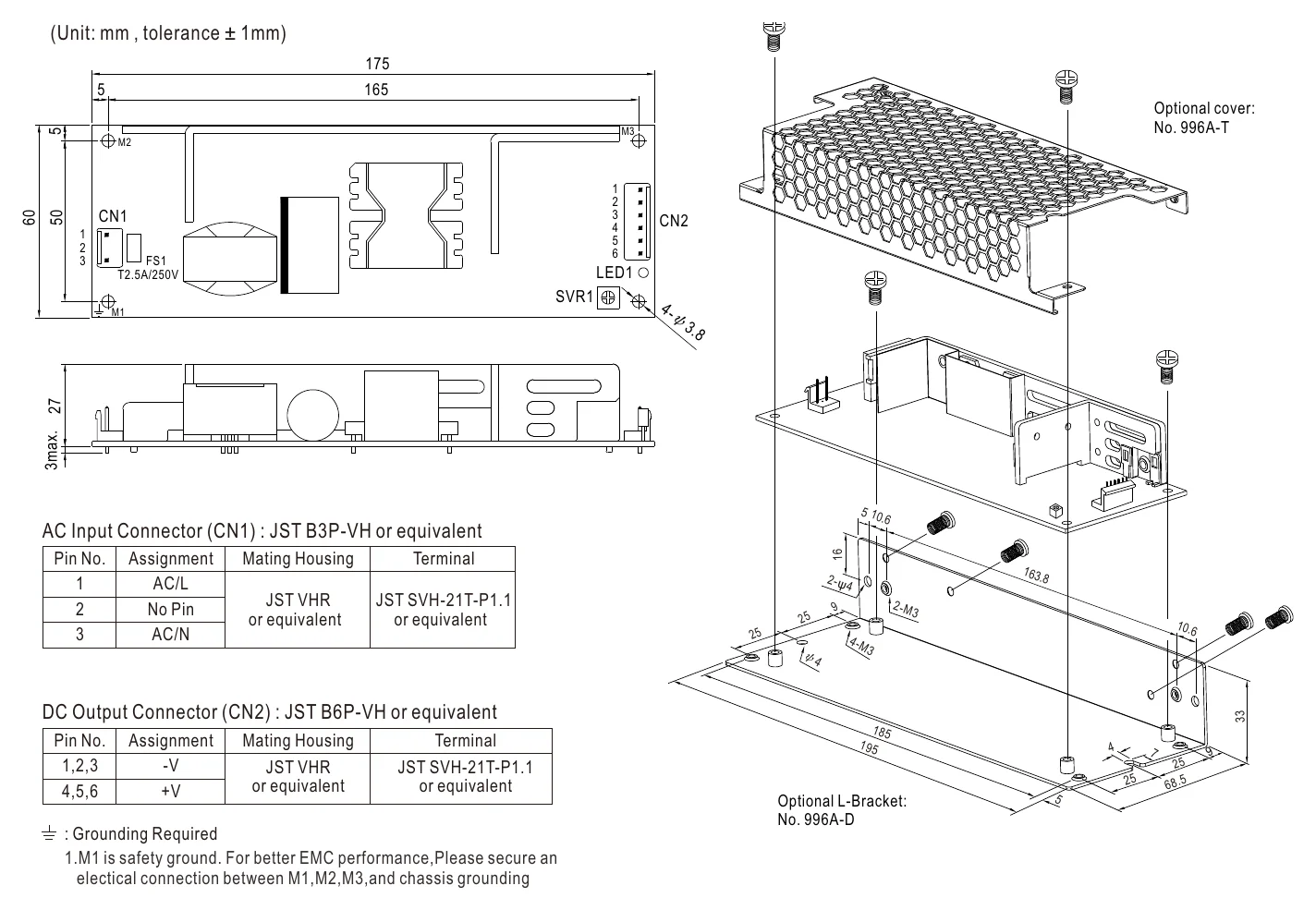

- PCB:175*60*27mm (L*W*H) with optional CASE:195*68.5*33mm (L*W*H)
- PACKING
- PCB:0.25Kg; 48pcs/13Kg/0.96CUFT with optional CASE:0.54Kg; 25pcs/14.5Kg/0.7CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. 3.3V PF>0.92/230VAC, others PF>0.95/230VAC.
- 6. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

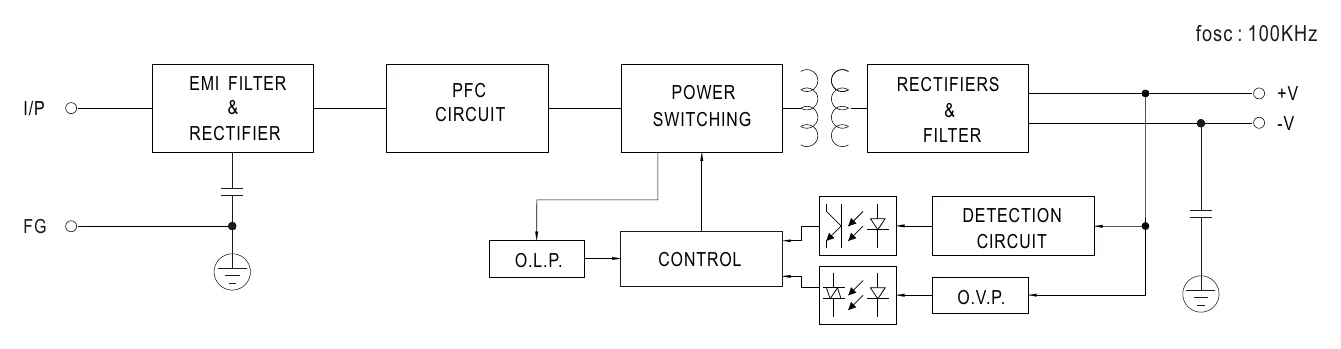

Technical drawings
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the ELP-75-5 for a 5V industrial controller or PLC accessory load?
Yes, if the equipment requires a constant 5V supply and the total load stays within 75W and 15A. That makes it a fit for 5V industrial control electronics, interface boards, and similar low-voltage automation loads that need higher current.
Is the ELP-75-5 suitable for powering embedded computers or multiple 5V logic devices in one system?
It can be used where several 5V embedded devices share one constant-voltage source, as long as the combined draw does not exceed 15A or 75W. The wide 90-264VAC input also helps when the same design is used across different AC input ranges.
Can this power supply run 5V HMI panels, sensors, or communication modules in an automation cabinet?
It is appropriate for 5V automation peripherals that need constant voltage and fit within the 15A output current limit. For cabinet builds, the 175 x 60 x 27 mm PCB size (195 x 68.5 x 33 mm with the optional case) can also matter where space is limited.
Is the ELP-75-5 okay for outdoor or harsh-area use?
The published operating temperature range is -30C to +70C, with load derating at higher ambient temperatures per the derating curve, but no IP rating is listed in the provided specs. That means temperature capability is stated, while outdoor or washdown suitability cannot be confirmed from these specs alone.
How does the ELP-75-5 compare with the other ELP-75 models?
Within the ELP-75 family, the ELP-75-5 is rated at 75W, 5V, 15A, while the ELP-75-3.3 is rated at 49.5W, 3.3V, 15A. The ELP-75-12 is rated at 75W, 12V, 6.25A; the ELP-75-15 at 75W, 15V, 5A; the ELP-75-24 at 75.6W, 24V, 3.15A; the ELP-75-36 at 75.6W, 36V, 2.1A; and the ELP-75-48 at 76.8W, 48V, 1.6A.
