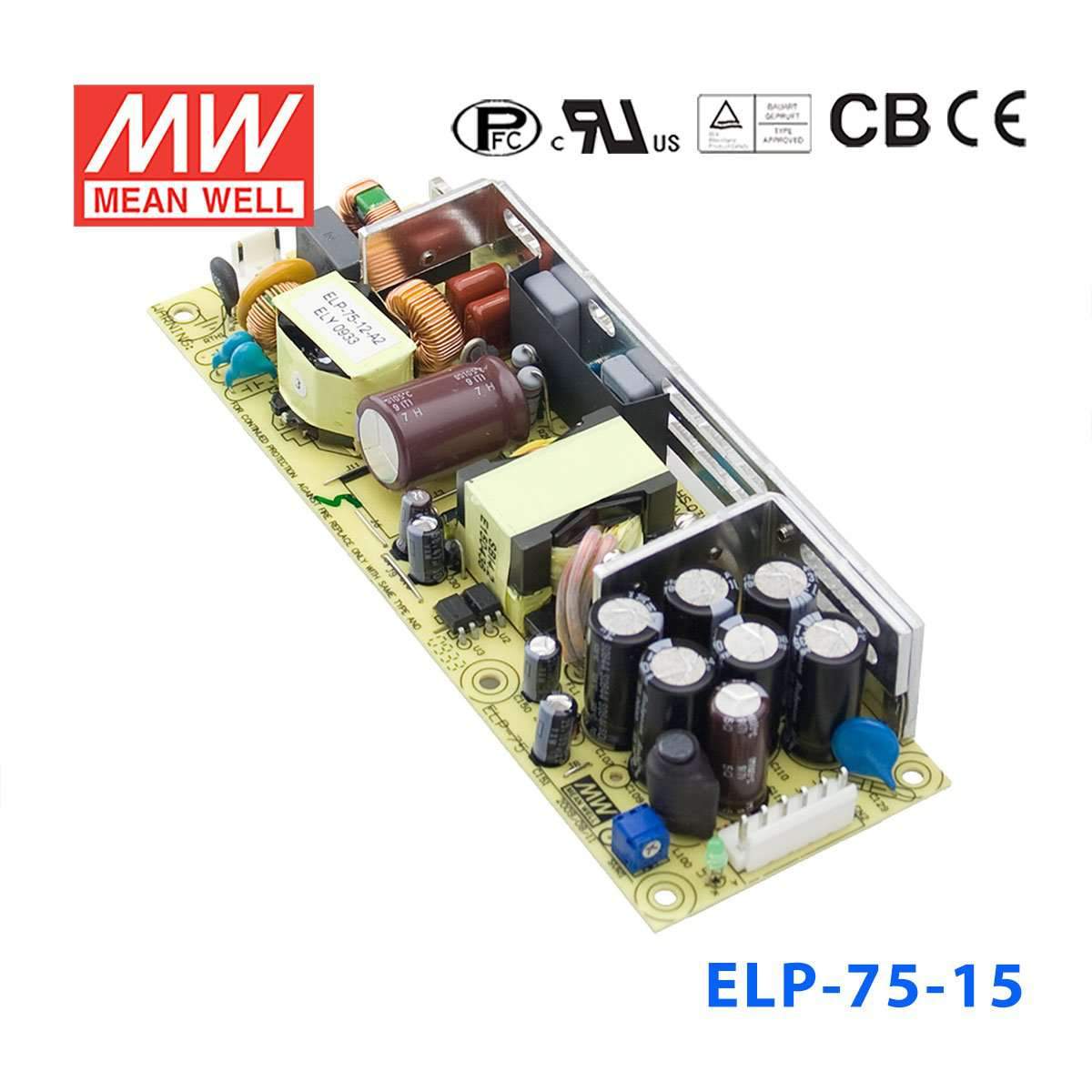

Mean Well ELP-75-15 Power Supply 75W 15V 5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-15 Power Supply 75W 15V 5A
Overview
ELP-75-15 is the 15V output model of this series: rated current 5A, rated power 75W, typical efficiency 90%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 90%
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 1U low profile
- LED indicator for power on
- No load power consumption<0.5W
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 5A
- CURRENT RANGE
- 0 ~ 5A
- RATED POWER
- 75W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 13.5 ~ 16.5V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 2500ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.6
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)Note.5
- 3.3V: PF>0.91/230VAC 5V~48V: PF>0.95/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 90%
- AC CURRENT (Typ.)
- 1.8A/115VAC 1 A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A/230VAC
- LEAKAGE CURRENT
- <1mA/240VAC
PROTECTION
- OVER LOAD
- 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃(0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 500VDC / 25℃ / 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55024, heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 2229.2K hrs min. Telcordia SR-332 (Bellcore) ; 345.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- PCB:175*60*27mm (L*W*H) with optional CASE:195*68.5*33mm (L*W*H)
- PACKING
- PCB:0.25Kg; 48pcs/13Kg/0.96CUFT with optional CASE:0.54Kg; 25pcs/14.5Kg/0.7CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. 3.3V PF>0.92/230VAC, others PF>0.95/230VAC.
- 6. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the ELP-75-15 for a 15V industrial controller or automation panel?
Yes, this model is a constant-voltage 15V power supply rated for 75W and 5A. It fits 15V industrial control or automation equipment that requires a regulated 15V DC source and stays within the 5A output limit.
Is the ELP-75-15 suitable for 15V embedded systems or industrial electronics?
It can be used for 15V embedded or industrial electronic loads when the equipment is designed for constant-voltage 15V input. The available output is 5A with total power up to 75W, so the combined load needs to remain within those ratings.
Can this 15V power supply run 15V relays, interface boards, or test equipment in a factory setting?
Yes, it is intended for 15V constant-voltage applications and can support industrial relays, interface boards, or bench and factory test devices that need 15V DC. Its 75W output and universal 90-264VAC input make it suitable for equipment used across different AC mains conditions.
What are the differences across the ELP-75 series models?
Within the listed sibling range, the series includes 3.3V models at 49.5W and 15A, 5V models at 75W and 15A, 12V models at 75W and 6.25A, 15V models at 75W and 5A, 24V models at 75.6W and 3.15A, 36V models at 75.6W and 2.1A, and 48V models at 76.8W and 1.6A. This ELP-75-15 is the 15V, 75W, 5A version in that group.
Is the ELP-75-15 suitable for outdoor or harsh-temperature environments?
The stated operating temperature range is -30°C to +70°C, with load derating at higher ambient temperatures per the derating curve, so the temperature specification supports a wide indoor industrial range. No IP rating is provided in the supplied specs, so outdoor, wet, or washdown suitability is not established here.
