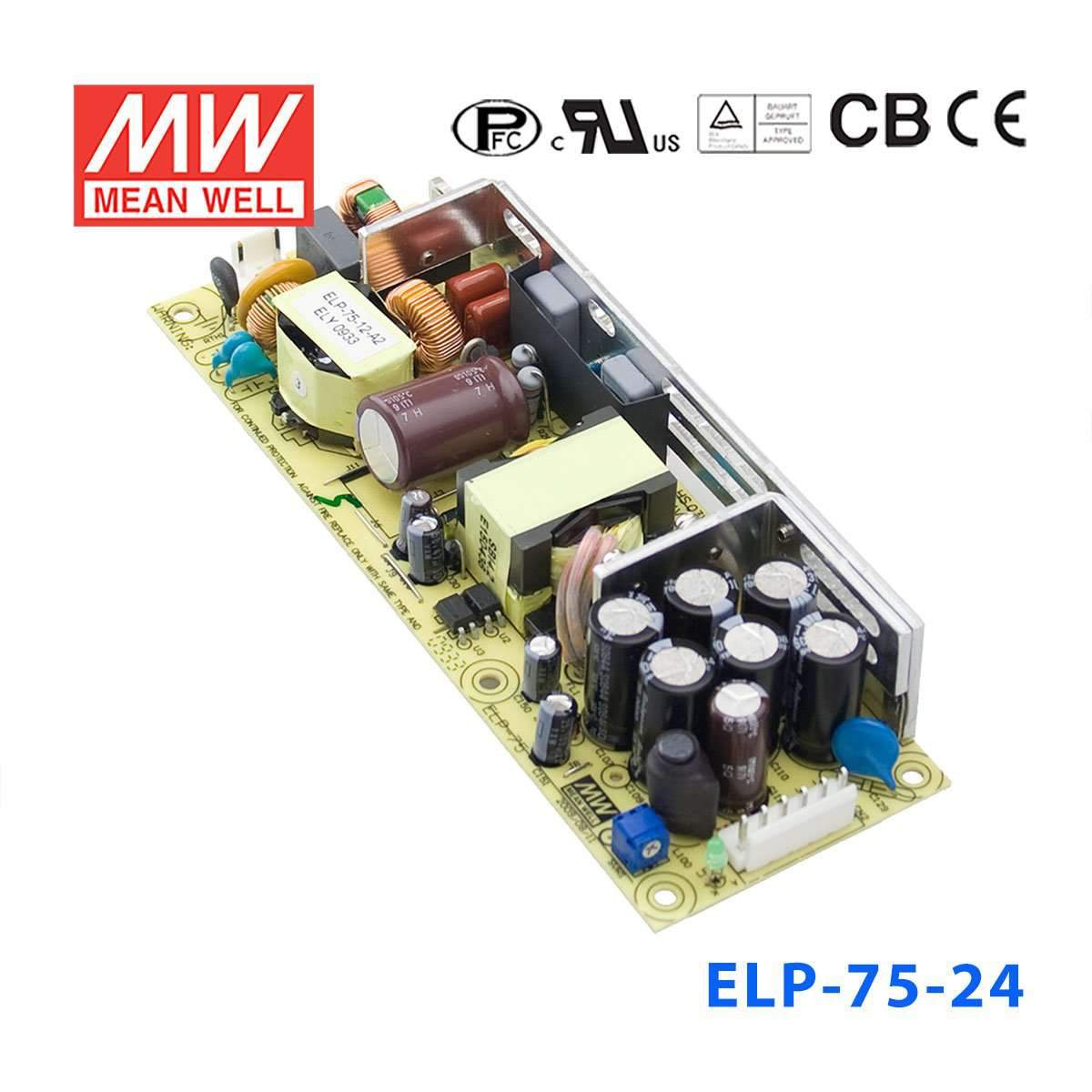

Mean Well ELP-75-24 Power Supply 75W 24V 3.15A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-24 Power Supply 75W 24V 3.15A
Overview
ELP-75-24 is the 24V output model of this series: rated current 3.15A, rated power 75.6W, typical efficiency 90%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 90%
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 1U low profile
- LED indicator for power on
- No load power consumption<0.5W
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 3.15A
- CURRENT RANGE
- 0 ~ 3.15A
- RATED POWER
- 75.6W
- RIPPLE & NOISE (max.)Note.2
- 240mVp-p
- VOLTAGE ADJ. RANGE
- 21.6 ~ 26.4V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 2500ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.6
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)Note.5
- 3.3V: PF>0.91/230VAC 5V~48V: PF>0.95/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 90%
- AC CURRENT (Typ.)
- 1.8A/115VAC 1 A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A/230VAC
- LEAKAGE CURRENT
- <1mA/240VAC
PROTECTION
- OVER LOAD
- 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃(0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 500VDC / 25℃ / 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55024, heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 2229.2K hrs min. Telcordia SR-332 (Bellcore) ; 345.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- PCB:175*60*27mm (L*W*H) with optional CASE:195*68.5*33mm (L*W*H)
- PACKING
- PCB:0.25Kg; 48pcs/13Kg/0.96CUFT with optional CASE:0.54Kg; 25pcs/14.5Kg/0.7CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. 3.3V PF>0.92/230VAC, others PF>0.95/230VAC.
- 6. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the ELP-75-24 for 24V PLC accessories or industrial I/O hardware?
Yes, this is a constant-voltage 24V supply rated for 75.6W and 3.15A. It is appropriate for 24V PLC accessories, I/O hardware, or control electronics that require 24V DC and stay within the 3.15A output limit.
Is the ELP-75-24 suitable for 24V industrial sensors and automation devices?
It can be used with 24V automation devices, sensors, or control modules that are designed for constant-voltage 24V input. Available output is 3.15A, with total power up to 75.6W.
Can this 24V model power embedded control systems or industrial communication equipment?
Yes, if the embedded control or communications equipment is specified for 24V DC input and the load remains within 75.6W and 3.15A. The 90-264VAC input also supports use where AC input conditions vary across regions or facilities.
How does the ELP-75-24 differ from other ELP-75 series power supplies?
The sibling range includes 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A. This model is the 24V, 75.6W, 3.15A version.
Is the ELP-75-24 rated for outdoor use or wide-temperature operation?
Its operating temperature range is -30°C to +70°C, with load derating at higher ambient temperatures per the derating curve, which supports use in a wide temperature span. No IP rating is listed in the provided specifications, so outdoor exposure or water-resistant use is not confirmed here.
