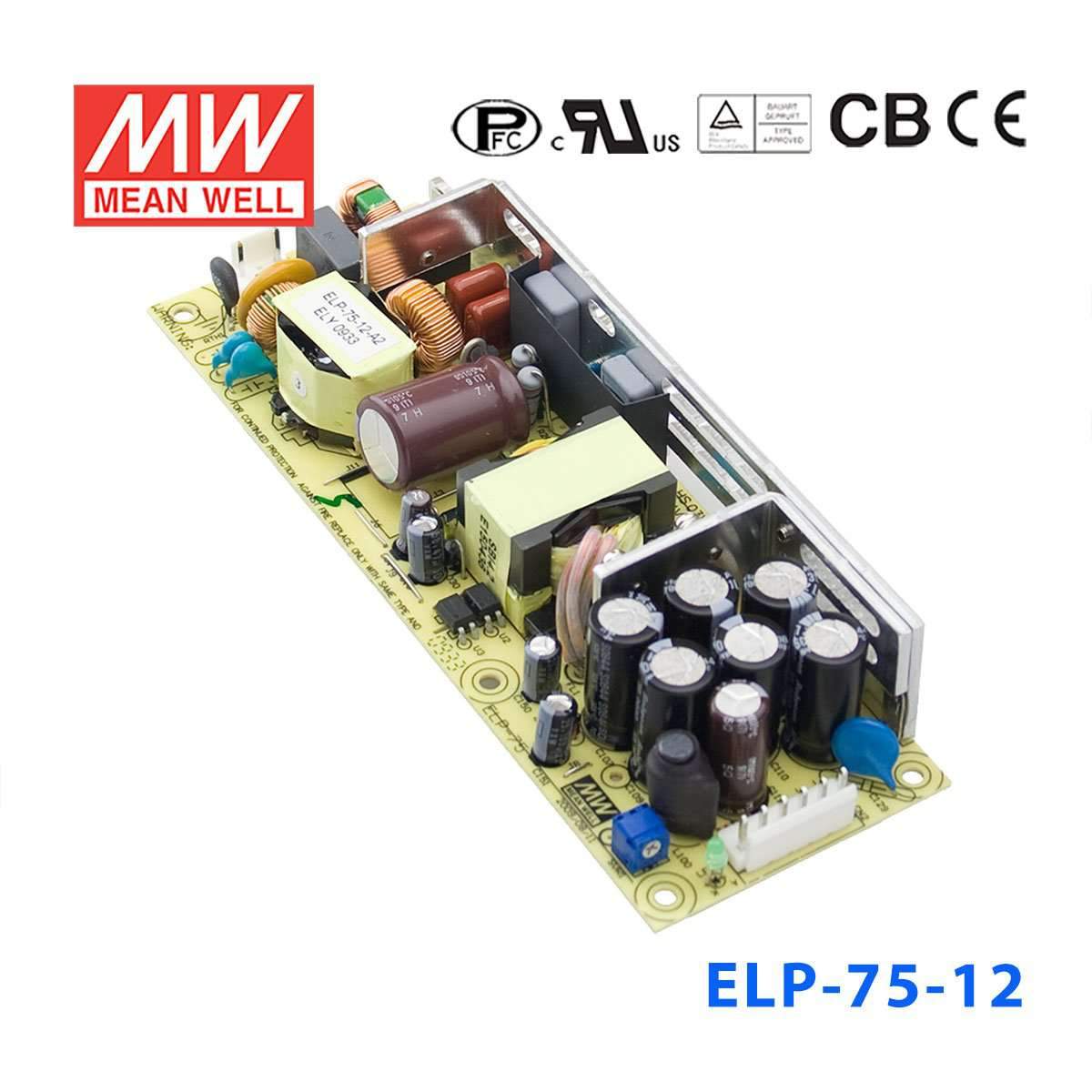

Mean Well ELP-75-12 Power Supply 75W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-12 Power Supply 75W 12V
The ELP-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.36 in
-
Height1.06 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
Can I use the ELP-75-12 for a 12V industrial control panel?
Yes, this model is a constant voltage 12V supply with up to 6.25A output and 75W total power. That makes it suitable for 12V control-panel loads such as relays, interface modules, indicators, or other 12V automation devices that stay within those ratings.
Is the ELP-75-12 suitable for 12V embedded or IPC systems?
It can be used for 12V embedded equipment, compact industrial PCs, or edge devices that require a regulated 12V constant voltage source. The key sizing limits are 12V output, 6.25A maximum current, and 75W maximum power.
Can this power supply run 12V LED signage or low-voltage lighting loads?
Yes, it is appropriate for 12V constant voltage lighting loads such as LED signage or similar 12V low-voltage systems when the total load does not exceed 6.25A or 75W. It is not the right choice for systems that need a higher output voltage than 12V.
Will the ELP-75-12 work in a low-profile 1U equipment space?
It is designed as a 1U low-profile power supply and measures 175.0 x 60.0 x 27.0 mm. That compact form factor can make it a practical option for low-clearance industrial, embedded, or IT enclosures where a 12V, 75W supply is needed.
Is the ELP-75-12 suitable for outdoor or harsh-environment use?
The operating temperature range is -30 degrees C to +70 degrees C, so its temperature tolerance is broad. However, no IP rating is listed in the provided specs, so indoor or outdoor suitability should not be assumed from this data alone.
How does the ELP-75-12 compare with the other ELP-75 series models?
Within the series, the 12V versions are ELP-75-12 and ELP-75-12-C at 75W and 6.25A; the 15V versions are ELP-75-15 and ELP-75-15-C at 75W and 5A; the 24V versions are ELP-75-24 and ELP-75-24-C at 75.6W and 3.15A. The 36V versions are ELP-75-36 and ELP-75-36-C at 75.6W and 2.1A, the 48V versions are ELP-75-48 and ELP-75-48-C at 76.8W and 1.6A, the 5V versions are ELP-75-5 and ELP-75-5-C at 75W and 15A, and the 3.3V versions are ELP-75-3.3 and ELP-75-3.3-C at 49.5W and 15A. Compared with those siblings, this model is the 12V, 75W, 6.25A option in the series.
