Mean Well ELP-75-15-C Power Supply 75W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours

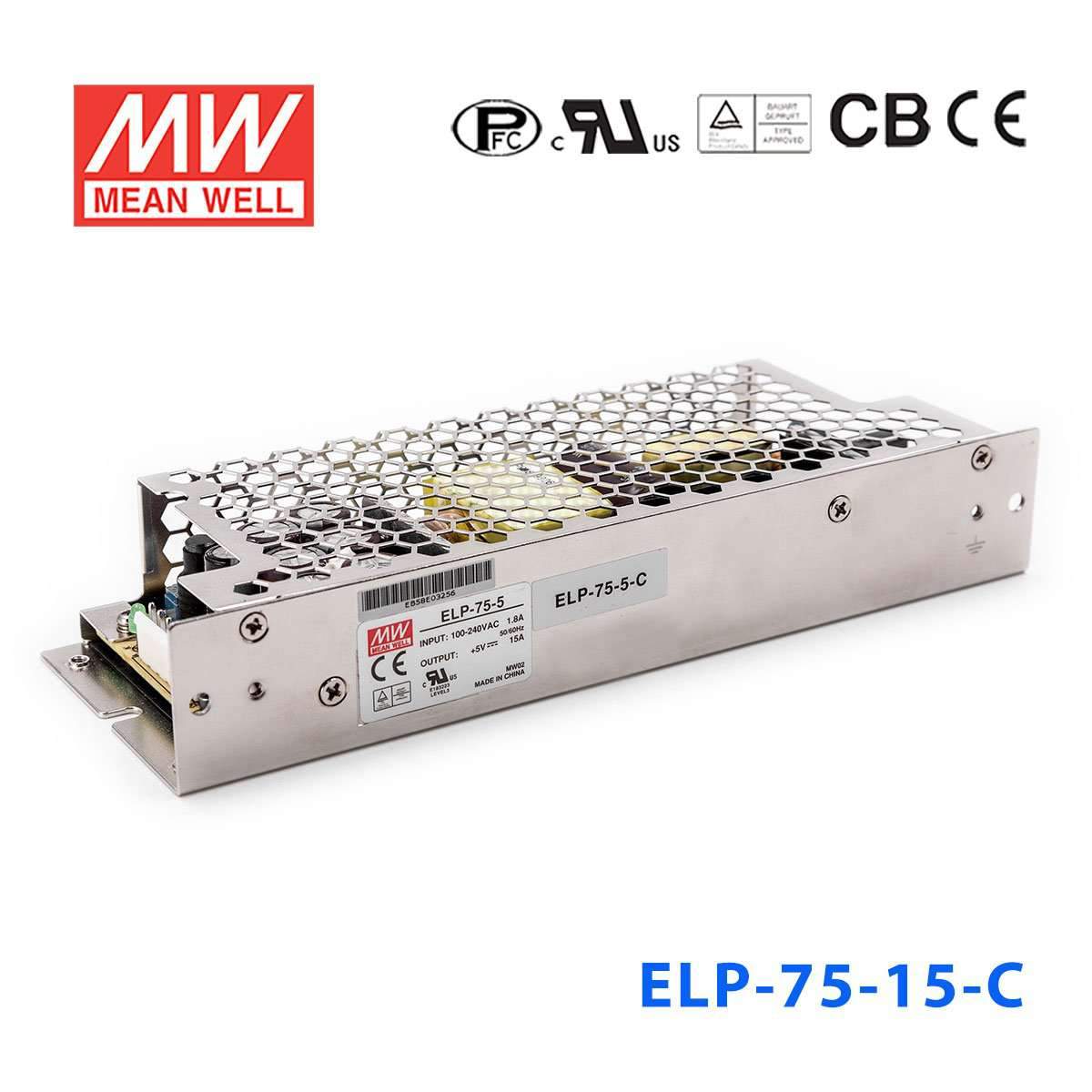

Mean Well ELP-75-15-C Power Supply 75W 15V
The ELP-75-15 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.68 in
-
Width2.7 in
-
Height1.3 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can I use the ELP-75-15-C to power a 15V HMI, panel device, or industrial display?
Yes, if the equipment requires constant-voltage 15V DC and the total load stays within 75W and 5A. That makes it appropriate for 15V industrial panel devices, displays, or HMIs built around a 15V input requirement.
Is the ELP-75-15-C a fit for 15V automation electronics in OEM equipment?
It is suitable for OEM automation electronics that are specified for 15V constant-voltage input. The unit provides up to 5A at 15V, with 90-264VAC input, which supports use across a broad AC input range.
Can this model support 15V industrial sensing or monitoring hardware?
Yes, it can support 15V sensing, monitoring, or control hardware when the total demand does not exceed 5A or 75W. The constant-voltage design is appropriate for electronics that expect a stable 15V DC supply rather than a constant-current driver.
How does the ELP-75-15-C compare with other ELP-75 output options?
The listed family includes 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A. This ELP-75-15-C is one of the 15V members, rated at 75W and 5A.
Can the ELP-75-15-C be used in cold or hot industrial environments?
The specified operating range is -30°C to +70°C, so it is rated for both low-temperature and elevated-temperature operation within that span. The provided specs do not include an IP rating, so indoor versus exposed outdoor use cannot be confirmed from these details alone.
