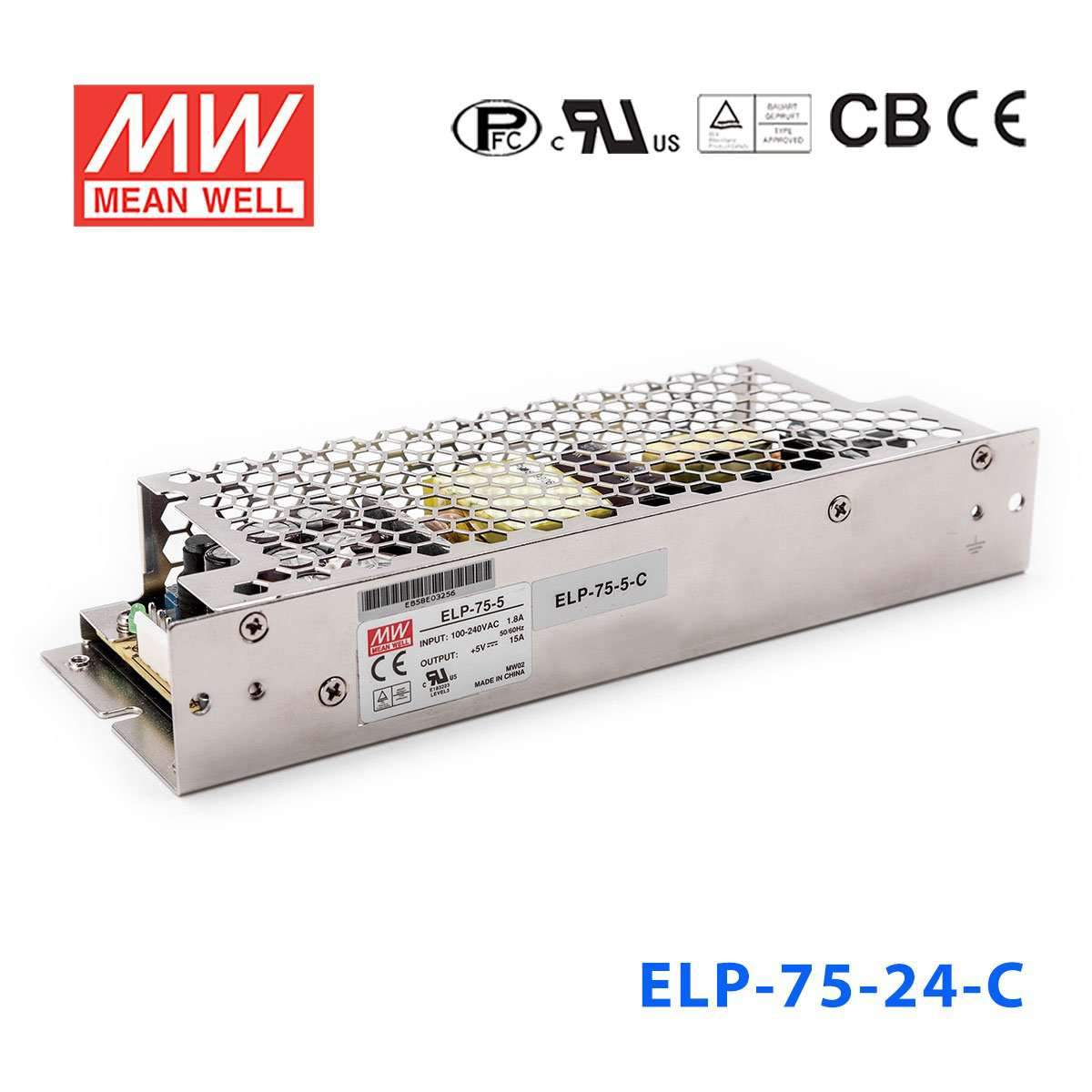

Mean Well ELP-75-24-C Power Supply 75W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-24-C Power Supply 75W 24V
The ELP-75-24 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating75.6 Watt
-
Output Voltage24 Volt
-
Rated Current3.15 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.68 in
-
Width2.7 in
-
Height1.3 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can the ELP-75-24-C be used for 24V machine control electronics?
Yes, it is a constant-voltage 24V power supply with 75.6W total output and 3.15A available current. That makes it suitable for 24V machine control electronics that require regulated 24V DC within those limits.
Is this a good fit for 24V automation panels or monitoring equipment?
It is suitable when the panel or monitoring equipment is designed for 24V DC input and does not exceed 3.15A. The unit accepts 90-264VAC input, which is useful in industrial environments with different AC mains standards.
Can I use the ELP-75-24-C for 24V industrial networking or control modules?
Yes, for 24V industrial networking or control modules that need a constant-voltage supply. The power budget is 75.6W, so the total connected 24V load must stay at or below 3.15A.
What output choices exist in the ELP-75 family besides the ELP-75-24-C?
The listed siblings cover 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A. The ELP-75-24-C is the 24V option rated at 75.6W and 3.15A.
Can this model be used in unheated spaces or warmer industrial enclosures?
The specified operating temperature range is -30°C to +70°C, so it is rated for both cold and warm operating conditions within that span. The supplied specs do not provide an IP rating, so exposed outdoor or wet-location suitability is not defined here.
