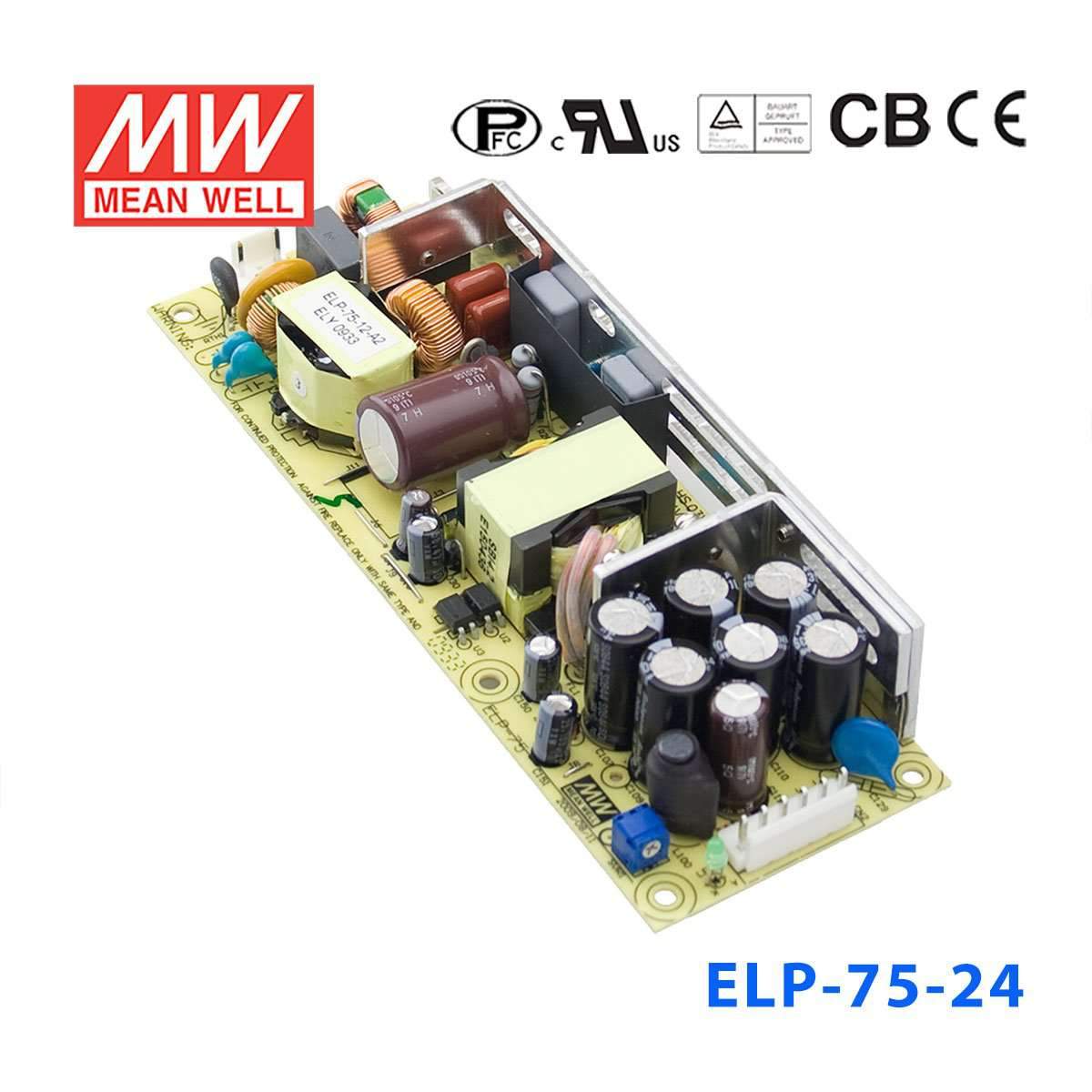

Mean Well ELP-75-24 Power Supply 75W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-24 Power Supply 75W 24V
The ELP-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating75.6 Watt
-
Output Voltage24 Volt
-
Rated Current3.15 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.36 in
-
Height1.06 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
Can I use the ELP-75-24 for 24V PLC accessories or industrial I/O hardware?
Yes, this is a constant-voltage 24V supply rated for 75.6W and 3.15A. It is appropriate for 24V PLC accessories, I/O hardware, or control electronics that require 24V DC and stay within the 3.15A output limit.
Is the ELP-75-24 suitable for 24V industrial sensors and automation devices?
It can be used with 24V automation devices, sensors, or control modules that are designed for constant-voltage 24V input. Available output is 3.15A, with total power up to 75.6W.
Can this 24V model power embedded control systems or industrial communication equipment?
Yes, if the embedded control or communications equipment is specified for 24V DC input and the load remains within 75.6W and 3.15A. The 90-264VAC input also supports use where AC input conditions vary across regions or facilities.
How does the ELP-75-24 differ from other ELP-75 series power supplies?
The sibling range includes 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A. This model is the 24V, 75.6W, 3.15A version.
Is the ELP-75-24 rated for outdoor use or wide-temperature operation?
Its operating temperature range is -30°C to +70°C, which supports use in a wide temperature span. No IP rating is listed in the provided specifications, so outdoor exposure or water-resistant use is not confirmed here.
