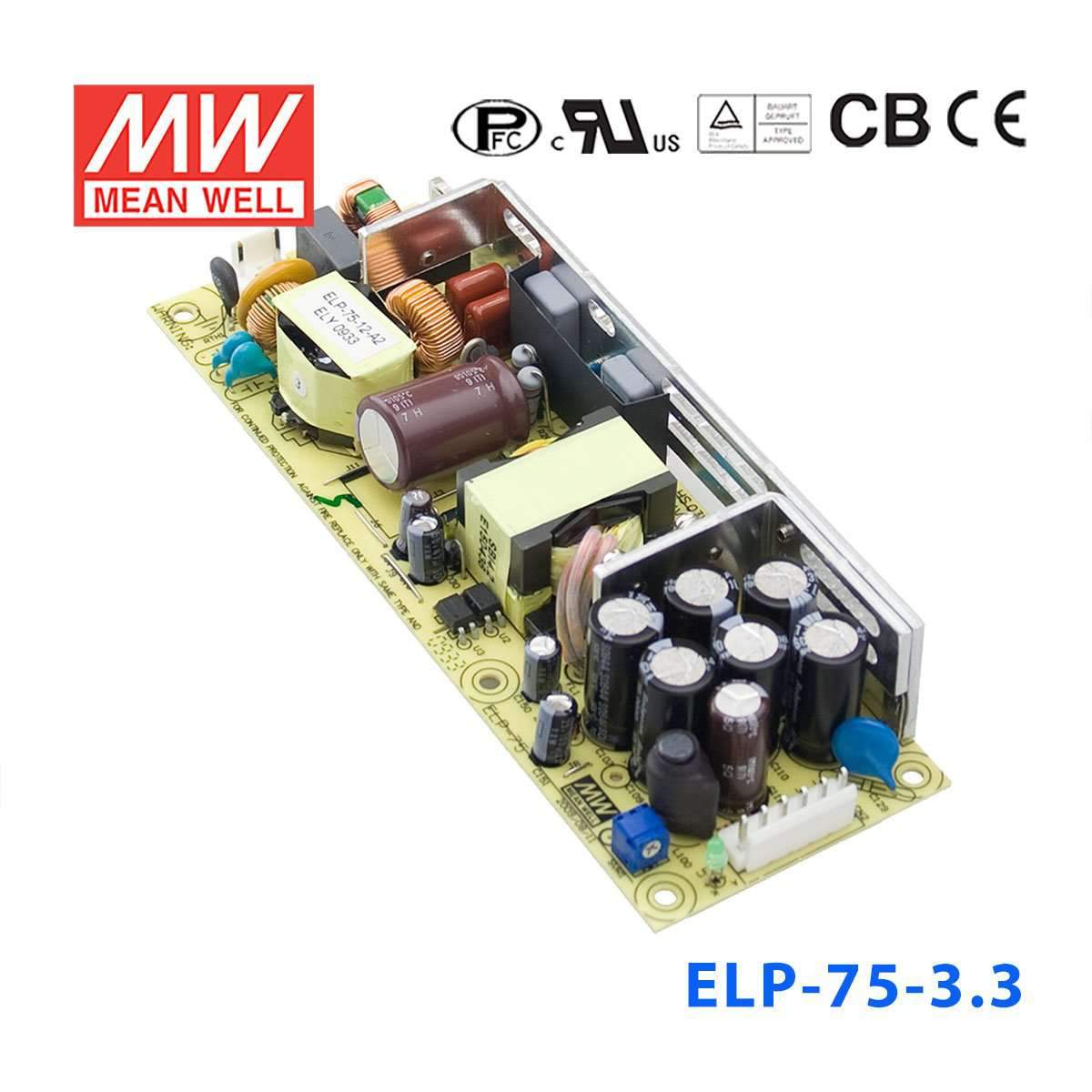

Mean Well ELP-75-3.3 Power Supply 49W 3.3V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-3.3 Power Supply 49W 3.3V
The ELP-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating49.5 Watt
-
Output Voltage3.3 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.36 in
-
Height1.06 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
Can I use the ELP-75-3.3 for 3.3V embedded processors or industrial logic boards?
Yes, this model is a constant-voltage 3.3V supply rated for 49.5W and 15A. It fits embedded processors, industrial logic boards, or digital electronics that require a regulated 3.3V source and stay within the 15A limit.
Is the ELP-75-3.3 suitable for powering 3.3V FPGA, MCU, or SBC-based systems?
It can be used for 3.3V FPGA, MCU, or SBC-based systems when the load is designed for constant-voltage 3.3V input. The available output is high current at 15A, with total power up to 49.5W.
Can this power supply support 3.3V industrial communication or control electronics?
Yes, for 3.3V communication, control, or data-processing electronics that need a stable 3.3V DC rail. The unit provides up to 15A output current, which is useful where lower voltage electronics draw comparatively higher current.
How does the ELP-75-3.3 compare with other ELP-75 models?
In the listed series, outputs include 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A. This ELP-75-3.3 is the lowest-voltage option shown, with 49.5W output and 15A current.
Is the ELP-75-3.3 appropriate for outdoor use or temperature-sensitive environments?
The operating temperature range is specified at -30°C to +70°C, so the unit is rated for a broad temperature window. No IP rating is included in the provided specs, so outdoor, splash, or dust-exposed suitability is not established by this data.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other ELP-75 Models
13 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ELP-75-5-C Power Supply 75W 5V | 75W | 5V | 15A | Indoor | $41.04 | View |
| Mean Well ELP-75-5 Power Supply 75W 5V | 75W | 5V | 15A | Indoor | $33.38 | View |
| Mean Well ELP-75-48-C Power Supply 76W 48V | 76.8W | 48V | 1.6A | Indoor | $34.64 | View |
| Mean Well ELP-75-48 Power Supply 76W 48V | 76.8W | 48V | 1.6A | Indoor | $33.38 | View |
| Mean Well ELP-75-36-C Power Supply 75W 36V | 75.6W | 36V | 2.1A | Indoor | $34.64 | View |
| Mean Well ELP-75-36 Power Supply 75W 36V | 75.6W | 36V | 2.1A | Indoor | $33.38 | View |
| Mean Well ELP-75-3.3-C Power Supply 49W 3.3V | 49.5W | 3.3V | 15A | Indoor | $34.64 | View |
| Mean Well ELP-75-24-C Power Supply 75W 24V | 75.6W | 24V | 3.15A | Indoor | $41.04 | View |
| Mean Well ELP-75-24 Power Supply 75W 24V | 75.6W | 24V | 3.15A | Indoor | $33.38 | View |
| Mean Well ELP-75-15-C Power Supply 75W 15V | 75W | 15V | 5A | Indoor | $34.64 | View |
| Mean Well ELP-75-15 Power Supply 75W 15V | 75W | 15V | 5A | Indoor | $33.38 | View |
| Mean Well ELP-75-12-C Power Supply 75W 12V | 75W | 12V | 6.25A | Indoor | $34.64 | View |
| Mean Well ELP-75-12 Power Supply 75W 12V | 75W | 12V | 6.25A | Indoor | $33.38 | View |
