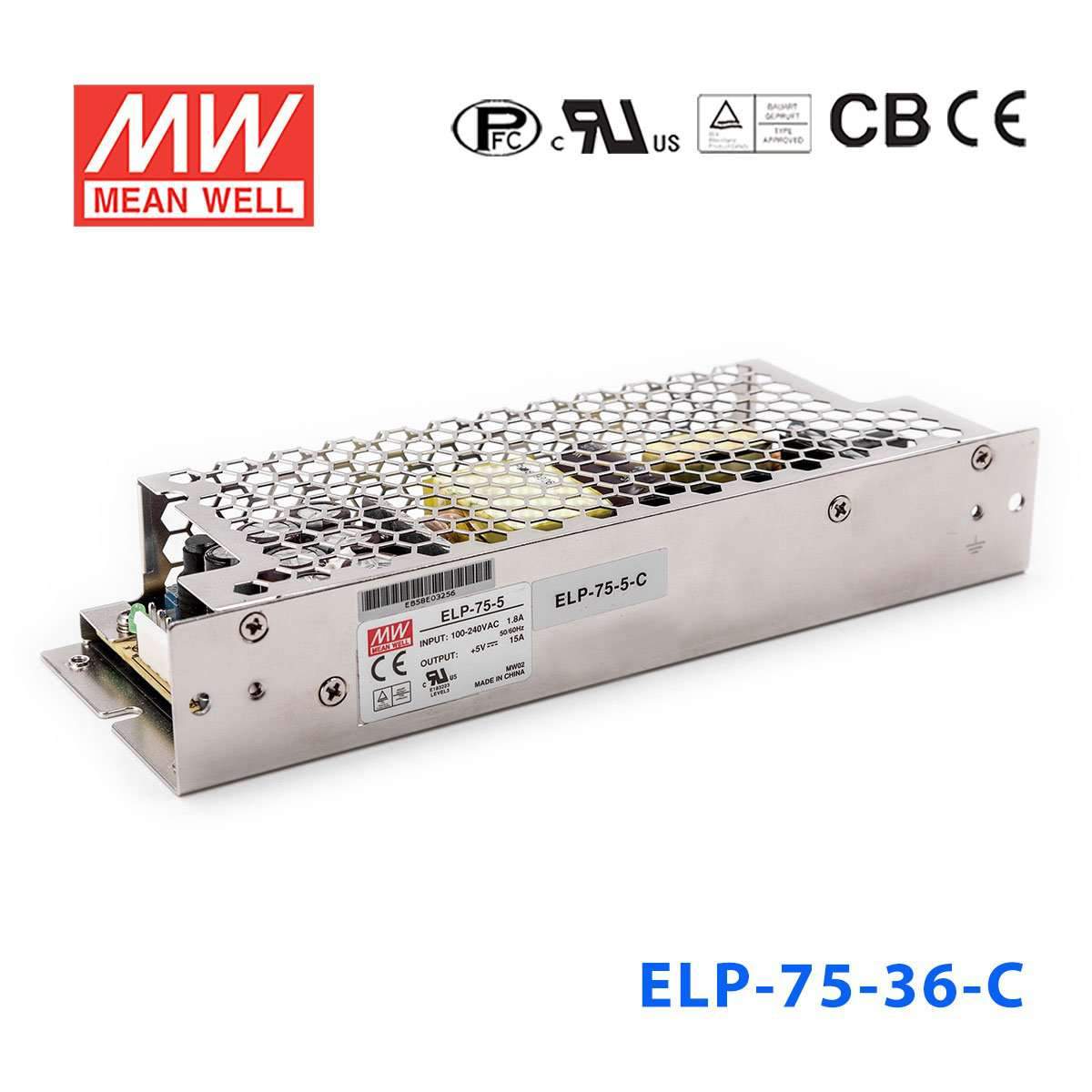

Mean Well ELP-75-36-C Power Supply 75W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-36-C Power Supply 75W 36V
The ELP-75-36 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating75.6 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.68 in
-
Width2.7 in
-
Height1.3 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can the ELP-75-36-C power 36V automation components that need a regulated DC supply?
Yes, it is a constant voltage 36V power supply rated for up to 2.1A and 75.6W. That makes it suitable for automation and industrial electronics designed for a steady 36V DC input within those limits.
Is this 36V model appropriate for industrial electronics with universal AC input requirements?
It accepts 90-264VAC input, which supports use across a wide AC input range. On the DC side, the load still needs to match the unit's 36V constant voltage output and remain within 2.1A and 75.6W.
Can I use the ELP-75-36-C for 36V systems where a low-profile power supply is preferred?
Yes, it is described as a 1U low-profile model and measures 195.0 x 68.5 x 33.0 mm. It is intended for constant voltage 36V applications that fit within its 2.1A and 75.6W output capability.
Is the ELP-75-36-C intended for outdoor equipment exposure?
The specs provide an operating temperature range of -30°C to +70°C, but no IP rating is listed. That means the temperature range is defined, while outdoor exposure or water-ingress suitability is not established by the provided specifications.
How does the ELP-75-36-C compare with the other ELP-75 series outputs?
Across the sibling series, the output options listed are 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A. This model is the 36V C-version and has the same 75.6W and 2.1A rating as the ELP-75-36.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other ELP-75 Models
13 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ELP-75-5-C Power Supply 75W 5V | 75W | 5V | 15A | Indoor | $41.04 | View |
| Mean Well ELP-75-5 Power Supply 75W 5V | 75W | 5V | 15A | Indoor | $33.38 | View |
| Mean Well ELP-75-48-C Power Supply 76W 48V | 76.8W | 48V | 1.6A | Indoor | $34.64 | View |
| Mean Well ELP-75-48 Power Supply 76W 48V | 76.8W | 48V | 1.6A | Indoor | $33.38 | View |
| Mean Well ELP-75-36 Power Supply 75W 36V | 75.6W | 36V | 2.1A | Indoor | $33.38 | View |
| Mean Well ELP-75-3.3-C Power Supply 49W 3.3V | 49.5W | 3.3V | 15A | Indoor | $34.64 | View |
| Mean Well ELP-75-3.3 Power Supply 49W 3.3V | 49.5W | 3.3V | 15A | Indoor | $33.38 | View |
| Mean Well ELP-75-24-C Power Supply 75W 24V | 75.6W | 24V | 3.15A | Indoor | $41.04 | View |
| Mean Well ELP-75-24 Power Supply 75W 24V | 75.6W | 24V | 3.15A | Indoor | $33.38 | View |
| Mean Well ELP-75-15-C Power Supply 75W 15V | 75W | 15V | 5A | Indoor | $34.64 | View |
| Mean Well ELP-75-15 Power Supply 75W 15V | 75W | 15V | 5A | Indoor | $33.38 | View |
| Mean Well ELP-75-12-C Power Supply 75W 12V | 75W | 12V | 6.25A | Indoor | $34.64 | View |
| Mean Well ELP-75-12 Power Supply 75W 12V | 75W | 12V | 6.25A | Indoor | $33.38 | View |
