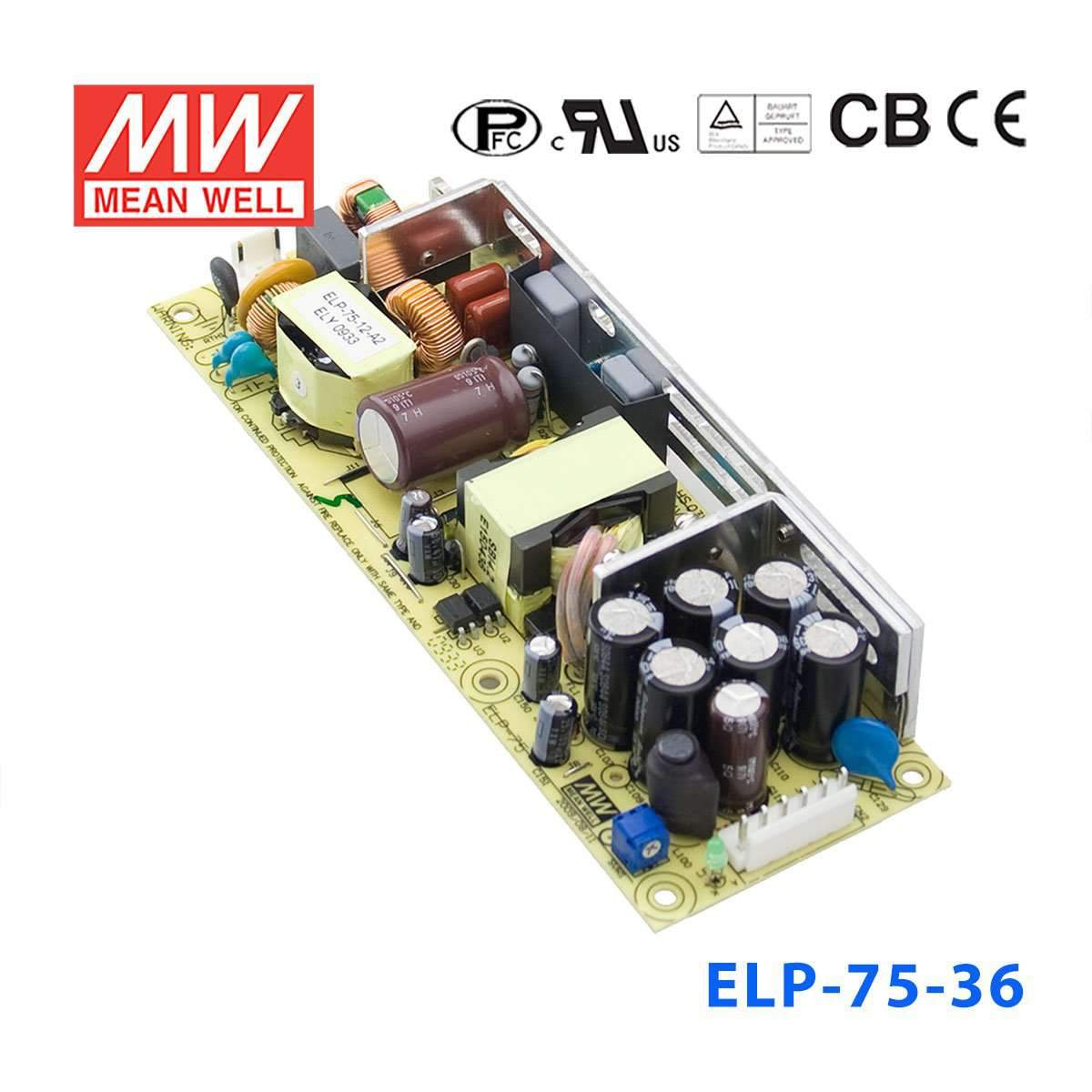

Mean Well ELP-75-36 Power Supply 75W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-36 Power Supply 75W 36V
The ELP-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating75.6 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.36 in
-
Height1.06 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
Can I use the ELP-75-36 for 36V industrial control or automation equipment?
Yes, this unit provides constant voltage 36V output up to 2.1A, with a total power rating of 75.6W. It is suited to industrial or automation devices that require a regulated 36V DC source within those limits.
Is the ELP-75-36 suitable for 36V embedded or motion-related electronics that need a constant voltage supply?
It can be used where the equipment is specified for constant voltage 36V input and draws no more than 2.1A or 75.6W. The wide 90-264VAC input is also useful in systems that must accept a broad AC input range.
Can this power supply be used for 36V devices in compact control cabinets?
It is built in a 1U low-profile format and measures 175.0 x 60.0 x 27.0 mm. That makes it a practical option for 36V DC loads in control enclosures where space is limited and the load stays within 2.1A and 75.6W.
Can the ELP-75-36 be used in cold or hot indoor equipment spaces?
The specified operating temperature range is -30°C to +70°C, so the temperature capability is broad for indoor equipment environments. The provided specs do not list an IP rating, so exposed outdoor suitability is not confirmed by the data shown.
What is the difference between the ELP-75-36 and the other ELP-75 voltage models?
The sibling range includes 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A, with C and non-C versions listed for each except where noted. The ELP-75-36 is one of the 36V models and matches the ELP-75-36-C at 75.6W and 2.1A.
