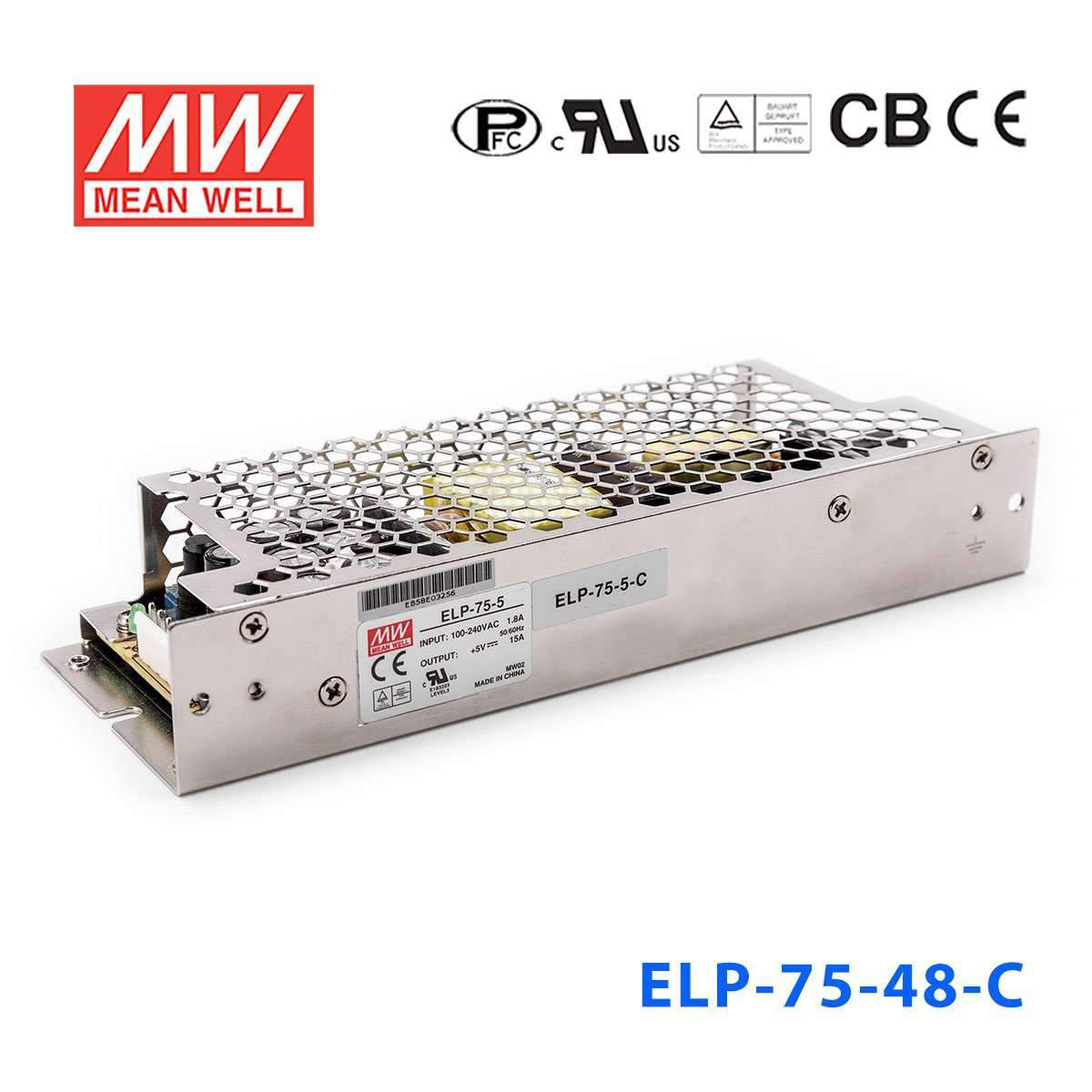

Mean Well ELP-75-48-C Power Supply 76W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-48-C Power Supply 76W 48V
The ELP-75-48 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating76.8 Watt
-
Output Voltage48 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.68 in
-
Width2.7 in
-
Height1.3 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can the ELP-75-48-C power 48V automation or industrial electronics?
Yes, it provides constant voltage 48V output up to 1.6A, with a total power rating of 76.8W. That makes it suitable for industrial, automation, and embedded systems that are specified for regulated 48V DC within those limits.
Is this a good option for 48V control hardware that runs from a wide AC input range?
It accepts 90-264VAC input, which supports installations that need broad AC input compatibility. The connected load must still be a 48V constant voltage device and stay within 1.6A and 76.8W.
Can I use the ELP-75-48-C where enclosure height and profile matter?
This model is described as 1U low profile and measures 195.0 x 68.5 x 33.0 mm. It is suited to 48V applications in tighter equipment spaces when the required load is no more than 1.6A and 76.8W.
Is the ELP-75-48-C suitable for outdoor installations or exposed environments?
The supplied specifications show an operating temperature range of -30°C to +70°C, but they do not provide an IP rating. Based on that information, temperature capability is defined, while exposed outdoor suitability is not.
What are the voltage and output differences across the ELP-75 family compared with the ELP-75-48-C?
The sibling models listed are 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A, with C and non-C versions across the series. The ELP-75-48-C is one of the 48V versions and shares its 76.8W and 1.6A rating with the ELP-75-48.
