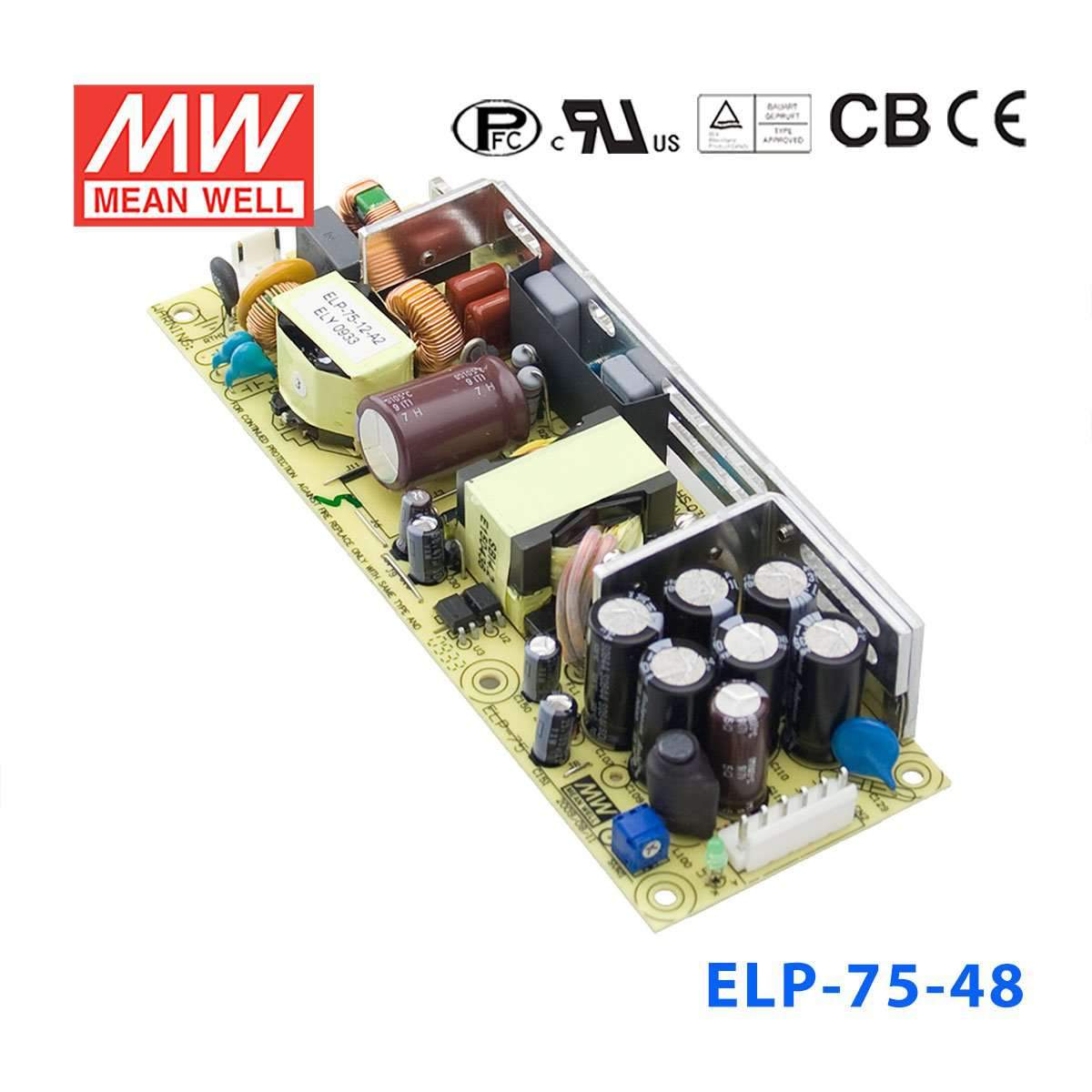

Mean Well ELP-75-48 Power Supply 76W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-48 Power Supply 76W 48V
The ELP-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating76.8 Watt
-
Output Voltage48 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.36 in
-
Height1.06 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
Can I use the ELP-75-48 for 48V industrial control or automation devices?
Yes, this is a constant voltage 48V power supply rated for up to 1.6A and 76.8W. It is appropriate for industrial and automation equipment that is designed for regulated 48V DC input within those output limits.
Is the ELP-75-48 a fit for 48V telecom or networking equipment that needs DC power?
It can be used where the equipment requires constant voltage 48V and the load does not exceed 1.6A or 76.8W. The 90-264VAC input is also useful where wide-range AC input compatibility is needed.
Can this model be used in compact cabinets for 48V embedded or industrial electronics?
Yes, the ELP-75-48 uses a 1U low-profile design and measures 175.0 x 60.0 x 27.0 mm. That supports use in tighter equipment spaces as long as the 48V load stays within 1.6A and 76.8W.
Will the ELP-75-48 handle harsh temperature conditions indoors?
The operating temperature range is specified as -30°C to +70°C, which covers a broad temperature span for indoor electrical equipment. The provided specifications do not include an IP rating, so outdoor or wet-location suitability is not confirmed here.
How does the ELP-75-48 differ from the other ELP-75 series models?
The series includes 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A, with both C and non-C versions listed across the range. The ELP-75-48 is the 48V non-C option and matches the ELP-75-48-C at 76.8W and 1.6A.
