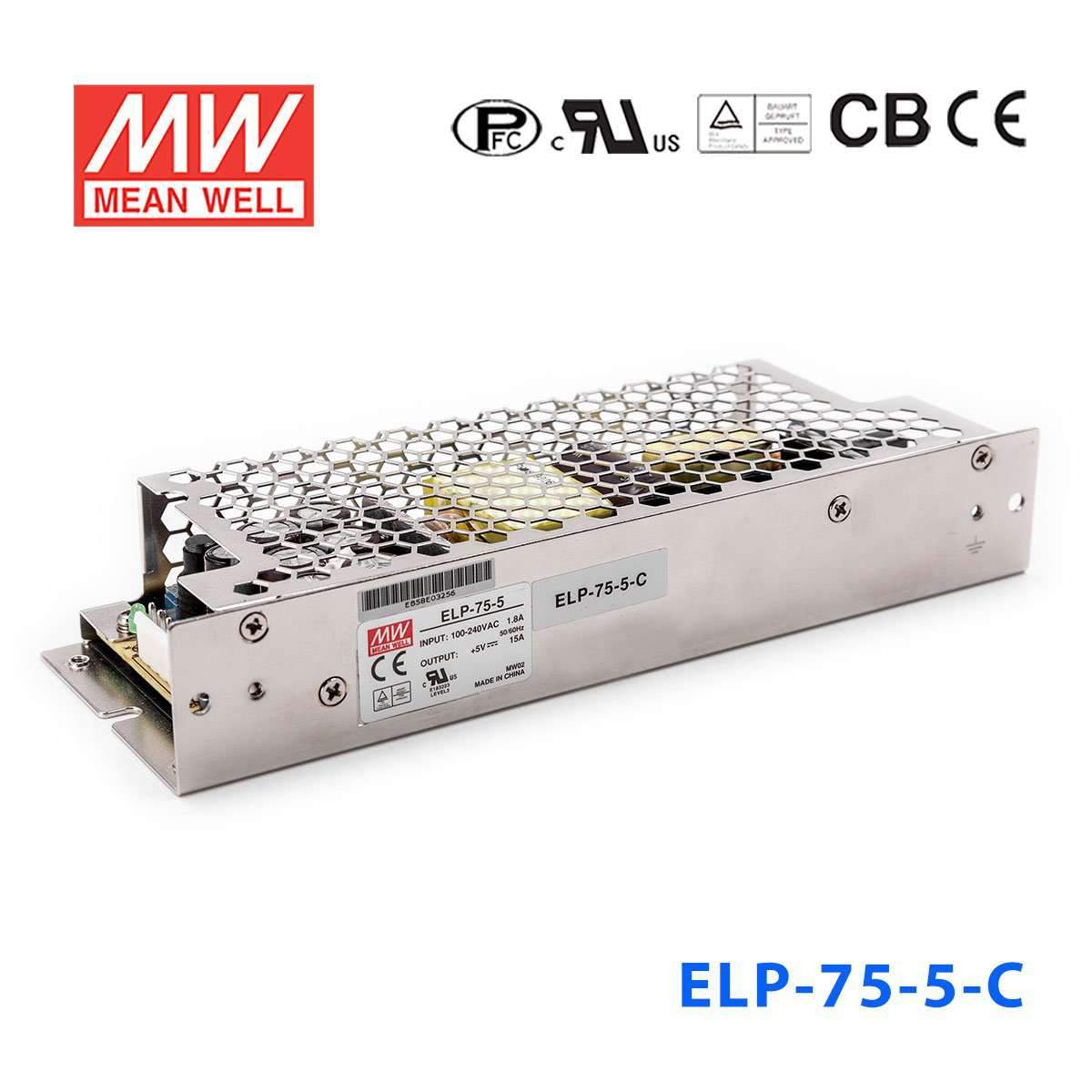

Mean Well ELP-75-5-C Power Supply 75W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-5-C Power Supply 75W 5V
The ELP-75-5 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating75 Watt
-
Output Voltage5 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.68 in
-
Width2.7 in
-
Height1.3 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can the ELP-75-5-C power a 5V embedded control assembly with several boards on one supply?
Yes, if the assembly needs constant 5V and the total demand stays within 75W and 15A. That makes it usable for embedded control stacks, processing boards, and other 5V electronics that need higher current from one source.
Is the ELP-75-5-C a good fit for 5V automation devices inside equipment enclosures?
It fits 5V automation loads such as control electronics, communication boards, and low-voltage peripherals when the load does not exceed 15A. Its 195.0 x 68.5 x 33.0 mm size should still be checked against the available enclosure space.
Can I use this 5V 75W model for high-current logic or processor loads in industrial equipment?
It is intended for constant-voltage 5V loads and provides up to 15A, so it can support higher-current logic or processor-based equipment within the 75W rating. The 90-264VAC input also supports use across a broad AC input range.
Can the ELP-75-5-C be used in cold or hot environments?
The stated operating temperature range is -30C to +70C. No IP rating is listed in the provided specs, so temperature range is defined but indoor versus outdoor exposure is not confirmed here.
What is the difference between the ELP-75-5-C and the other ELP-75 output options?
The ELP-75-5-C matches the ELP-75-5 at 75W, 5V, 15A, while the ELP-75-3.3 and ELP-75-3.3-C are 49.5W, 3.3V, 15A. Other siblings are ELP-75-12 and ELP-75-12-C at 75W, 12V, 6.25A; ELP-75-15 and ELP-75-15-C at 75W, 15V, 5A; ELP-75-24 and ELP-75-24-C at 75.6W, 24V, 3.15A; ELP-75-36 and ELP-75-36-C at 75.6W, 36V, 2.1A; and ELP-75-48 and ELP-75-48-C at 76.8W, 48V, 1.6A.
