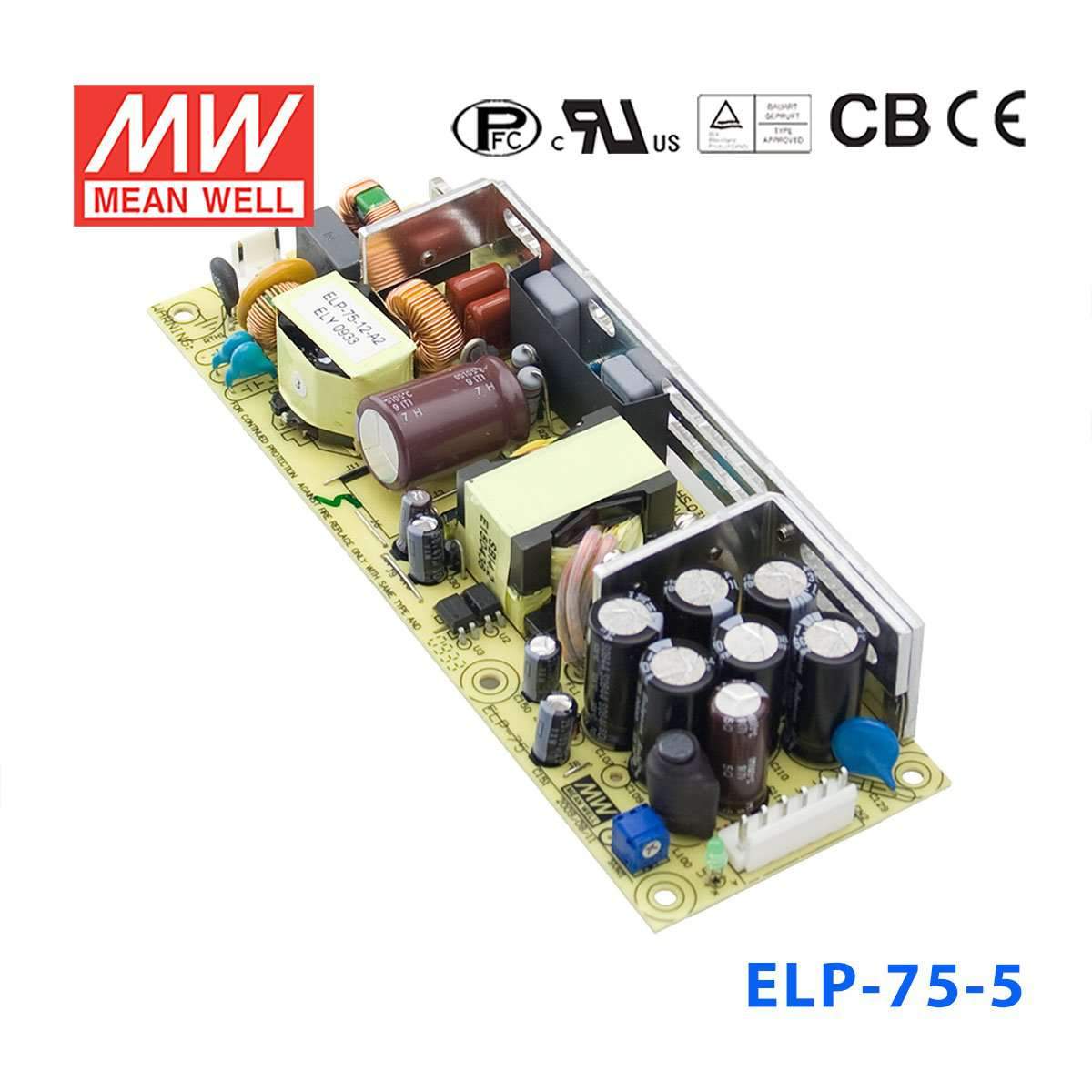

Mean Well ELP-75-5 Power Supply 75W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELP-75-5 Power Supply 75W 5V
The ELP-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELP Series
-
Power Rating75 Watt
-
Output Voltage5 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.36 in
-
Height1.06 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
Can I use the ELP-75-5 for a 5V industrial controller or PLC accessory load?
Yes, if the equipment requires a constant 5V supply and the total load stays within 75W and 15A. That makes it a fit for 5V industrial control electronics, interface boards, and similar low-voltage automation loads that need higher current.
Is the ELP-75-5 suitable for powering embedded computers or multiple 5V logic devices in one system?
It can be used where several 5V embedded devices share one constant-voltage source, as long as the combined draw does not exceed 15A or 75W. The wide 90-264VAC input also helps when the same design is used across different AC input ranges.
Can this power supply run 5V HMI panels, sensors, or communication modules in an automation cabinet?
It is appropriate for 5V automation peripherals that need constant voltage and fit within the 15A output current limit. For cabinet builds, the 1U low-profile form factor and 175.0 x 60.0 x 27.0 mm size can also matter where vertical space is limited.
Is the ELP-75-5 okay for outdoor or harsh-area use?
The published operating temperature range is -30C to +70C, but no IP rating is listed in the provided specs. That means temperature capability is stated, while outdoor or washdown suitability cannot be confirmed from these specs alone.
How does the ELP-75-5 compare with the other ELP-75 models?
Within the ELP-75 family, the 5V versions are ELP-75-5 and ELP-75-5-C at 75W, 5V, 15A, while the 3.3V versions are ELP-75-3.3 and ELP-75-3.3-C at 49.5W, 3.3V, 15A. The 12V models are ELP-75-12 and ELP-75-12-C at 75W, 12V, 6.25A; the 15V models are ELP-75-15 and ELP-75-15-C at 75W, 15V, 5A; the 24V models are ELP-75-24 and ELP-75-24-C at 75.6W, 24V, 3.15A; the 36V models are ELP-75-36 and ELP-75-36-C at 75.6W, 36V, 2.1A; and the 48V models are ELP-75-48 and ELP-75-48-C at 76.8W, 48V, 1.6A.
