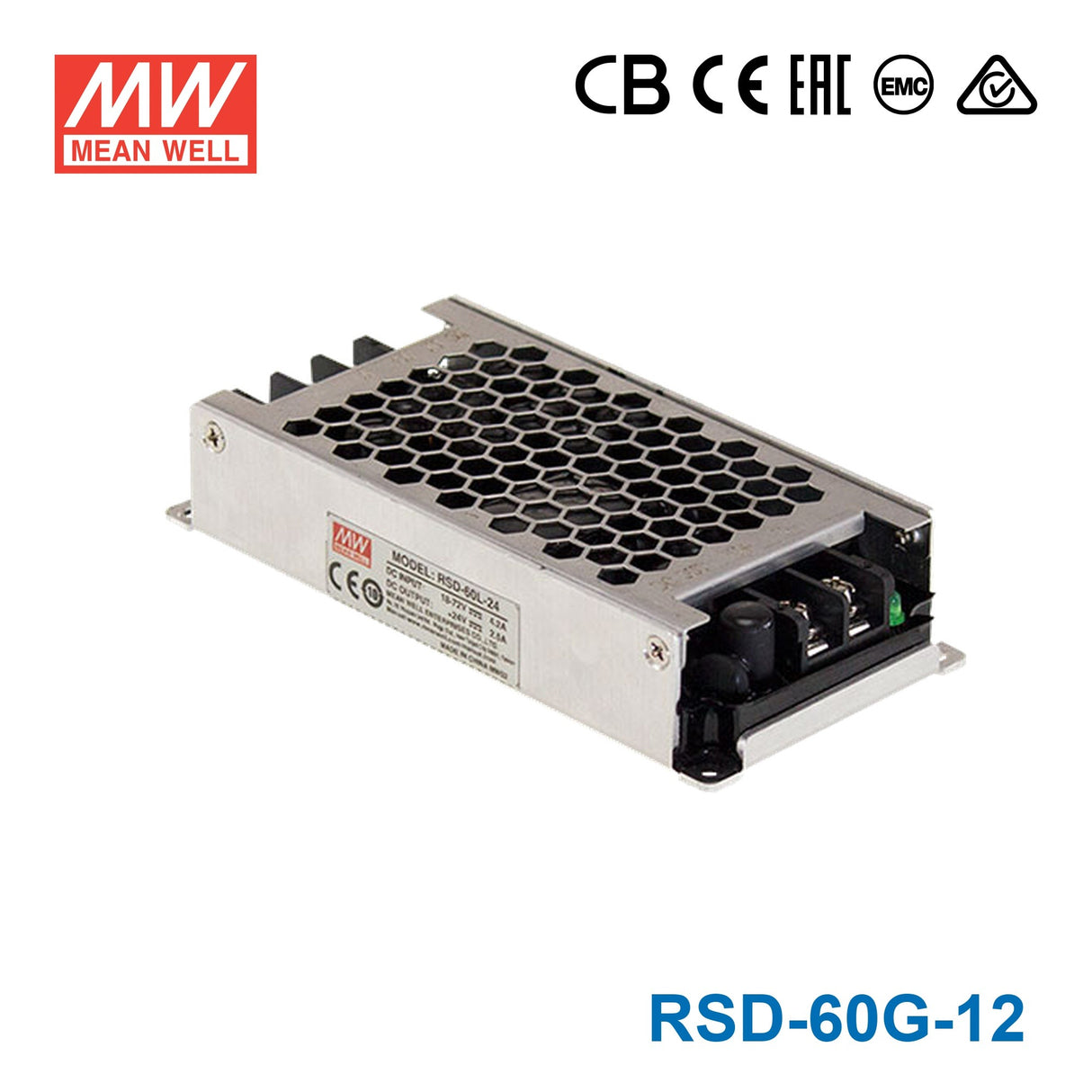

Mean Well RSD-60G-12 DC-DC Converter - 30W - 9~36V in 12V out 5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-60G-12 DC-DC Converter - 30W - 9~36V in 12V out 5A
The RSD-60G is a 60W Mean Well power converter (input range: 9~36VDC).
Key Features
- ✓ Input voltage range: 9~36VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length5.04 in
-
Width2.36 in
-
Height0.98 in
-
Weight0.64 lb
::specification::
Frequently Asked Questions
Can I use the RSD-60G-12 to power a 12V embedded controller from a vehicle or battery system?
Yes. It delivers a constant 12V output at up to 5A with 30W total power, and the listed input range is 9-36VAC. That makes it a fit for compact 12V electronics that need regulated output within those limits.
Is the RSD-60G-12 suitable for a small 12V industrial sensor or I/O module group?
It can support small 12V industrial loads when the combined demand stays within 5A and 30W. Because it is a constant-voltage model, it is intended for equipment that expects a regulated 12V supply.
Can this model be used in compact automation panels where space is limited?
Yes. The housing is 128.0 × 60.0 × 25.0 mm and the unit weighs 0.29 kg, so it is sized for smaller enclosures. It is still limited to 12V output, 5A current, and 30W total power.
Would the RSD-60G-12 work in mobile or vibration-prone embedded equipment?
It is specified to withstand 5G vibration, which is useful in moving or mechanically stressed equipment. The operating temperature range is -40°C to +70°C, so it is also rated for wide temperature conditions.
Is the RSD-60G-12 appropriate for outdoor use?
The temperature spec is -40°C to +70°C, which supports demanding ambient conditions. No IP rating is listed in the provided specs, so exposed outdoor use should be treated as requiring a protective enclosure.
