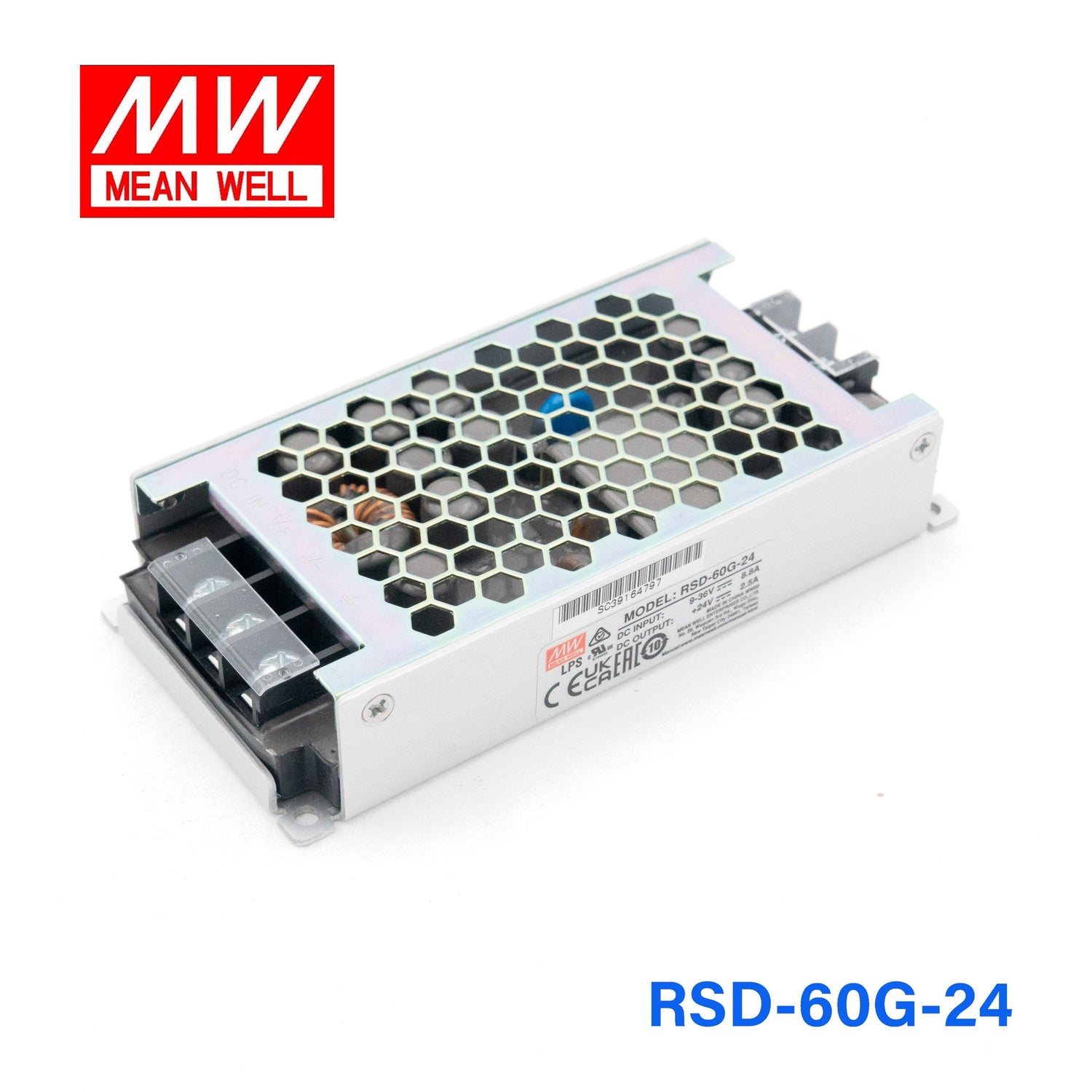

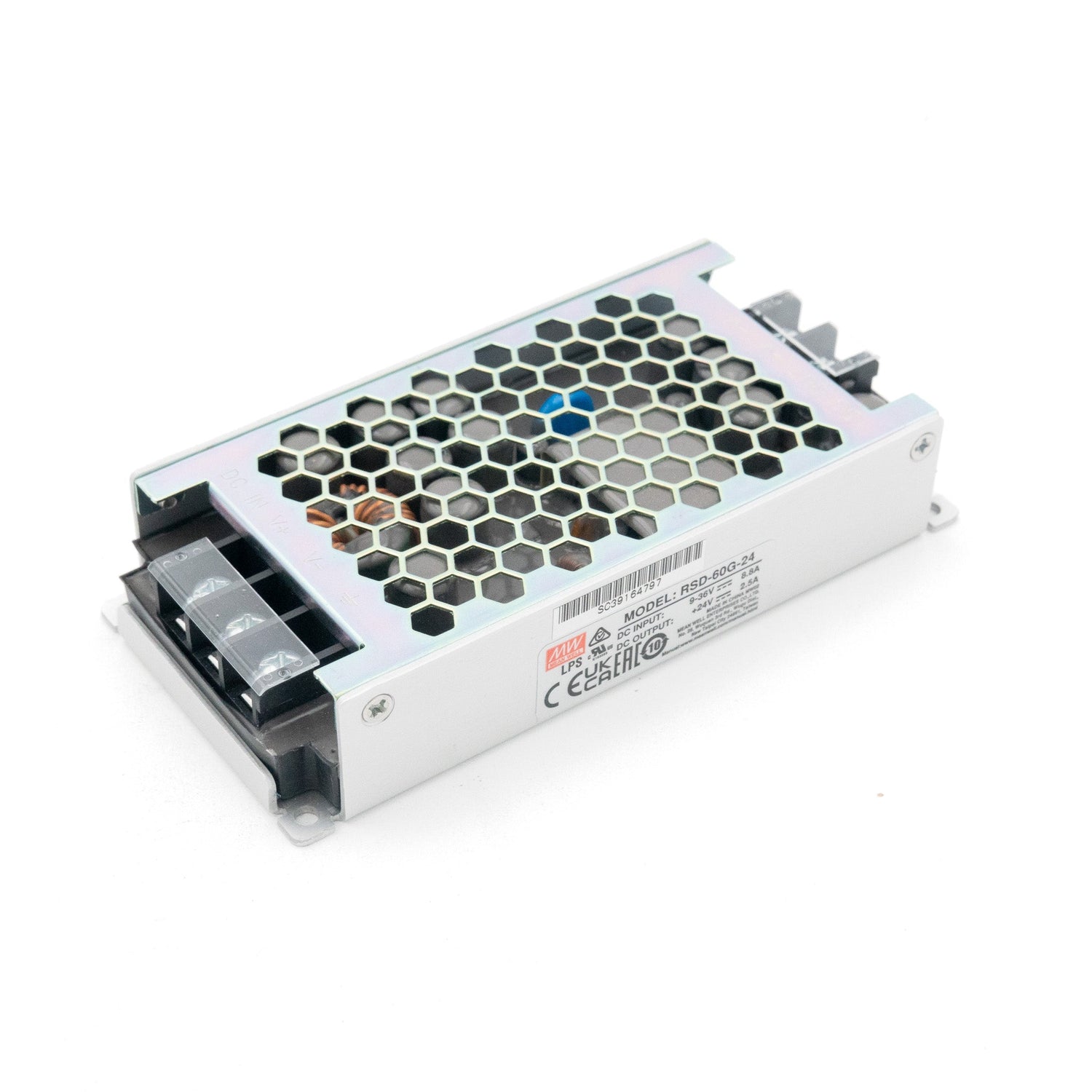

Mean Well RSD-60G-24 DC-DC Converter - 30W - 9~36V in 24V out 2.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-60G-24 DC-DC Converter - 30W - 9~36V in 24V out 2.5A
The RSD-60G is a 60W Mean Well power converter (input range: 9~36VDC).
Key Features
- ✓ Input voltage range: 9~36VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating30 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length5.04 in
-
Width2.36 in
-
Height0.98 in
-
Weight0.64 lb
::specification::
Frequently Asked Questions
Can I use the RSD-60G-24 for a small 24V PLC or industrial control load?
Yes, as long as the load stays within 24V, 2.5A, and 30W. The converter is a constant-voltage model, so it is intended for equipment that requires a regulated 24V supply.
Is this converter a good fit for 24V field devices in a compact machine or panel?
It is suited to compact 24V loads because the body measures 128.0 × 60.0 × 25.0 mm and weighs 0.29 kg. Electrically, it provides up to 2.5A at 24V with 30W total output power.
Can the RSD-60G-24 be used in transportation or mobile automation equipment?
It can fit mobile equipment because it is specified to withstand 5G vibration. Its wide operating temperature range of -40°C to +70°C also supports use in equipment exposed to changing ambient conditions.
Would this model work for a 24V communications or monitoring device powered from a wide DC source?
It can, provided the device needs a constant 24V output and draws no more than 2.5A or 30W. The listed input range is 9-36VAC, which allows a broad input window in the published specifications.
Is the RSD-60G-24 rated for outdoor installation?
The converter is specified for operation from -40°C to +70°C, so the temperature rating is broad. No IP rating is included in the provided specs, so direct weather exposure should be avoided unless the unit is placed in a suitable enclosure.
