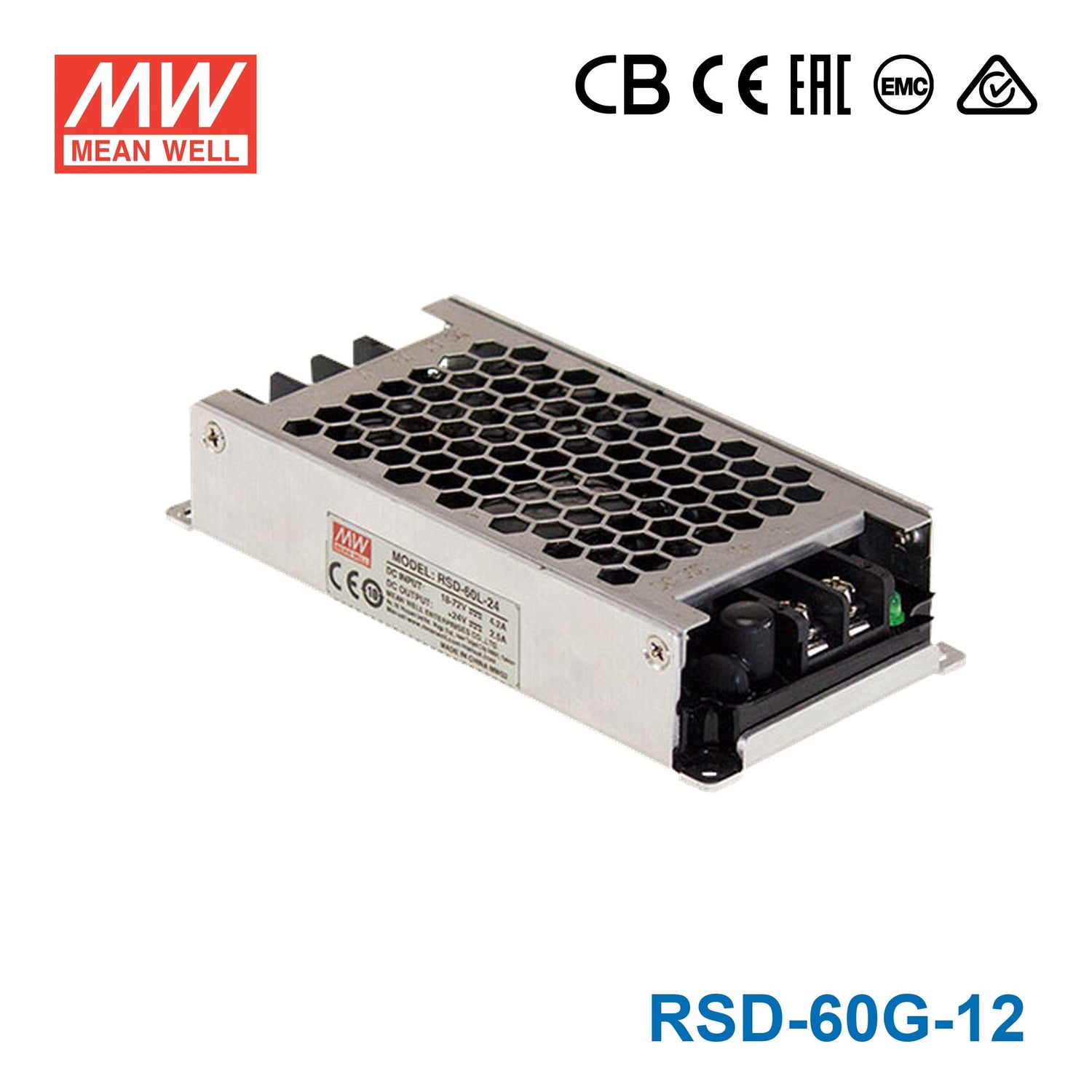

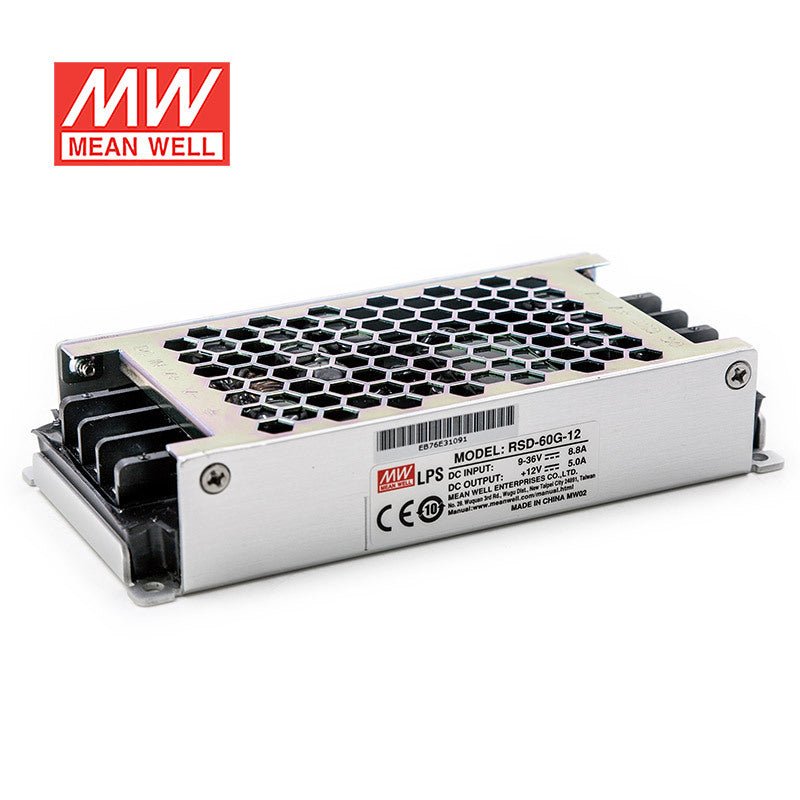

Mean Well RSD-60G-12 DC-DC Converter - 30W - 9~36V in 12V out

miniature size, economical, withstand 5G vibration and 70°C operation

SKU:

RSD-60G-12

$39.67 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard

Ultra compact and 1U low profile(25mm

4:1 wide input range

No minimum load required

Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.

4000VDC I / O isolation

Half encapsulated, cooling by free air convection

-40~+70℃ wide working temperature

The built-in constant current limiting circuit

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

Line regulation (max.)	± 0.5%
Load regulation (max.)	± 0.5%
Overload protection Range	105% ~ 135%
Overload protection Type	Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection	115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage	I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature	-40 ~ + 85°C (refer to output derating curve)
Safety standards	IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
EMC standards	EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard	EN50155 / IEC60571
Dimension (LxWxH) (mm)	128 x 60 x 25mm
Packing	0.29Kg; 48pcs/14.9Kg/0.75CUFT

Specifications

Brand

Mean Well
Series

RSD Series
Power Rating

30 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

9V~36V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

5.04 in
Width

2.36 in
Height

0.98 in
Weight

0.64 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the RSD-60G-12 to power a 12V embedded controller from a vehicle or battery system?

Yes. It delivers a constant 12V output at up to 5A with 30W total power, and the listed input range is 9-36VAC. That makes it a fit for compact 12V electronics that need regulated output within those limits.

Is the RSD-60G-12 suitable for a small 12V industrial sensor or I/O module group?

It can support small 12V industrial loads when the combined demand stays within 5A and 30W. Because it is a constant-voltage model, it is intended for equipment that expects a regulated 12V supply.

Can this model be used in compact automation panels where space is limited?

Yes. The housing is 128.0 × 60.0 × 25.0 mm and the unit weighs 0.29 kg, so it is sized for smaller enclosures. It is still limited to 12V output, 5A current, and 30W total power.

Would the RSD-60G-12 work in mobile or vibration-prone embedded equipment?

It is specified to withstand 5G vibration, which is useful in moving or mechanically stressed equipment. The operating temperature range is -40°C to +70°C, so it is also rated for wide temperature conditions.

Is the RSD-60G-12 appropriate for outdoor use?

The temperature spec is -40°C to +70°C, which supports demanding ambient conditions. No IP rating is listed in the provided specs, so exposed outdoor use should be treated as requiring a protective enclosure.
