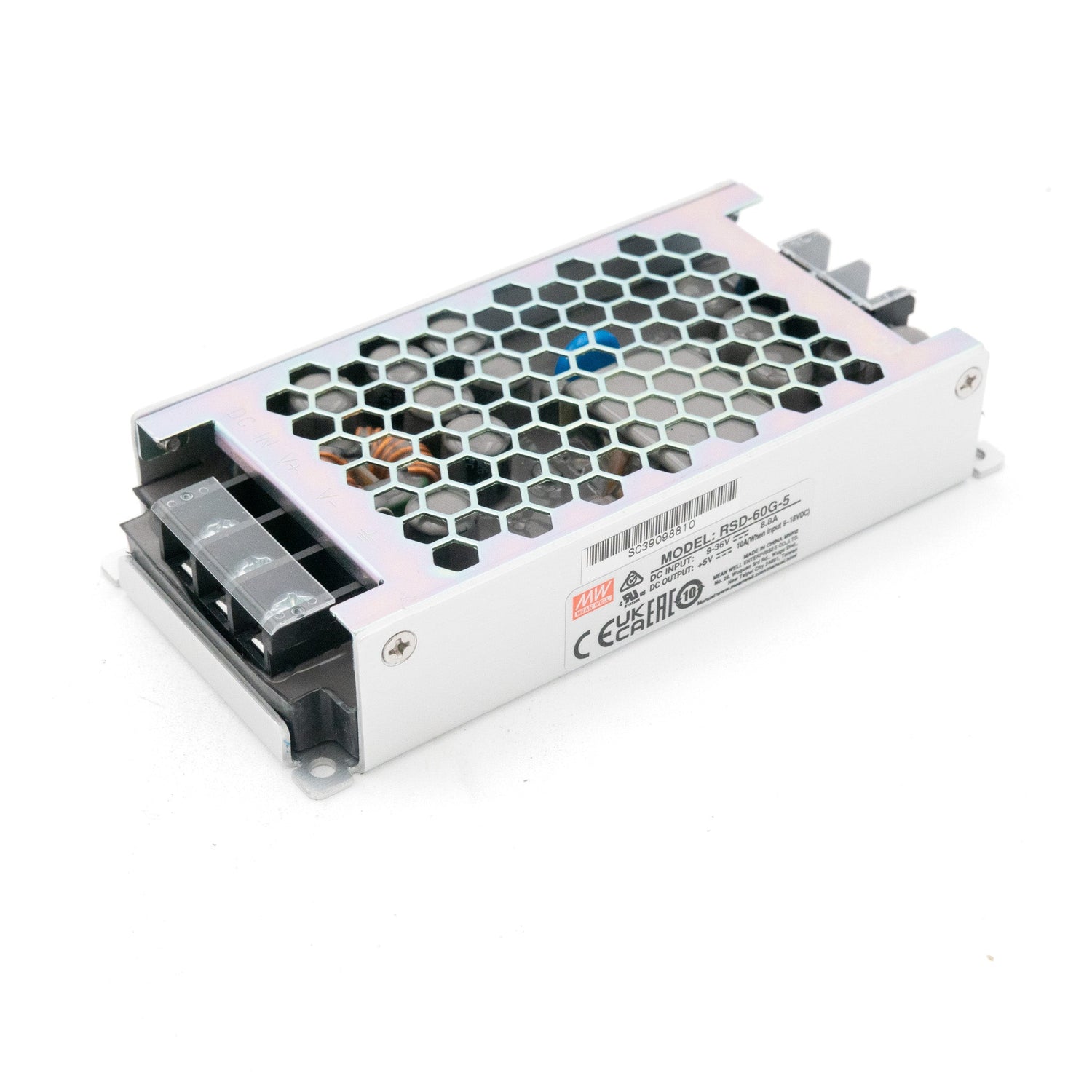

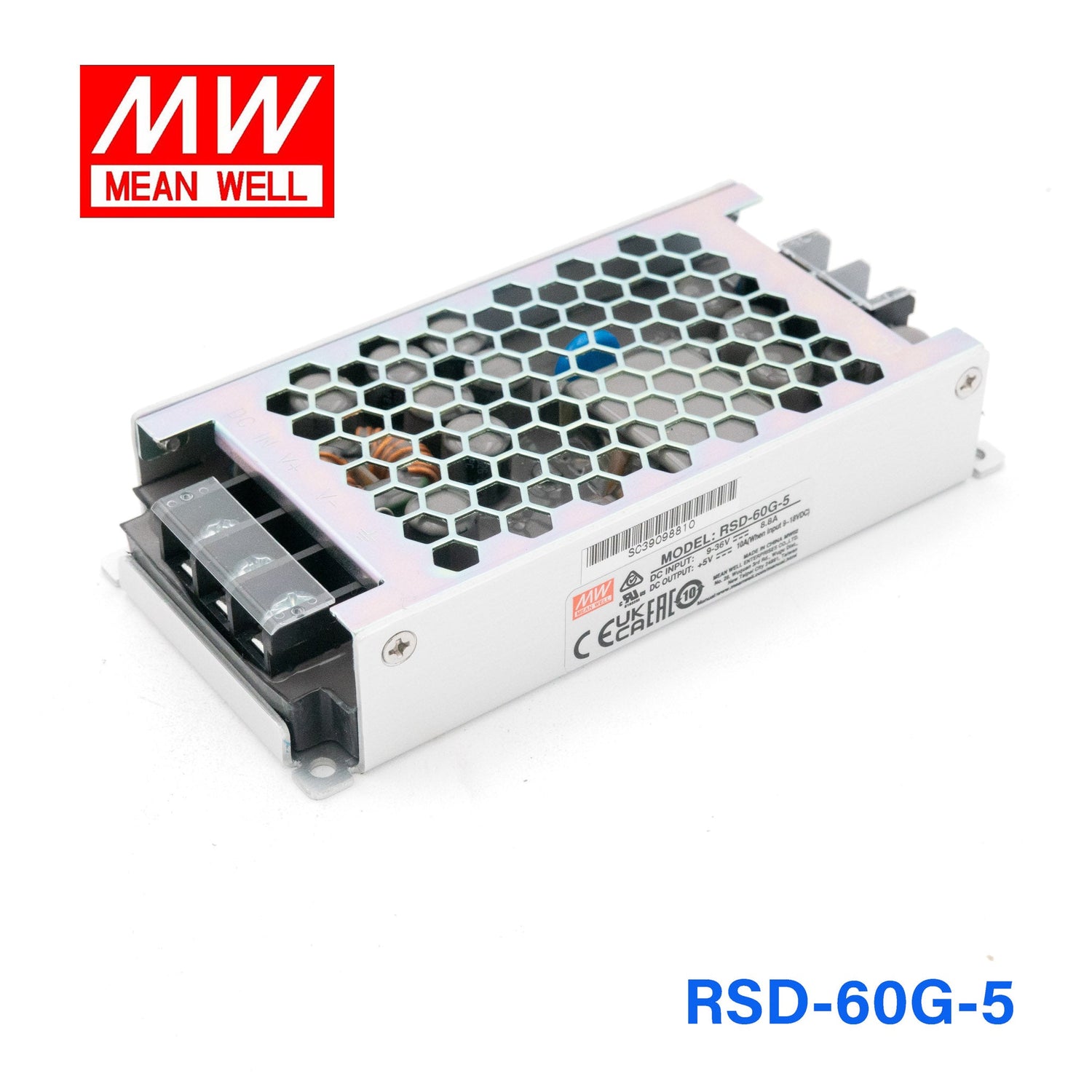

Mean Well RSD-60G-5 DC-DC Converter - 30W - 9~36V in 5V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-60G-5 DC-DC Converter - 30W - 9~36V in 5V out
Description
Description
The RSD-60G is a 60W Mean Well power converter (input range: 9~36VDC).
Key Features
- ✓ Input voltage range: 9~36VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current12 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length5.04 in
-
Width2.36 in
-
Height0.98 in
-
Weight0.64 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RSD-60G-5 to power a 5V industrial controller or embedded computer from a variable DC source?
This converter is designed for constant-voltage 5V output and can supply up to 12A, with a 30W power rating. Its input range is 9-36VAC, so it fits applications where the available source falls within that range and the 5V load stays within 30W.
Is the RSD-60G-5 suitable for 5V automation I/O, sensors, or communication hardware in a control cabinet?
It can be used for 5V automation electronics that need a regulated constant-voltage output. The unit provides 5V at up to 12A and 30W total, which makes it appropriate when the combined load does not exceed those figures.
Can this DC-DC converter be used in mobile or vibration-prone industrial equipment?
The published features state that it withstands 5G vibration and operates up to +70°C. Those specs make it a fit for industrial or embedded systems where vibration resistance and wide temperature capability are required.
Is the RSD-60G-5 suitable for outdoor or harsh-environment use?
The provided specs list an operating temperature range of -40°C to +70°C and note 5G vibration resistance. No IP rating is listed, so these specs do not by themselves establish outdoor, washdown, or weather-exposed suitability.
How does the RSD-60G-5 compare with other low-power RSD output options?
This model is 30W with a 5V, 12A output. In the related low-power range, RSD-60G-3.3 is 19.8W at 3.3V and 12A, RSD-60G-12 is 30W at 12V and 5A, RSD-60G-24 is 30W at 24V and 2.5A, RSD-60L-5 is 30W at 5V and 12A, and RSD-30G-5 and RSD-30L-5 are both 30W at 5V and 6A.
Other RSD-60G Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSD-60G-12 DC-DC Converter - 30W - 9~36V in 12V out | 30W | 12V | 5A | Indoor | $39.67 | View |
| Mean Well RSD-60G-3.3 DC-DC Converter - 19.8W - 9~36V in 3.3V out | 19.8W | 3.3V | 12A | Indoor | $37.06 | View |
| Mean Well RSD-60G-24 DC-DC Converter - 30W - 9~36V in 24V out | 30W | 24V | 2.5A | Indoor | $39.67 | View |
