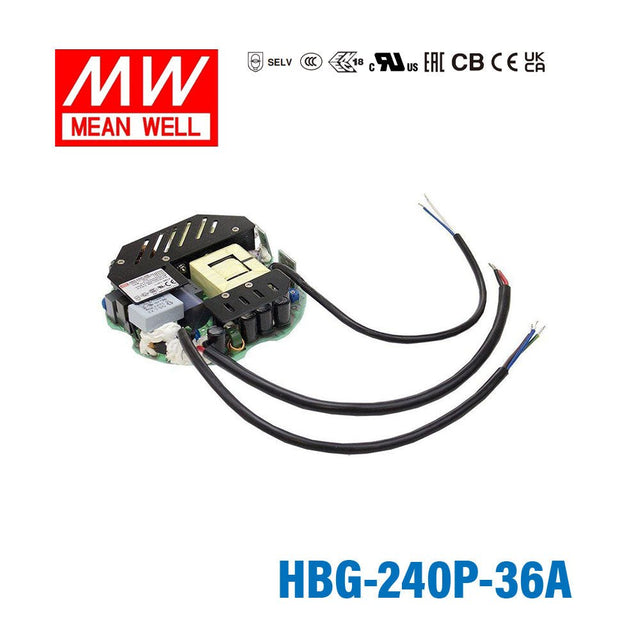

Mean Well HBG-240P-36A Power Supply 240PW 36V PCB Type - Adjustable
The HBG-240P is a 240W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+45℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+45℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1,GB19510.14, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
What is the Mean Well HBG-240P-36A designed for?
The HBG-240P-36A is a 240W LED power supply for applications that need a 36V output with constant current mode operation. Its circular PCB-type design makes it suitable for LED lighting products and other power applications that need a compact, enclosed-driver format.
What are the key electrical ratings of the HBG-240P-36A?
This model is rated for 240W output, 36V output voltage, and 6.7A rated current. It also supports current adjustment from 65% to 100% of rated current, which helps match the driver to the load requirements within its specified range.
Does the HBG-240P-36A support dimming or output adjustment?
Yes. This version uses potentiometer-based adjustment and the specification lists a DC adjustment range of 65% to 100% of rated current. That makes it useful where adjustable output current is needed without changing to a different driver model.
What input voltage range does the Mean Well HBG-240P-36A accept?
The HBG-240P-36A accepts a wide input range of 90 to 295VAC, and it also supports 127 to 417VDC input. This wide-range input helps it fit projects and equipment used across different mains power environments.
Is the HBG-240P-36A suitable for demanding temperature conditions?
This model is specified for operation from -40°C to +70°C in the product description. That makes it a practical choice for environments with low ambient temperatures or elevated operating heat, provided the overall application stays within the product's rated conditions.
What protection and compliance features does the HBG-240P-36A include?
The HBG-240P-36A includes built-in active PFC and over-current protection with hiccup mode and auto recovery. It is also listed with safety standards BS EN/EN61347-1 and BS EN/EN61347-2-13, along with EMC standards including EN55015 and EN61000-3-2 Class C.
How does the HBG-240P-36A compare with non-adjustable LED power supplies?
A key difference is that this HBG-240P-36A model includes potentiometer-based current adjustment, rather than being fixed only at one output current setting. It also combines a 240W rating, 36V output, circular PCB-style form factor, and Class II design, which may make it a better fit for applications needing those specific characteristics together.
What warranty and expected service life does the HBG-240P-36A offer?
Mean Well lists this model with a 5-year warranty. The product features also state a typical lifetime greater than 50,000 hours, supporting use in long-service LED power applications.
