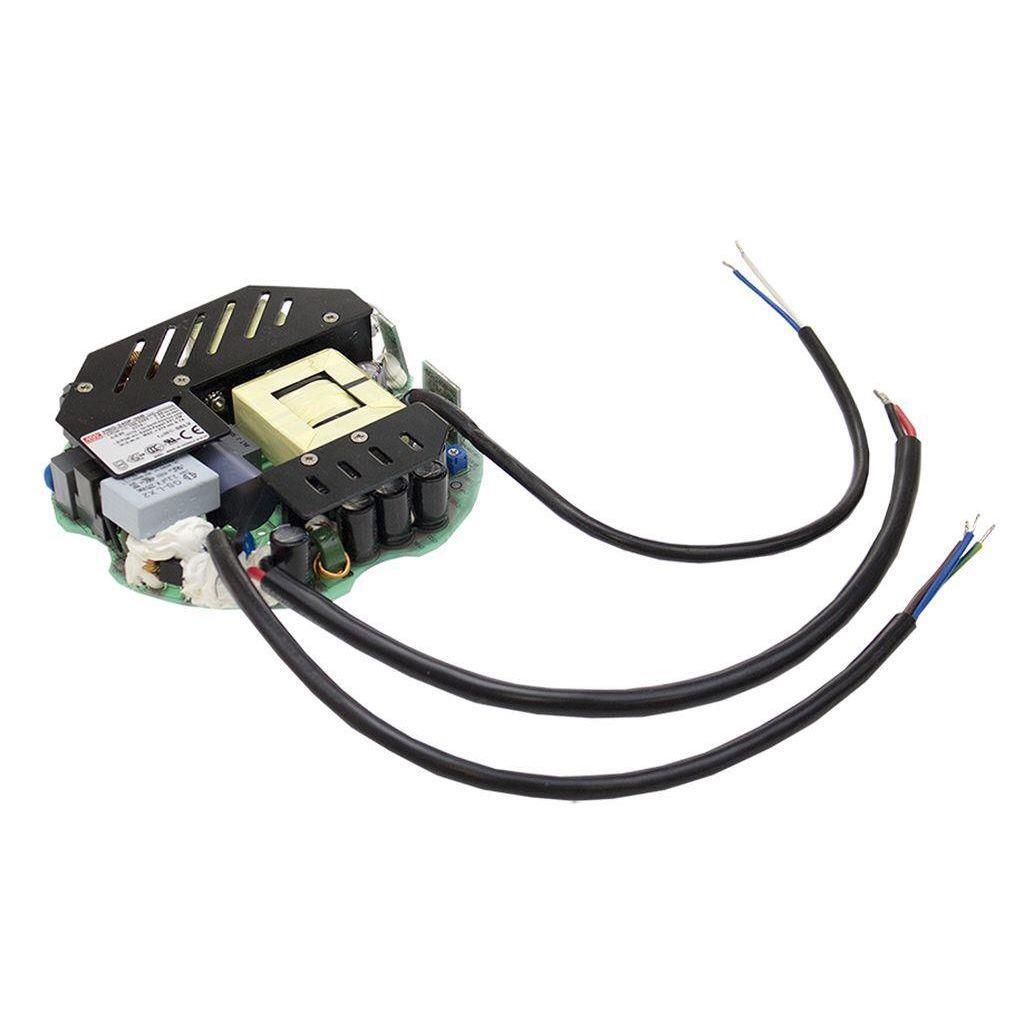

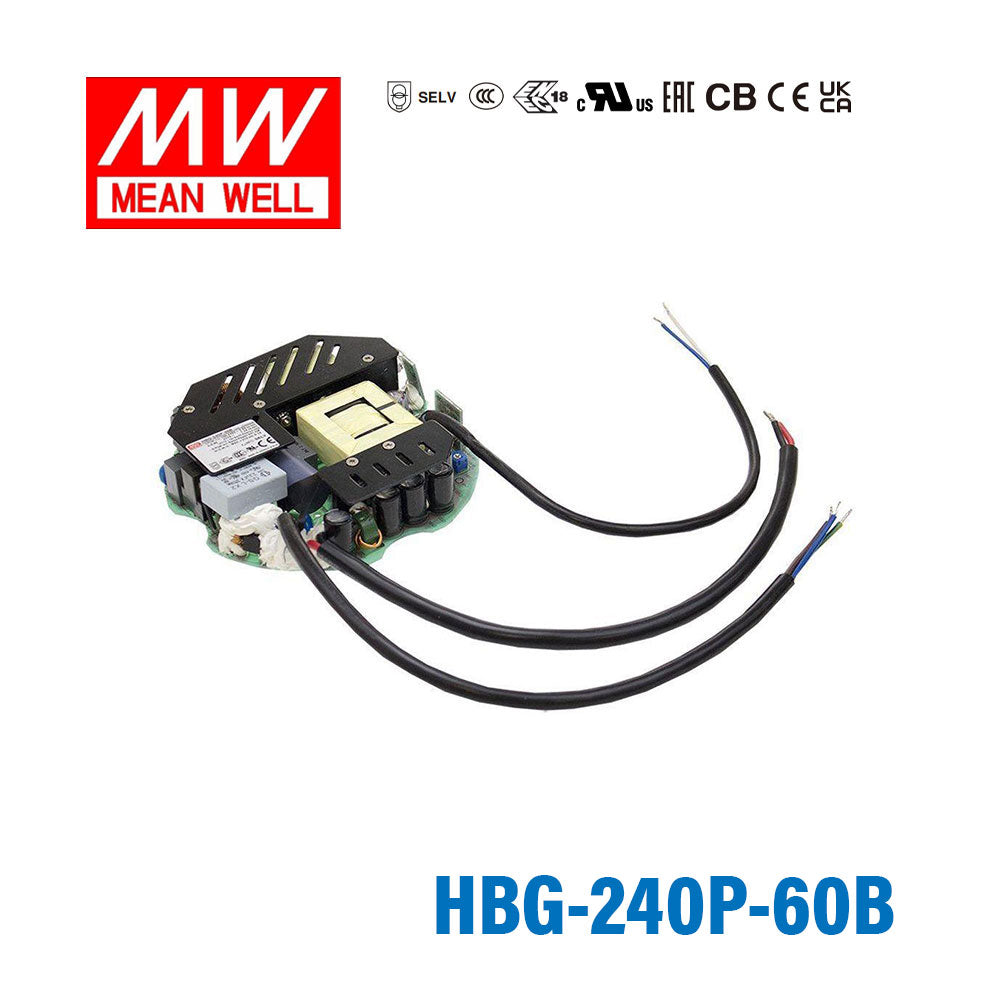

Mean Well HBG-240P-60B Power Supply 240PW 60V PCB Type

Name: Mean Well HBG-240P-60B Power Supply 240PW 60V PCB Type - Dimmable 4A
Brand: Mean Well
SKU: HBG-240P-60B
Price: 109.58 USD
Availability: InStock

Overview

HBG-240P-60B is the 60V output model of this series: rated current 4.0A, rated power 240W, typical efficiency 93.5%.

HBG-240P series is a 240W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers the dual mode constant voltage and constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-240P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular shape PCB type design
Built-in active PFC function
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-240P-60BSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 60V
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
RATED CURRENT: 4.0A
RATED POWER^Note.5: 240W
RIPPLE & NOISE (max.)^Note.3: 350mVp-p
CURRENT ADJ. RANGE: Adjustable for A-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 2.4 ~ 4.0A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 2500ms, 120ms / 115VAC 500ms, 120ms / 230VAC
HOLD UP TIME (Typ.): 15ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.98/115VAC, PF≧0.94/230VAC, PF≧0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93.5%
AC CURRENT: 2.8A / 115VAC 1.4A / 230VAC 1.2A / 277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE: 62 ~ 85V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE^Note.11: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Ta=-40 ~ +45℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB/T19510.1,GB/T19510.213,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 2290.4K hrs min. Telcordia SR-332 (Bellcore) 175.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: Refer to mechanical specification
PACKING: 0.62Kg; 20pcs/13.4Kg/1.11CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Ta is about 45℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. All functional testing must be filled with potting,including OTP function .

Technical drawings

HBG-240P-60B BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-240P-60B DIMMING OPERATION — DIMMING OPERATION

HBG-240P-60B ◎ Applying additive resistance — ◎ Applying additive resistance

HBG-240P-60B ◎ Applying additive resistance (2) — ◎ Applying additive resistance (2)

HBG-240P-60B OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HBG-240P-60B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-240P-60B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-240P-60B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED bay lighting
LED down lighting
LED spot lighting
LED mining lighting
LED stage lighting

Downloads

Certificates8

Mean Well HBG-240 ENEC Certificate PDF Download

Mean Well HBG-240 CCC Certificate PDF Download

Mean Well HBG-240 CB Certificate PDF Download

Mean Well HBG-240 EMC Certificate PDF Download

Mean Well HBG-240 CE-DEC Certificate PDF Download

Mean Well HBG-240 UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-240-60 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What type of LED applications is the HBG-240P-60B designed for?

The Mean Well HBG-240P-60B is intended for LED lighting applications that need a 60V output and up to 4A rated current from a 240W driver. Its 3-in-1 dimming input makes it suitable for commercial or industrial LED systems where controlled brightness is required.

Is the HBG-240P-60B a dimmable power supply?

Yes. This B-Type model has a 3-in-1 dimming input (DIM+/DIM-) that accepts 1-10VDC, a 10V PWM signal, or resistance. That makes it a fit for projects that need adjustable light output without changing to a different driver model.

What are the main electrical ratings of the HBG-240P-60B?

This model is rated at 240W with a 60V output and 4A rated current, with a constant current region of 36 to 60V. It accepts a wide 90-305VAC input range, with derating at low input voltages, and also supports 127-431VDC input. Output current is controlled through the 3-in-1 dimming input.

Can the HBG-240P-60B be used in demanding temperature conditions?

It is specified for a working ambient of -40°C to +45°C, with load derating per the output load vs temperature curve, and storage from -40°C to +80°C. That cold-start capability is useful for applications exposed to low seasonal or industrial temperatures.

What makes the HBG-240P-60B different from a basic non-dimmable LED driver?

This version combines a 240W 60V output with three dimming control methods (1-10VDC, 10V PWM, resistance), a built-in PFC circuit (PF≥0.98 at 115VAC), and a round ø144mm housing. That helps distinguish it from simpler fixed-output drivers.

What protection and reliability features does the HBG-240P-60B include?

The HBG-240P-60B includes over-current protection (constant current limiting), hiccup-mode short-circuit protection, and over-voltage and over-temperature protection; all except over-voltage recover automatically. Mean Well also states a typical life expectancy over 50,000 hours at an ambient of about 45°C or less.
