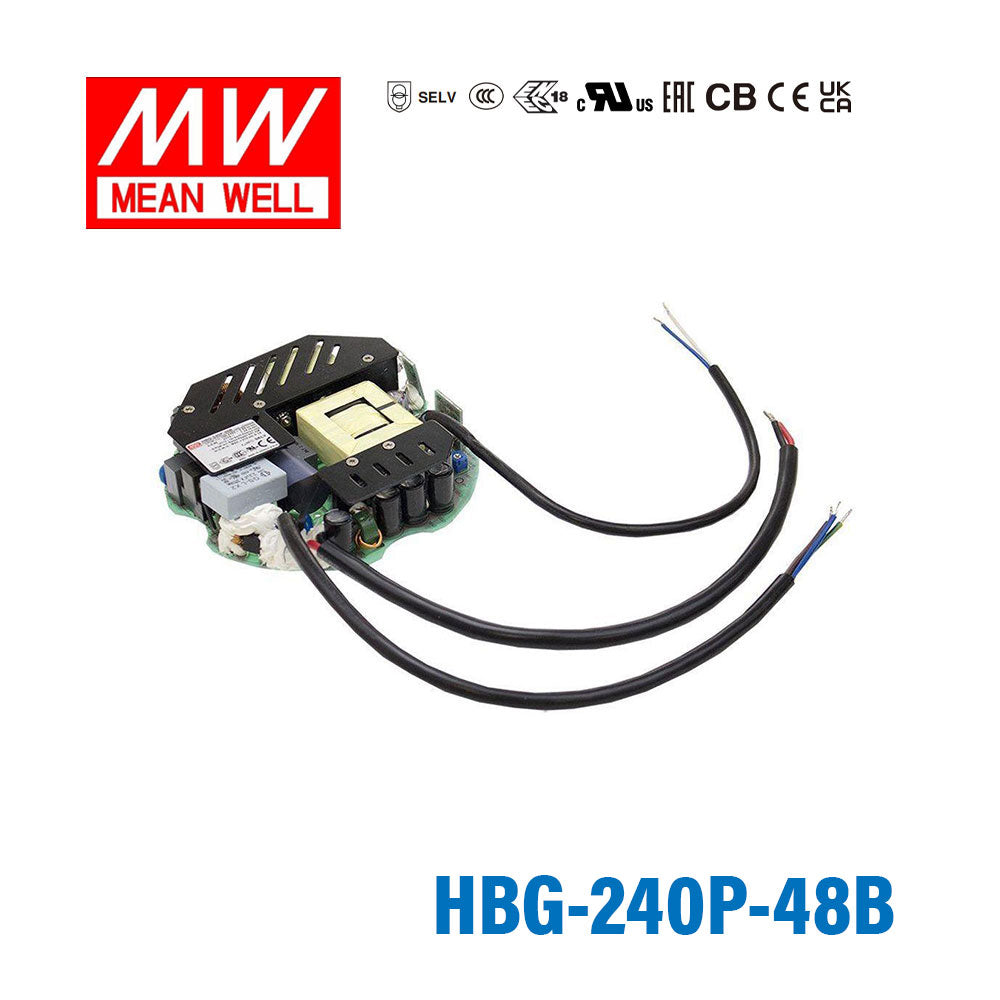

Mean Well HBG-240P-48B Power Supply 240PW 48V PCB Type - Dimmable
The HBG-240P is a 240W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+45℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+45℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1,GB19510.14, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating240 Watt
-
Output Voltage48 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
What kind of product is the Mean Well HBG-240P-48B?
The HBG-240P-48B is a 240W dimmable LED power supply with a 48V output and 5A rated current. It is part of Mean Well's HBG series and uses a circular PCB-type design with Class II construction.
What dimming methods does the HBG-240P-48B support?
This model supports 10V PWM, 1-10V, and resistance dimming control. That makes it suitable for lighting systems that need flexible dimming options without changing to a different driver model.
What applications is the HBG-240P-48B best suited for?
This model is suited to LED lighting applications that need a 48V dimmable power supply with up to 240W capacity. Buyers typically consider it where stable output, active PFC, and long service life are important for commercial or OEM lighting projects.
Can the HBG-240P-48B be used in demanding temperature conditions?
Yes. The published working temperature range is -40 to +70 degrees C, which makes it appropriate for installations exposed to cold or elevated ambient conditions within that range. Buyers should still confirm their enclosure and thermal design match the operating environment.
What safety and EMC standards are listed for the HBG-240P-48B?
This model lists BS EN/EN61347-1 and BS EN/EN61347-2-13 for safety, along with EN55015, EN61000-3-2 Class C, and EN61000-3-3 for EMC. Those published standards help buyers assess fit for compliant LED lighting equipment builds.
How durable is the HBG-240P-48B for long-term use?
Mean Well specifies a typical lifetime greater than 50,000 hours for this model. It also carries a 5-year warranty, which is a useful indicator for buyers comparing long-service LED driver options.
