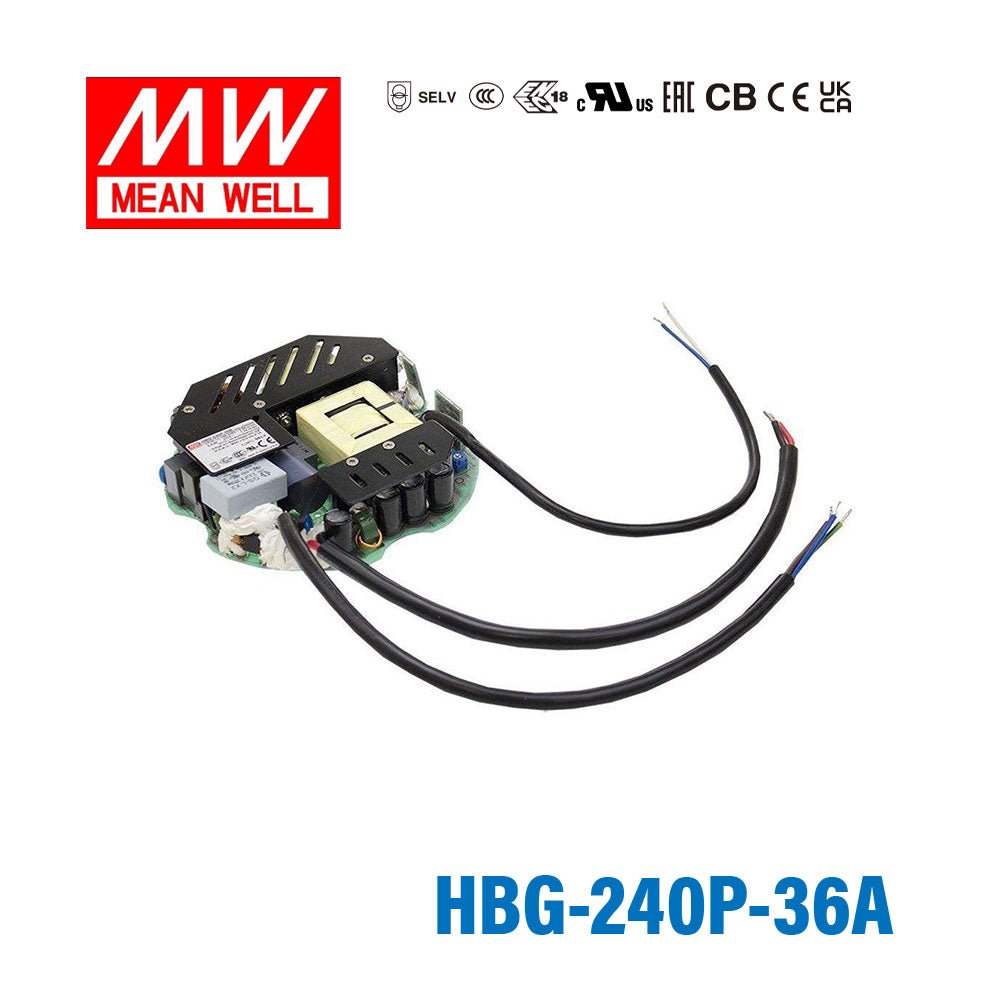

Mean Well HBG-240P-36A Power Supply 240PW 36V PCB Type

Name: Mean Well HBG-240P-36A Power Supply 240PW 36V PCB Type - Adjustable 6.7A
Brand: Mean Well
SKU: HBG-240P-36A
Price: 107.15 USD
Availability: InStock

Overview

HBG-240P-36A is the 36V output model of this series: rated current 6.7A, rated power 241.2W, typical efficiency 92.5%.

HBG-240P series is a 240W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers the dual mode constant voltage and constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-240P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular shape PCB type design
Built-in active PFC function
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-240P-36ASpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.2: 21.6 ~ 36V
RATED CURRENT: 6.7A
RATED POWER^Note.5: 241.2W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
CURRENT ADJ. RANGE: Adjustable for A-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 4.0 ~ 6.7A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 2500ms, 120ms / 115VAC 500ms, 120ms / 230VAC
HOLD UP TIME (Typ.): 15ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.98/115VAC, PF≧0.94/230VAC, PF≧0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92.5%
AC CURRENT: 2.8A / 115VAC 1.4A / 230VAC 1.2A / 277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE: 43 ~ 52V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE^Note.11: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Ta=-40 ~ +45℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB/T19510.1,GB/T19510.213,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 2290.4K hrs min. Telcordia SR-332 (Bellcore) 175.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: Refer to mechanical specification
PACKING: 0.62Kg; 20pcs/13.4Kg/1.11CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Ta is about 45℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. All functional testing must be filled with potting,including OTP function .

Technical drawings

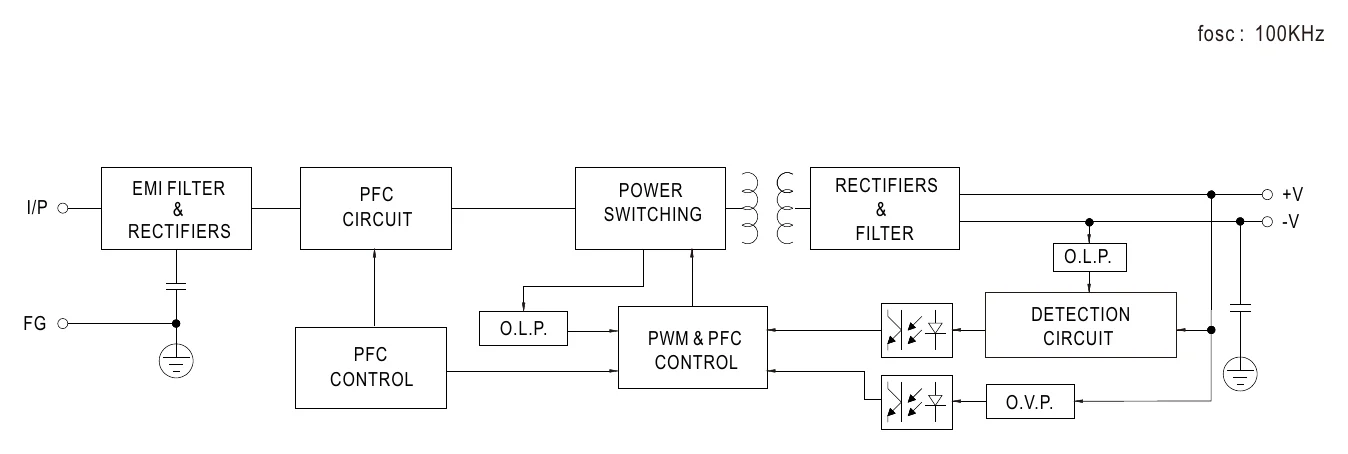

HBG-240P-36A BLOCK DIAGRAM — BLOCK DIAGRAM

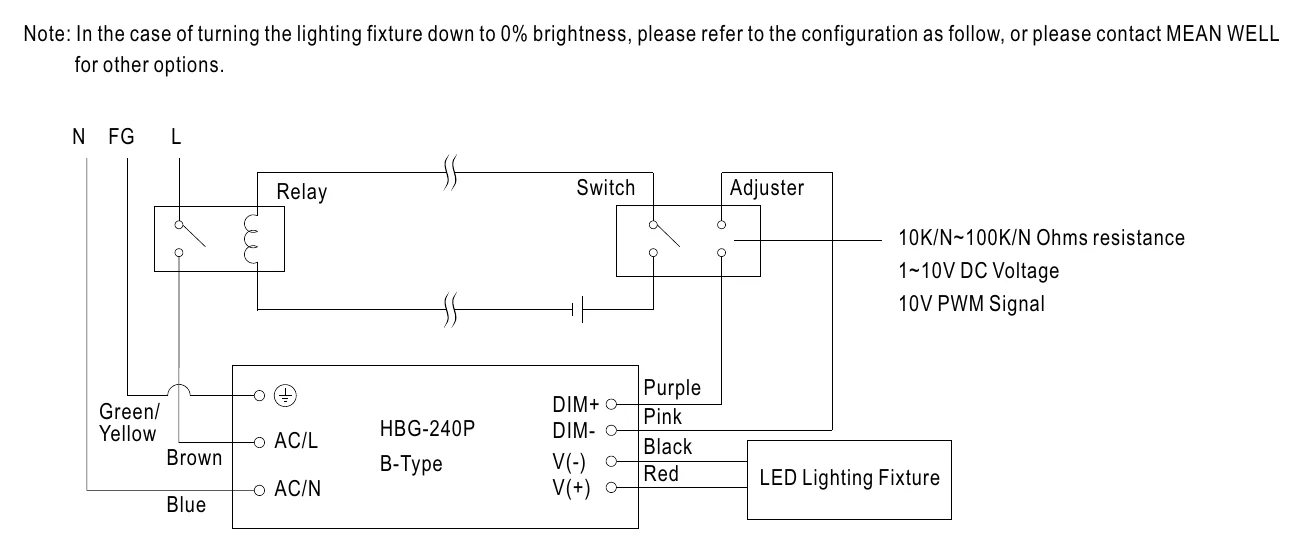

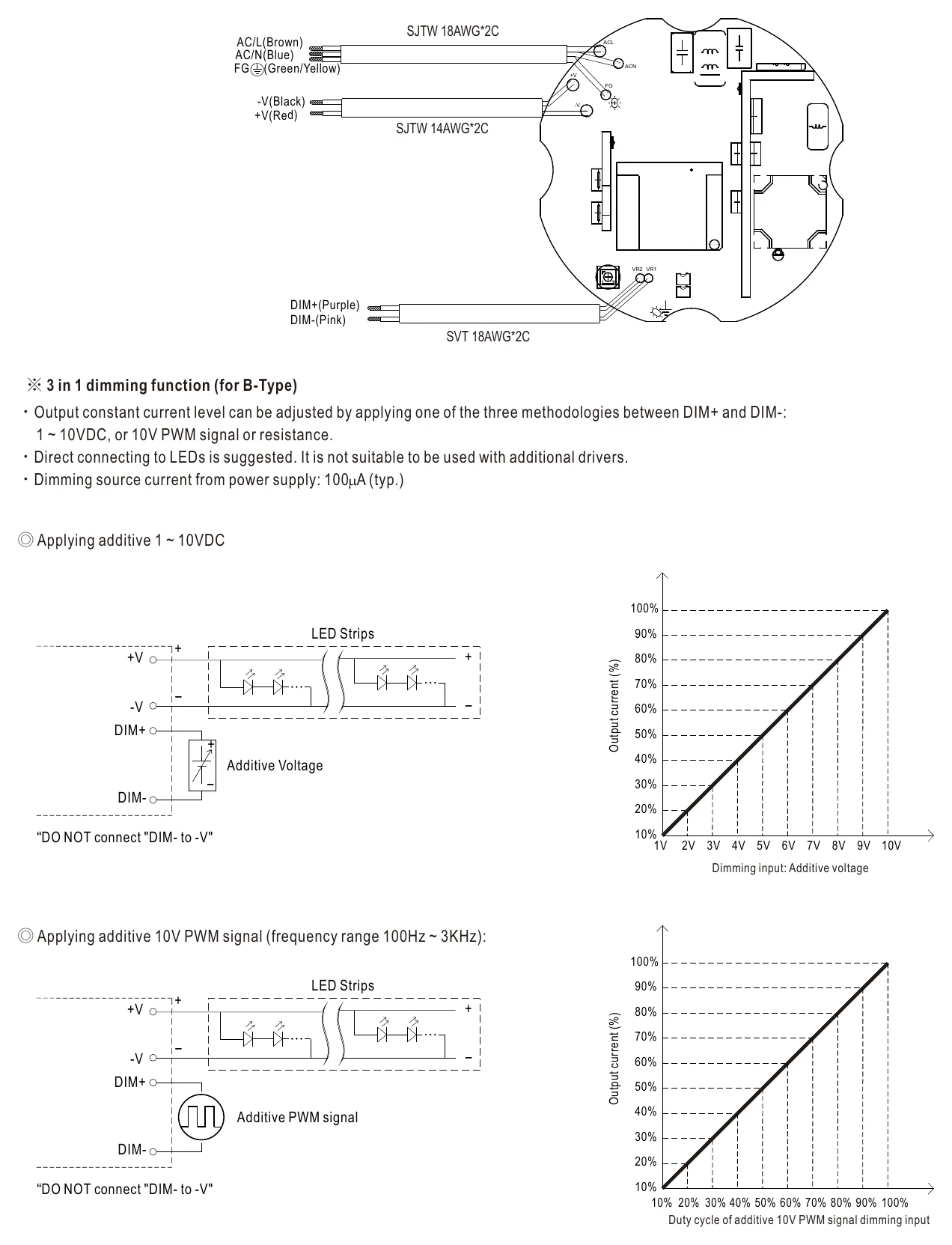

HBG-240P-36A DIMMING OPERATION — DIMMING OPERATION

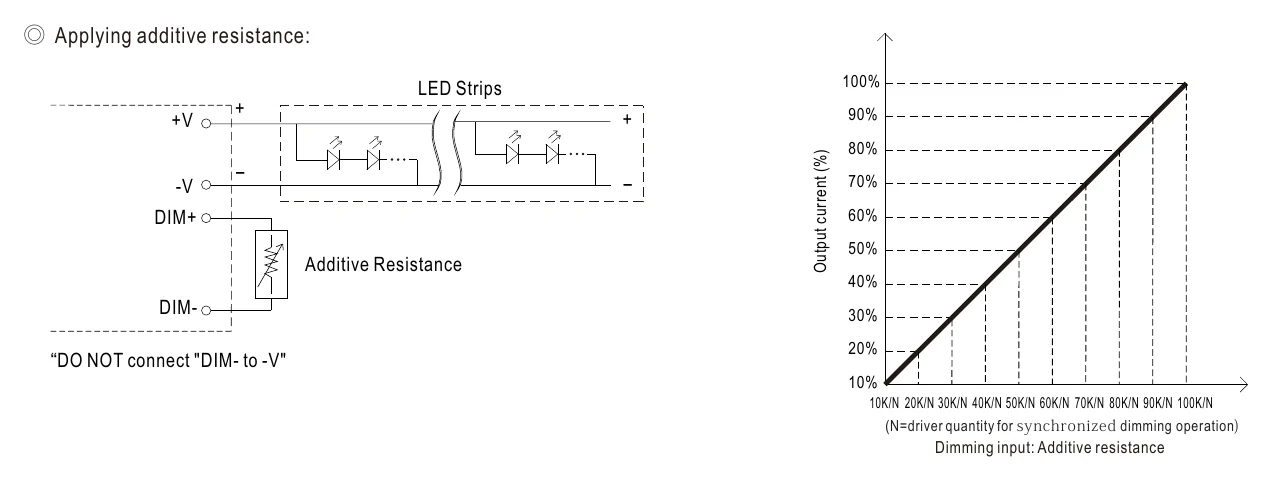

HBG-240P-36A ◎ Applying additive resistance — ◎ Applying additive resistance

HBG-240P-36A ◎ Applying additive resistance (2) — ◎ Applying additive resistance (2)

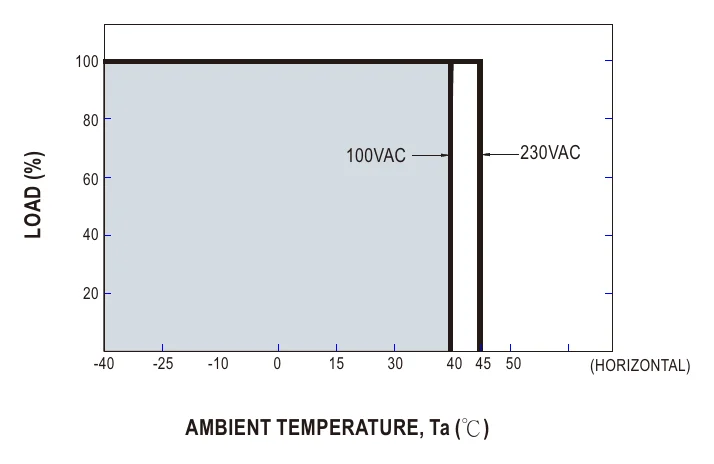

HBG-240P-36A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

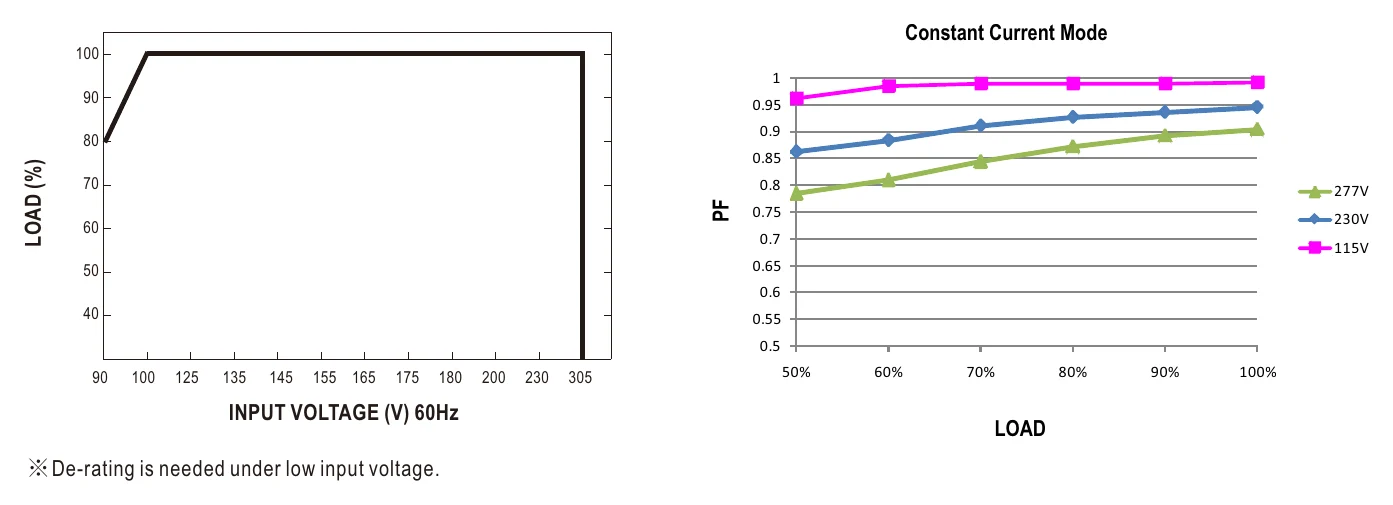

HBG-240P-36A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

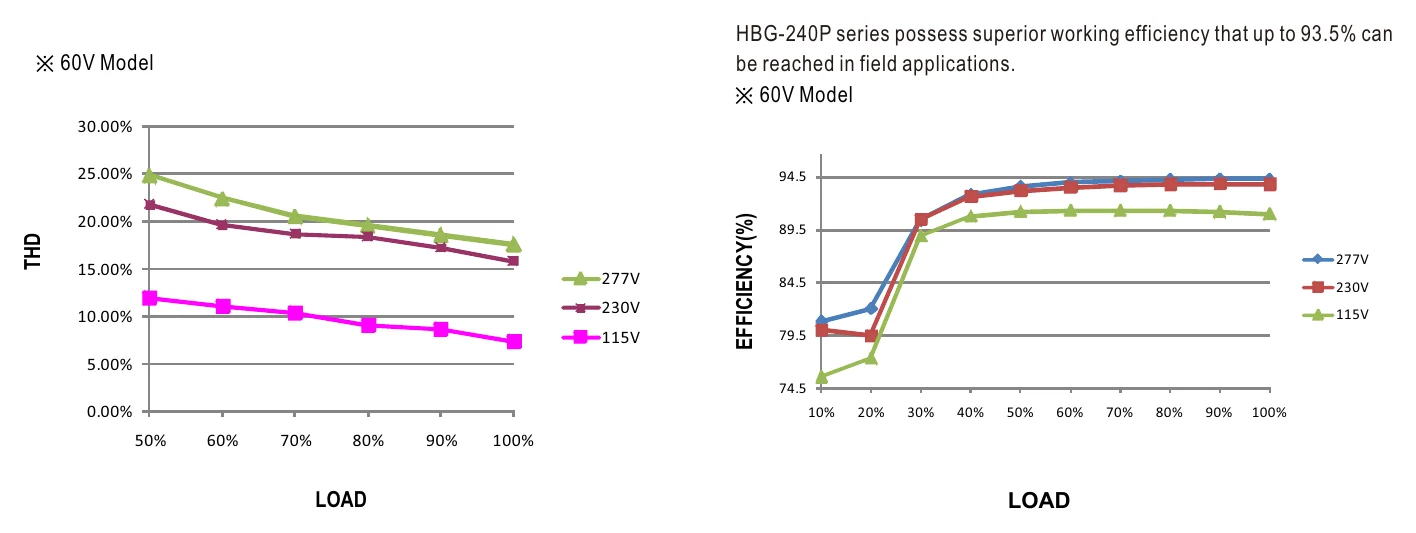

HBG-240P-36A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

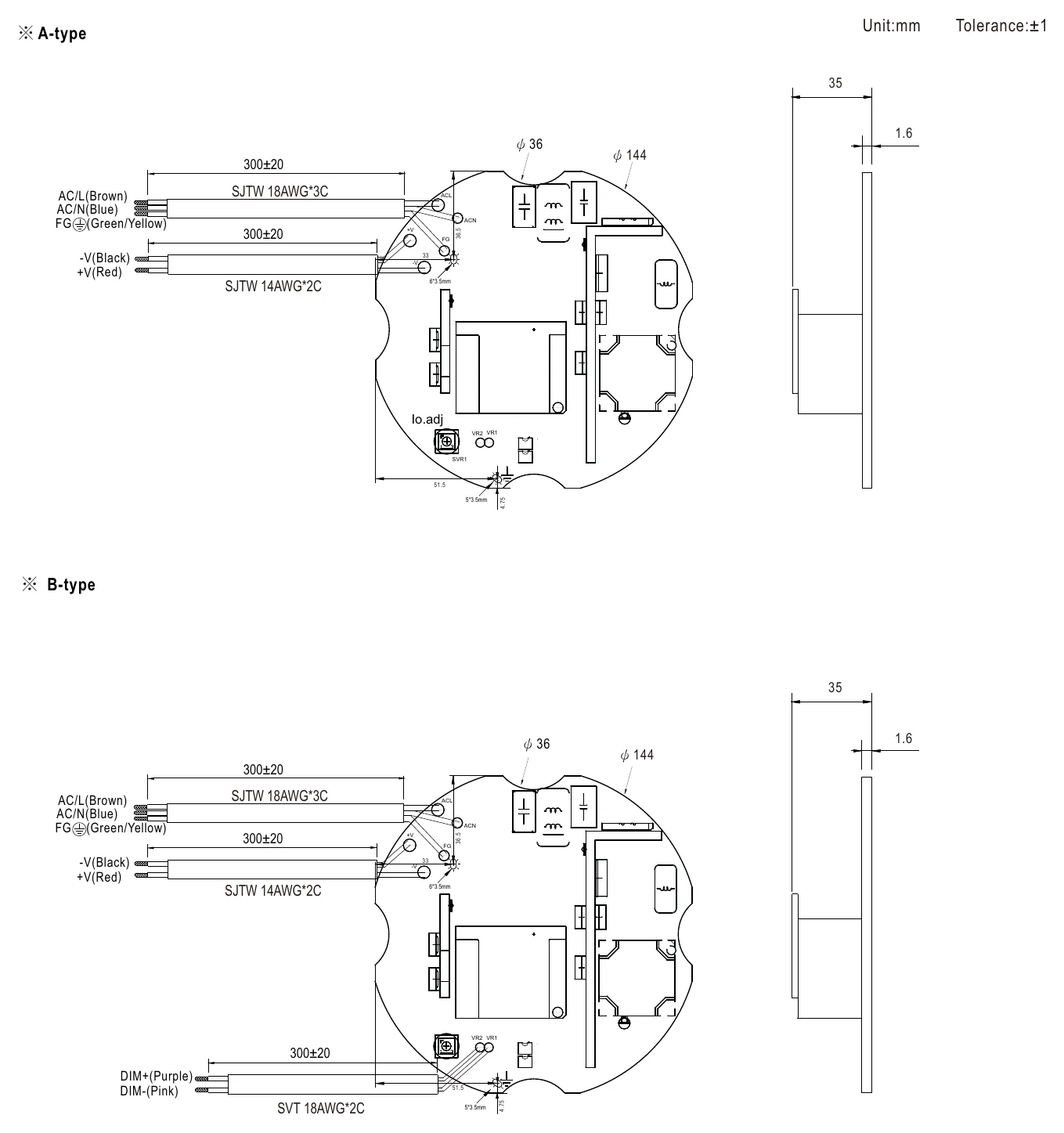

HBG-240P-36A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED bay lighting
LED down lighting
LED spot lighting
LED mining lighting
LED stage lighting

Downloads

Certificates8

Mean Well HBG-240 ENEC Certificate PDF Download

Mean Well HBG-240 CCC Certificate PDF Download

Mean Well HBG-240 CB Certificate PDF Download

Mean Well HBG-240 EMC Certificate PDF Download

Mean Well HBG-240 CE-DEC Certificate PDF Download

Mean Well HBG-240 UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-240-36 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What is the Mean Well HBG-240P-36A designed for?

The HBG-240P-36A is a 241.2W LED driver for applications that need a 36V output with constant current mode operation. Its round ø144mm housing makes it suitable for LED lighting products that need a compact, enclosed-driver format.

What are the key electrical ratings of the HBG-240P-36A?

This model is rated for 241.2W output, 36V output voltage, and 6.7A rated current. It also supports current adjustment from 4.0A to 6.7A (about 60% to 100% of rated current), which helps match the driver to the load requirements within its specified range.

Does the HBG-240P-36A support dimming or output adjustment?

It supports output adjustment. This A-Type version uses a built-in potentiometer and the specification lists a current adjustment range of 4.0A to 6.7A. That makes it useful where adjustable output current is needed without changing to a different driver model; the 3-in-1 dimming input is a B-Type feature.

What input voltage range does the Mean Well HBG-240P-36A accept?

The HBG-240P-36A accepts a wide input range of 90 to 305VAC, and it also supports 127 to 431VDC input. This wide-range input helps it fit projects and equipment used across different mains power environments.

Is the HBG-240P-36A suitable for demanding temperature conditions?

This model is specified for operation from -40°C to +45°C ambient, with load derating per the output load vs temperature curve. That makes it a practical choice for environments with low ambient temperatures, provided the overall application stays within the product's rated conditions.

What protection and compliance features does the HBG-240P-36A include?

The HBG-240P-36A includes a built-in PFC circuit, over-current protection by constant current limiting, and hiccup-mode short-circuit protection with auto recovery. It is also listed with safety standards UL8750, BS EN/EN61347-1 and BS EN/EN61347-2-13, along with EMC standards including EN55015 and EN61000-3-2 Class C.

How does the HBG-240P-36A compare with non-adjustable LED power supplies?

A key difference is that this HBG-240P-36A model includes potentiometer-based current adjustment, rather than being fixed only at one output current setting. It also combines a 241.2W rating, 36V output and a round ø144mm housing, which may make it a better fit for applications needing those specific characteristics together.

What warranty and expected service life does the HBG-240P-36A offer?

For warranty terms the datasheet refers to the warranty statement on MEAN WELL's website. The sheet states a typical life expectancy greater than 50,000 hours at an ambient of about 45°C or less, supporting use in long-service LED power applications.
