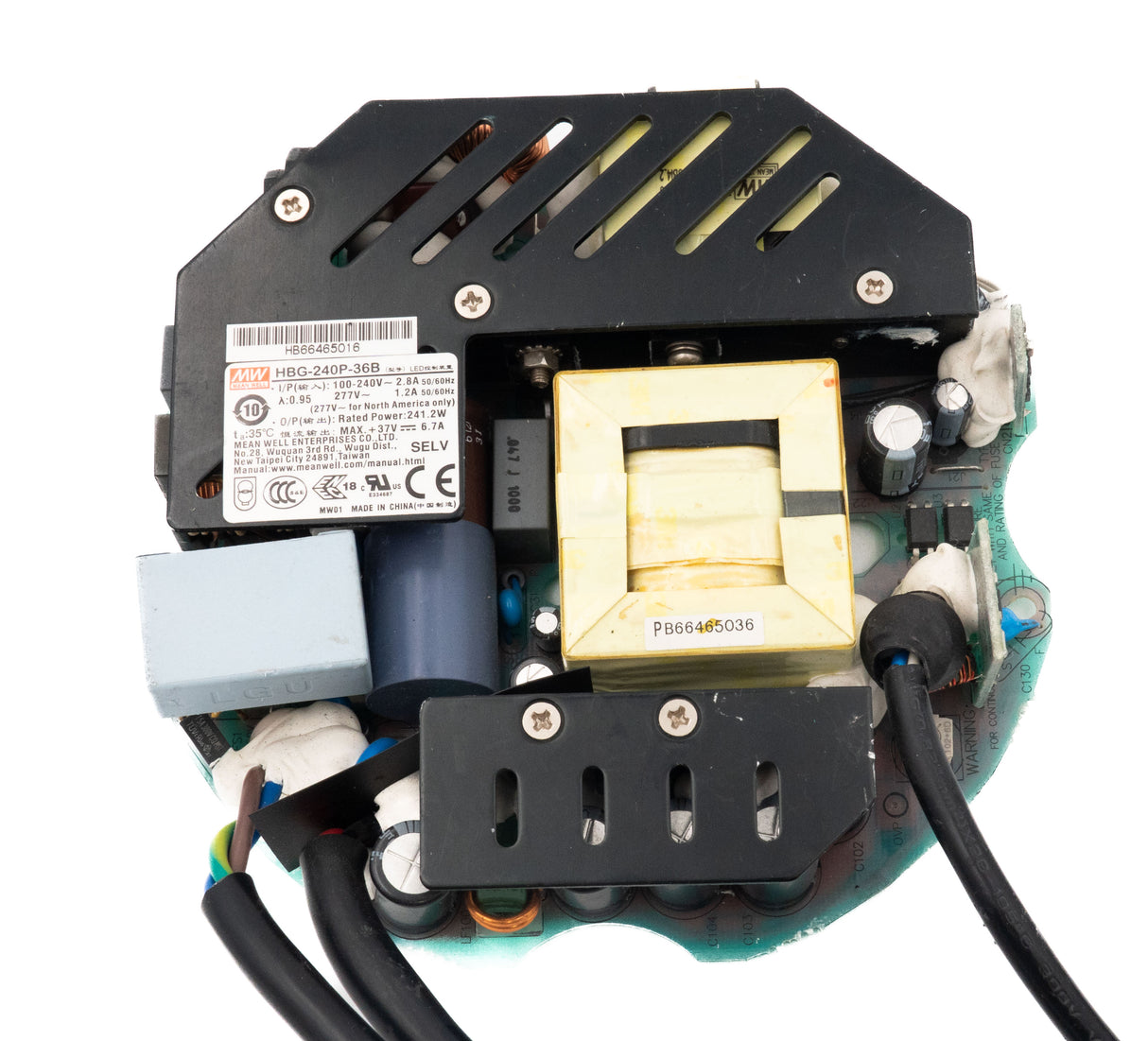

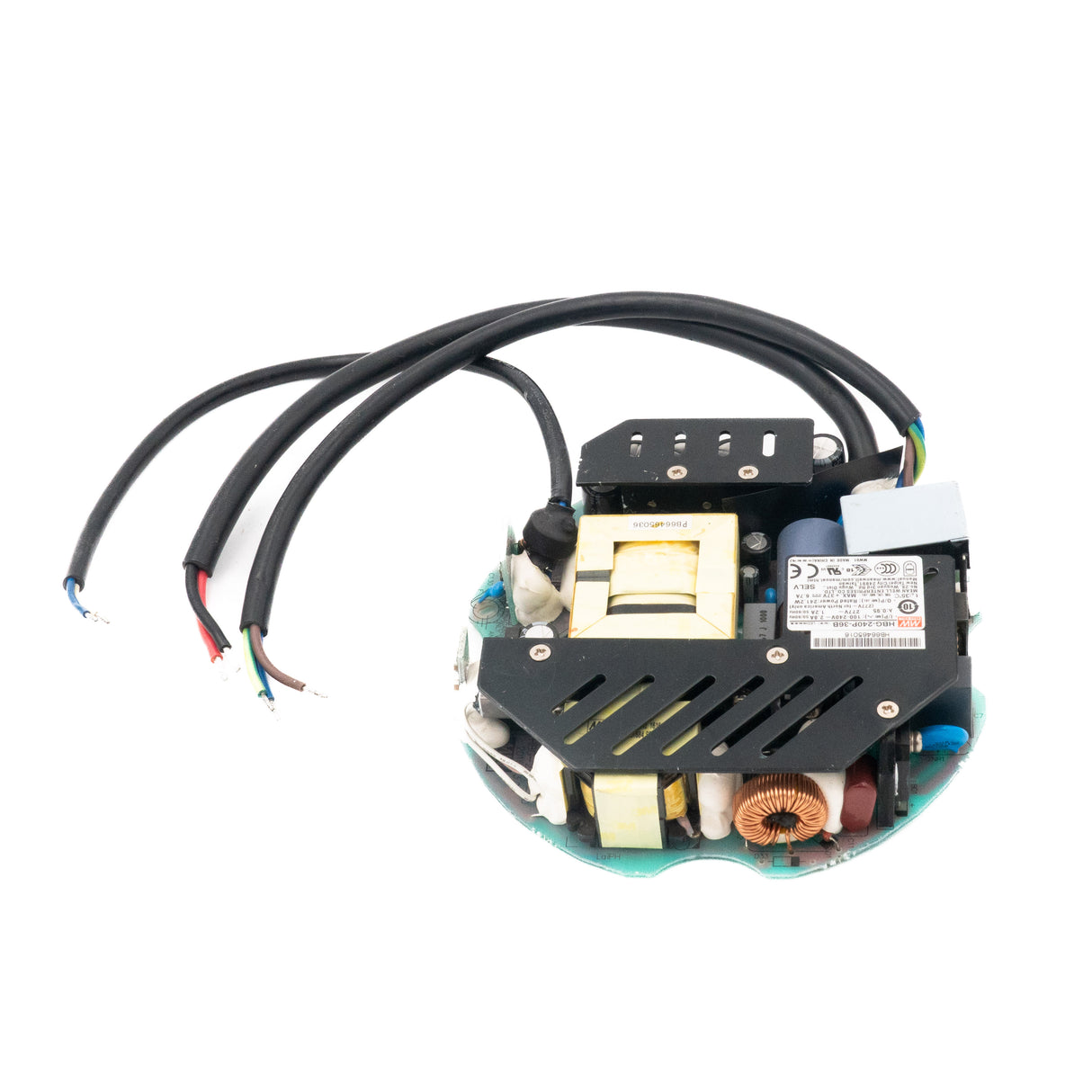

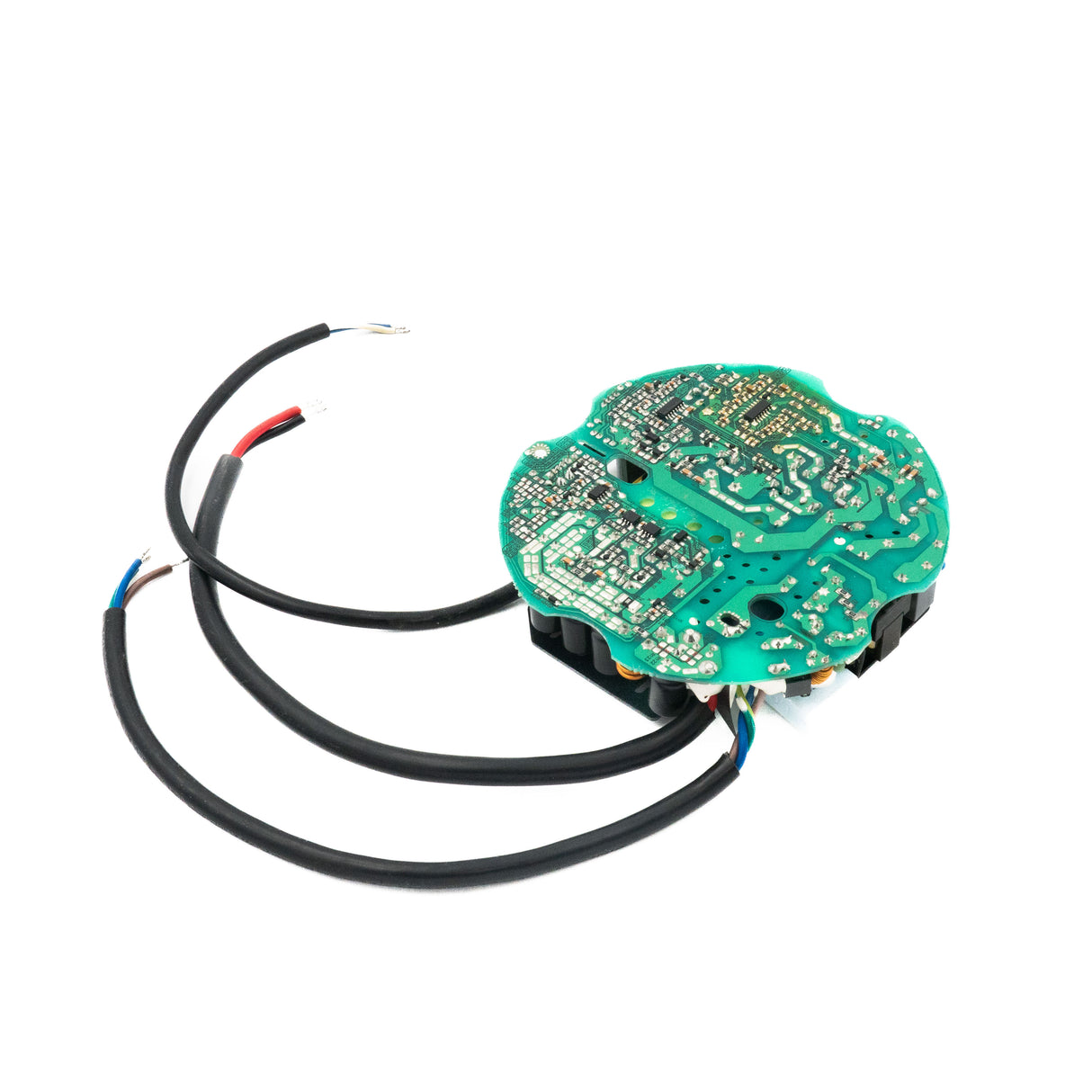

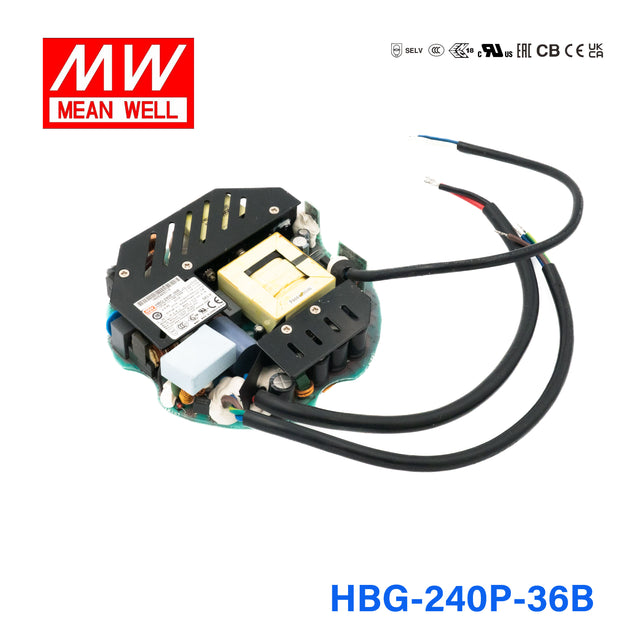

Mean Well HBG-240P-36B Power Supply 240PW 36V PCB Type - Dimmable
The HBG-240P is a 240W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+45℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+45℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1,GB19510.14, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
What are the main electrical ratings of the Mean Well HBG-240P-36B?
This model is rated for 240W output with a 36V output voltage and 6.7A rated current. It is designed for constant current mode output and also supports current adjustment over a 65% to 100% rated-current range.
What dimming options are available on the HBG-240P-36B?
The HBG-240P-36B is a dimmable version that supports 10V PWM, 1-10V, and resistance-based dimming control. That makes it a practical choice for lighting systems that need flexible brightness control without moving to a separate non-dimmable driver.
What input voltage range does this power supply accept?
This model accepts a wide input range of 90 to 295VAC or 127 to 417VDC. That broad range helps it fit projects that need stable performance across varying mains conditions.
Is the HBG-240P-36B suitable for demanding temperature conditions?
It is specified for operation down to -40°C and is built for challenging lighting environments with a high-temperature operating range. Buyers commonly look at this model when they need a driver for commercial or industrial applications exposed to cold starts or elevated ambient temperatures.
What makes the HBG-240P-36B a good fit for LED lighting applications?
This model combines 240W capacity, 36V output, constant current operation, and multiple dimming control methods in a circular PCB-type form factor. It is typically considered for LED fixtures where compact round-driver geometry and adjustable light output matter.
How does the HBG-240P-36B differ from a standard non-dimmable LED driver?
The main difference is that the HBG-240P-36B adds dimming support through 10V PWM, 1-10V, and resistance control while maintaining a 240W, 36V output platform. For buyers comparing models in the same power class, this version is better suited when controllable light levels are required.
What protection and compliance features are listed for this model?
The HBG-240P-36B includes over-current protection with hiccup mode and auto recovery, plus built-in active PFC. It is also listed with BS EN/EN61347-1 and BS EN/EN61347-2-13 safety standards and EN55015, EN61000-3-2 Class C, and EN61000-3-3 EMC standards.
What physical format and warranty does the HBG-240P-36B offer?
This driver uses a circular PCB-type design with dimensions of phi 99 x 26 mm, which can be useful where a round low-profile form factor is preferred. Mean Well lists this model with a typical lifetime over 50,000 hours and a 5-year warranty.
