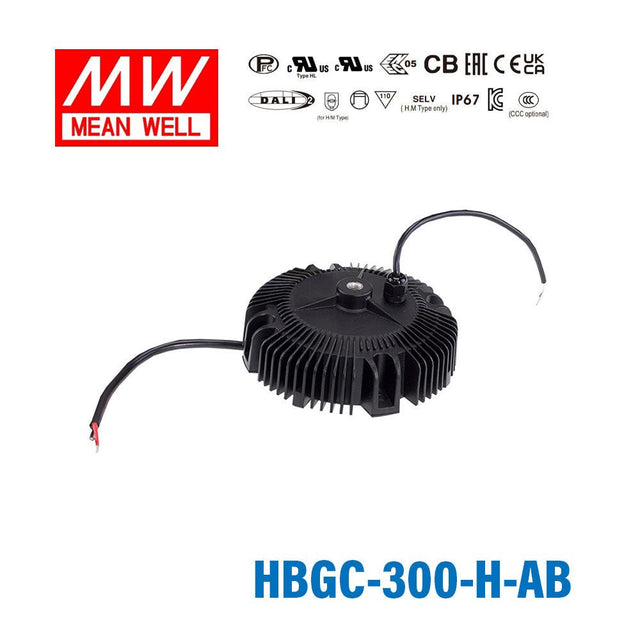

Mean Well HBGC-300-H-AB Power Supply 300W 5600mA - Adjustable and D...
The HBGC-300-H is a 300W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBGC Series
-
Power Rating301.6 Watt
-
Output Voltage62 Volt
-
Rated Current5.6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.85 lb
::specification::
Frequently Asked Questions
Can I use the HBGC-300-H-AB for dimmable LED downlights?
Yes, when the downlight system uses a constant current driver and its LED load stays within the 29-58V constant current range. This version also supports 0-10Vdc, 10V PWM, and resistance dimming, which can be useful in dimmable lighting systems.
Is the HBGC-300-H-AB a fit for dimmable signage LED modules?
It can be a fit for signage modules that are designed for constant current operation within 29-58V and where dimming control is needed. It is not a constant voltage supply for 12V or 24V signage products.
Can this model power a small LED array in a wet or exposed location?
Yes, if the LED array is a constant current load within the 29-58V CC range. The IP67 waterproof rating and -40°C to +80°C operating temperature range support use in harsh indoor or outdoor environments.
What should I check before pairing the HBGC-300-H-AB with an LED load?
Check that the LED assembly is built for constant current, not constant voltage, and that its total forward voltage falls within 29-58V. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver.
When should I choose the HBGC-300-H-AB instead of the other HBGC-300 models?
Within the 301.6W HBGC-300 family, H models use 5.6mA with a 29-58V CC range, M models use 2.8mA with a 58-116V CC range, and L models use 1.4mA with a 116-232V CC range. Compared with the H-A version, the H-AB adds 0-10Vdc, 10V PWM, and resistance dimming, while the H-ADA version uses DALI dimming.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HBGC-300 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HBGC-300-M-ADA Power Supply 300W 2800mA - Adjustable and DALI | 301.6W | 120V | 2.8A | IP67 | $109.84 | View |
| Mean Well HBGC-300-M-AB Power Supply 300W 2800mA - Adjustable and Dimmable | 301.6W | 120V | 2.8A | IP67 | $99.06 | View |
| Mean Well HBGC-300-M-A Power Supply 300W 2800mA - Adjustable | 301.6W | 120V | 2.8A | IP67 | $93.46 | View |
| Mean Well HBGC-300-L-ADA Power Supply 300W 1400mA - Adjustable and DALI | 301.6W | 240V | 1.4A | IP67 | $109.84 | View |
| Mean Well HBGC-300-L-AB Power Supply 300W 1400mA - Adjustable and Dimmable | 301.6W | 240V | 1.4A | IP67 | $99.06 | View |
| Mean Well HBGC-300-L-A Power Supply 300W 1400mA - Adjustable | 301.6W | 240V | 1.4A | IP67 | $93.46 | View |
| Mean Well HBGC-300-H-ADA Power Supply 300W 5600mA - Adjustable and DALI | 301.6W | 62V | 5.6A | IP67 | $109.84 | View |
| Mean Well HBGC-300-H-A Power Supply 300W 5600mA - Adjustable | 301.6W | 62V | 5.6A | IP67 | $93.46 | View |
