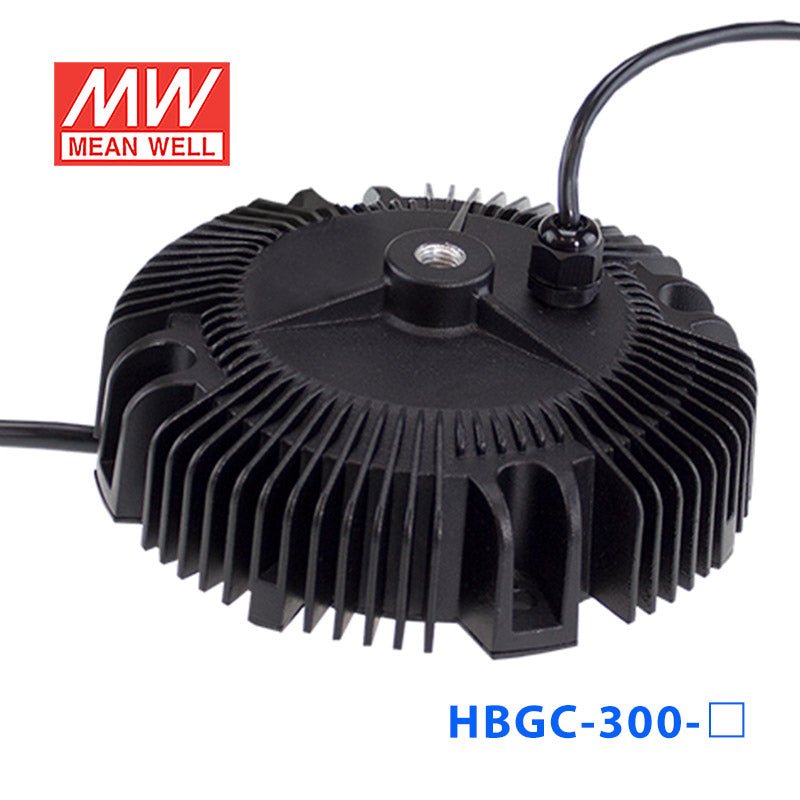

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

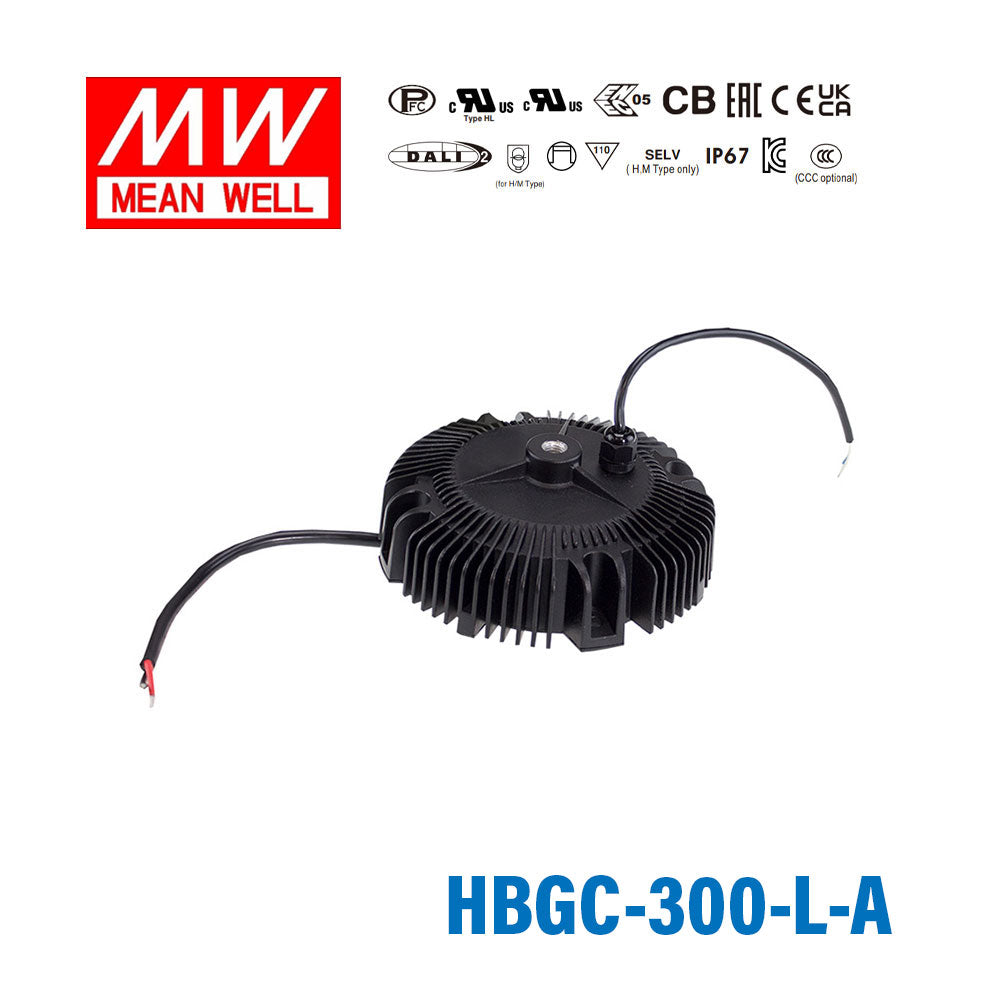

Mean Well HBGC-300-L-A Power Supply 300W 1400mA - Adjustable

Name: Mean Well HBGC-300-L-A Power Supply 300W 1400mA - Adjustable
Brand: Mean Well
SKU: HBGC-300-L-A
Price: 93.46 USD
Availability: InStock

SKU HBGC-300-L-A

$93.46 USD

Shipping calculated at checkout.

Select model — 5 in this family

HBGC-300-L-A

HBG-60-1400 1400mA Backorder $25.03 USD

HBG-60-1400P 1400mA PCB Type Low stock $25.20 USD

HBGC-300-L-A 1400mA Adjustable Low stock $93.46 USD

HBGC-300-L-AB 1400mA Adjustable and Dimmable Low stock $99.06 USD

HBGC-300-L-ADA 1400mA Adjustable and DALI Low stock $109.84 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HBGC-300-L-A is the model of this series: rated power 301.6W, typical efficiency 94.5%. Type A: output constant power adjustable via built-in potentiometer (IP67).

HBGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output. HBGC-300 operates from 90~305VAC and offers models with different rated current ranging between 1300mA and 8670mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40℃~+80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaire in the world.

Features

Wide input range 90 ~ 305VAC
Full power at 60~100% max current (Constant Power )
Built-in active PFC function
Circular metal housing design with IP67
Function options: output adjustable via potentiometer
Typical lifetime>50000 hours
5 years warranty

Specifications

HBGC-300-L-ASpecifications from the official datasheet (2024-10-11 edition)

OUTPUT

DEFAULT CURRENT: 1400mA
RATED POWER: 301.6W
CONSTANT CURRENT REGION: 116 ~232V
FULL POWER CURRENT RANGE: 1300~2170mA
OPEN CIRCUIT VOLTAGE (max.): 240V
CURRENT ADJ. RANGE: 650~2170mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME: 500ms/230VAC, 500ms/115VAC

INPUT

VOLTAGE RANGE^Note.2: 90 ~ 305VAC 127VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION: THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to "TOTAL HARMONIC DISTORTION (THD)" section
EFFICIENCY (Typ.): 94.5%
AC CURRENT (Typ.): 3A / 115VAC 1.6A / 230VAC 1.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 45A(twidth=1300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: Standby power consumption <0.5W for AB / ADA-Type Blank/A-Type please refer to Note. 5

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 241 ~ 275V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Tcase>80℃±5℃,derate power automatically by 6%/℃ max.

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;GB19510.1,GB19510.14; IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020

OTHERS

MTBF: 1772.9K hrs min. Telcordia SR-332 (Bellcore) ;175.4K hrs min. MIL-HDBK-217F (25℃)
LIFETIME^Note.4: 50000 hrs min.
DIMENSION: φ191.5mm *69mm
PACKING: 2.2Kg;8pcs/19.8Kg/2.09CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A (this model): output constant power adjustable via built-in potentiometer; IP67
AB: output constant power adjustable via built-in potentiometer + 3 in 1 dimming (0~10Vdc, 10V PWM signal and resistance); IP67
ADA: DALI-2 control technology with Io Adjustable via build-in Potentiometer; IP67

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
5. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED drive can only be used behind a switch without permanently connected to the mains.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. For A/AB/ADA type need to consider build in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

HBGC-300-L-A BLOCK DIAGRAM — BLOCK DIAGRAM

HBGC-300-L-A DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

HBGC-300-L-A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HBGC-300-L-A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBGC-300-L-A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBGC-300-L-A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

Typical applications

Bay lighting
Stage lighting
Flood lighting
Stadium lighting
Type HL for use in class I ,Division 2

Downloads

Datasheet1

HBGC-300-L-A datasheetHBGC-300-SPEC.PDF · 2024-10-11 edition PDF Download

Certificates9

Mean Well HBGC-300H-M KC Certificate PDF Download

Mean Well HBGC-300 CCC Certificate PDF Download

Mean Well HBGC-300 ENEC Certificate PDF Download

Mean Well HBGC-300 CB Certificate PDF Download

Mean Well HBGC-300 EMC Certificate PDF Download

Mean Well HBGC-300 UK-dec Certificate PDF Download

Mean Well HBGC-300 CE-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBGC-300-L Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HBGC-300-L-A for high-forward-voltage LED downlight arrays?

Yes, if the downlight array is built for constant current operation and its total forward voltage falls within the 116-232V constant current range. This is a 301.6W constant current driver, not a constant voltage supply for low-voltage LED products.

Is the HBGC-300-L-A suitable for long-series signage LED modules?

It can be suitable for signage module assemblies that are designed as constant current loads and operate within the 116-232V CC range. It is not intended for standard constant voltage signage systems.

Can this model power a small LED array in a demanding environment?

Yes, when the array is a constant current load within 116-232V. The IP67 waterproof rating and -40°C to +80°C case temperature (Tcase) working range support use in harsh indoor or outdoor conditions.

What makes an LED load compatible with the HBGC-300-L-A?

The LED load must require constant current drive, and the total forward voltage must stay within the 116-232V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no single LED count that applies to every load.

Is the HBGC-300-L-A a better choice for high-voltage LED strings than the H or M versions?

For higher forward voltage LED strings, the L version is the highest-voltage option in this 301.6W family because it operates across 116-232V CC. By comparison, M models are 58-116V CC at 2800mA and H models are 29-58V CC at 5600mA; within the L group, A is adjustable, AB adds 0-10Vdc, 10V PWM, and resistance dimming, and ADA adds DALI dimming.
