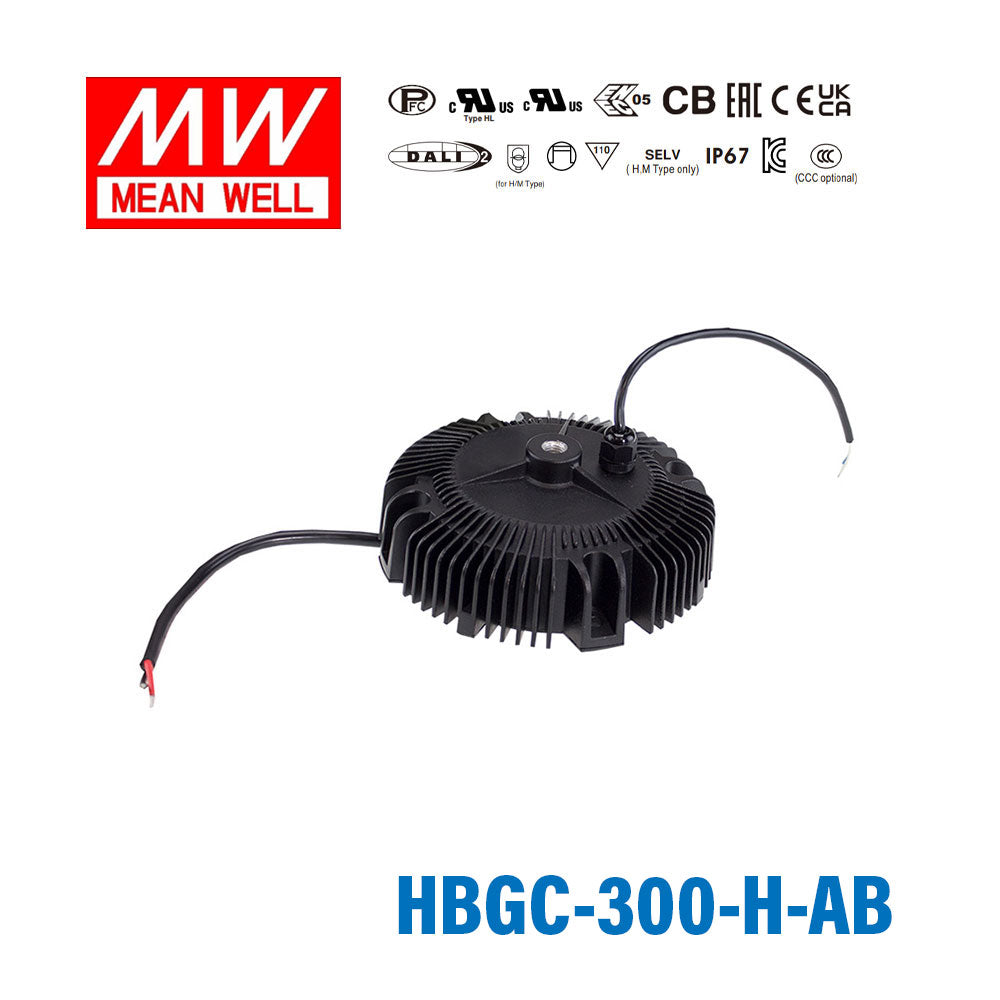

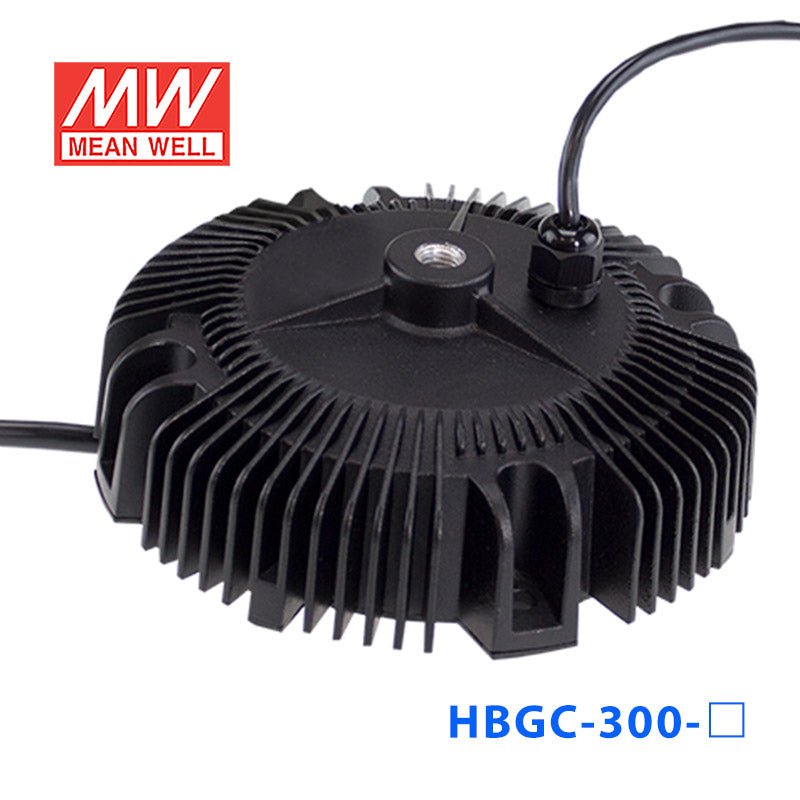

Mean Well HBGC-300-H-AB Power Supply 300W 5600mA - Adjustable and D...
Overview
HBGC-300-H-AB is the model of this series: rated power 301.6W, typical efficiency 92.5%. Type AB: output constant power adjustable via built-in potentiometer + 3 in 1 dimming (0~10Vdc, 10V PWM signal and resistance) (IP67).
HBGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output. HBGC-300 operates from 90~305VAC and offers models with different rated current ranging between 1300mA and 8670mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40℃~+80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaire in the world. HBGC-300 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Wide input range 90 ~ 305VAC
- Full power at 60~100% max current (Constant Power )
- Built-in active PFC function
- Circular metal housing design with IP67
- Function options: output adjustable via potentiometer; 3 in 1 dimming (Dim to off and Isolation)
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DEFAULT CURRENT
- 5600mA
- RATED POWER
- 301.6W
- CONSTANT CURRENT REGION
- 29 ~ 58V
- FULL POWER CURRENT RANGE
- 5200~8670mA
- OPEN CIRCUIT VOLTAGE (max.)
- 62V
- CURRENT ADJ. RANGE
- 2600~8670mA
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- SET UP TIME
- 500ms/230VAC, 500ms/115VAC
INPUT
- VOLTAGE RANGENote.2
- 90 ~ 305VAC 127VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
- TOTAL HARMONIC DISTORTION
- THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to "TOTAL HARMONIC DISTORTION (THD)" section
- EFFICIENCY (Typ.)
- 92.5%
- AC CURRENT (Typ.)
- 3A / 115VAC 1.6A / 230VAC 1.3A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 45A(twidth=1300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- Standby power consumption <0.5W for AB / ADA-Type Blank/A-Type please refer to Note. 5
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 61 ~ 78V Shut down output voltage, re-power on to recovery
- OVER TEMPERATURE
- Tcase>80℃±5℃,derate power automatically by 6%/℃ max.
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+80℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;GB19510.1,GB19510.14; IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020
OTHERS
- MTBF
- 1772.9K hrs min. Telcordia SR-332 (Bellcore) ;175.4K hrs min. MIL-HDBK-217F (25℃)
- LIFETIMENote.4
- 50000 hrs min.
- DIMENSION
- φ191.5mm *69mm
- PACKING
- 2.2Kg;8pcs/19.8Kg/2.09CUFT
Certifications & ratings
- Type
- HL
MODEL ENCODING
- A
- output constant power adjustable via built-in potentiometer; IP67
- AB (this model)
- output constant power adjustable via built-in potentiometer + 3 in 1 dimming (0~10Vdc, 10V PWM signal and resistance); IP67
- ADA
- DALI-2 control technology with Io Adjustable via build-in Potentiometer; IP67
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 3. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 4. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 5. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED drive can only be used behind a switch without permanently connected to the mains.
- 6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 9. For A/AB/ADA type need to consider build in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.
Technical drawings
Typical applications
- Bay lighting
- Stage lighting
- Flood lighting
- Stadium lighting
- Type HL for use in class I ,Division 2
Downloads
Datasheet1
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the HBGC-300-H-AB for dimmable LED downlights?
Yes, when the downlight system uses a constant current driver and its LED load stays within the 29-58V constant current range. This version also supports 0-10Vdc, 10V PWM, and resistance dimming, which can be useful in dimmable lighting systems.
Is the HBGC-300-H-AB a fit for dimmable signage LED modules?
It can be a fit for signage modules that are designed for constant current operation within 29-58V and where dimming control is needed. It is not a constant voltage supply for 12V or 24V signage products.
Can this model power a small LED array in a wet or exposed location?
Yes, if the LED array is a constant current load within the 29-58V CC range. The IP67 waterproof rating and -40°C to +80°C case temperature (Tcase) working range support use in harsh indoor or outdoor environments.
What should I check before pairing the HBGC-300-H-AB with an LED load?
Check that the LED assembly is built for constant current, not constant voltage, and that its total forward voltage falls within 29-58V. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver.
When should I choose the HBGC-300-H-AB instead of the other HBGC-300 models?
Within the 301.6W HBGC-300 family, H models use 5600mA with a 29-58V CC range, M models use 2800mA with a 58-116V CC range, and L models use 1400mA with a 116-232V CC range. Compared with the H-A version, the H-AB adds 0-10Vdc, 10V PWM, and resistance dimming, while the H-ADA version uses DALI dimming.
