Can I use the HBGC-300-L-A for high-forward-voltage LED downlight arrays?

Yes, if the downlight array is built for constant current operation and its total forward voltage falls within the 116-232V constant current range. This is a 301.6W constant current driver, not a constant voltage supply for low-voltage LED products.

Is the HBGC-300-L-A suitable for long-series signage LED modules?

It can be suitable for signage module assemblies that are designed as constant current loads and operate within the 116-232V CC range. It is not intended for standard constant voltage signage systems.

Can this model power a small LED array in a demanding environment?

Yes, when the array is a constant current load within 116-232V. The IP67 waterproof rating and -40°C to +80°C operating temperature range support use in harsh indoor or outdoor conditions.

What makes an LED load compatible with the HBGC-300-L-A?

The LED load must require constant current drive, and the total forward voltage must stay within the 116-232V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no single LED count that applies to every load.

Is the HBGC-300-L-A a better choice for high-voltage LED strings than the H or M versions?

For higher forward voltage LED strings, the L version is the highest-voltage option in this 301.6W family because it operates across 116-232V CC. By comparison, M models are 58-116V CC at 2.8mA and H models are 29-58V CC at 5.6mA; within the L group, A is adjustable, AB adds 0-10Vdc, 10V PWM, and resistance dimming, and ADA adds DALI dimming.

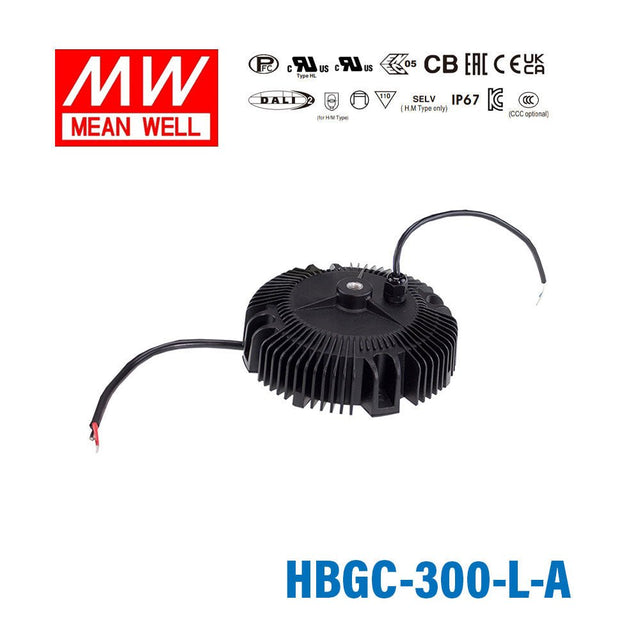

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well HBGC-300-L-A Power Supply 300W 1400mA - Adjustable

Name: Mean Well HBGC-300-L-A Power Supply 300W 1400mA - Adjustable
Brand: Mean Well
SKU: HBGC-300-L-A
Price: 93.46 USD
Availability: InStock

SKU:

HBGC-300-L-A

$93.46 USD

Shipping calculated at checkout.

Select model — 5 in this family

HBGC-300-L-A

HBG-60-1400 1400mA Low stock $25.03 USD

HBG-60-1400P 1400mA PCB Type Low stock $25.20 USD

HBGC-300-L-A 1400mA Adjustable Low stock $93.46 USD

HBGC-300-L-AB 1400mA Adjustable and Dimmable Low stock $99.06 USD

HBGC-300-L-ADA 1400mA Adjustable and DALI Low stock $109.84 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

The HBGC-300-L is a 300W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ 3 years warranty

Brand

Mean Well
Series

HBGC Series
Power Rating

301.6 Watt
Output Voltage

240 Volt
Rated Current

1.4 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

7.54 in
Width

7.54 in
Height

2.72 in
Weight

4.85 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HBGC-300-M-ADA Power Supply 300W 2800mA - Adjustable and DALI	301.6W	120V	2.8A	IP67	$109.84	View
Mean Well HBGC-300-M-AB Power Supply 300W 2800mA - Adjustable and Dimmable	301.6W	120V	2.8A	IP67	$99.06	View
Mean Well HBGC-300-M-A Power Supply 300W 2800mA - Adjustable	301.6W	120V	2.8A	IP67	$93.46	View
Mean Well HBGC-300-L-ADA Power Supply 300W 1400mA - Adjustable and DALI	301.6W	240V	1.4A	IP67	$109.84	View
Mean Well HBGC-300-L-AB Power Supply 300W 1400mA - Adjustable and Dimmable	301.6W	240V	1.4A	IP67	$99.06	View
Mean Well HBGC-300-H-ADA Power Supply 300W 5600mA - Adjustable and DALI	301.6W	62V	5.6A	IP67	$109.84	View
Mean Well HBGC-300-H-AB Power Supply 300W 5600mA - Adjustable and Dimmable	301.6W	62V	5.6A	IP67	$99.06	View
Mean Well HBGC-300-H-A Power Supply 300W 5600mA - Adjustable	301.6W	62V	5.6A	IP67	$93.46	View
