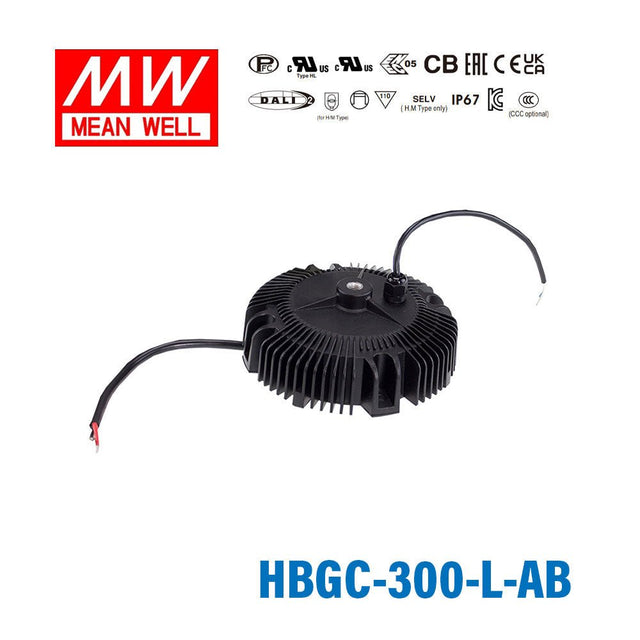

Mean Well HBGC-300-L-AB Power Supply 300W 1400mA - Adjustable and D...
The HBGC-300-L is a 300W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBGC Series
-
Power Rating301.6 Watt
-
Output Voltage240 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.85 lb
::specification::
Frequently Asked Questions
Can I use the HBGC-300-L-AB for dimmable high-voltage LED downlight arrays?
Yes, if the LED downlight array is designed for constant current operation and its total forward voltage is within 116-232V. This version also supports 0-10Vdc, 10V PWM, and resistance dimming for applications that need output control.
Is the HBGC-300-L-AB suitable for dimmable signage module assemblies?
It can be suitable when the signage assembly is a constant current load in the 116-232V range and dimming control is required. It is not a constant voltage power supply for low-voltage signage modules.
Can this driver power a small LED array in outdoor or washdown areas?
Yes, for a constant current LED array whose forward voltage remains within 116-232V. The IP67 waterproof rating and -40°C to +80°C operating range make it appropriate for exposed environmental conditions.
How do I size an LED load for the HBGC-300-L-AB?
Match it to a constant current LED load with a total forward voltage between 116V and 232V. The number of LEDs depends on each LED's forward voltage, so compatibility is based on the full series voltage rather than a specific LED count.
How does the HBGC-300-L-AB differ from the other 300W HBGC models?
All listed models are 301.6W, but the output classes differ: H models are 5.6mA with a 29-58V CC range, M models are 2.8mA with a 58-116V CC range, and L models are 1.4mA with a 116-232V CC range. Within the L versions, A is adjustable, AB adds 0-10Vdc, 10V PWM, and resistance dimming, and ADA adds DALI dimming.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HBGC-300 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HBGC-300-M-ADA Power Supply 300W 2800mA - Adjustable and DALI | 301.6W | 120V | 2.8A | IP67 | $109.84 | View |
| Mean Well HBGC-300-M-AB Power Supply 300W 2800mA - Adjustable and Dimmable | 301.6W | 120V | 2.8A | IP67 | $99.06 | View |
| Mean Well HBGC-300-M-A Power Supply 300W 2800mA - Adjustable | 301.6W | 120V | 2.8A | IP67 | $93.46 | View |
| Mean Well HBGC-300-L-ADA Power Supply 300W 1400mA - Adjustable and DALI | 301.6W | 240V | 1.4A | IP67 | $109.84 | View |
| Mean Well HBGC-300-L-A Power Supply 300W 1400mA - Adjustable | 301.6W | 240V | 1.4A | IP67 | $93.46 | View |
| Mean Well HBGC-300-H-ADA Power Supply 300W 5600mA - Adjustable and DALI | 301.6W | 62V | 5.6A | IP67 | $109.84 | View |
| Mean Well HBGC-300-H-AB Power Supply 300W 5600mA - Adjustable and Dimmable | 301.6W | 62V | 5.6A | IP67 | $99.06 | View |
| Mean Well HBGC-300-H-A Power Supply 300W 5600mA - Adjustable | 301.6W | 62V | 5.6A | IP67 | $93.46 | View |
