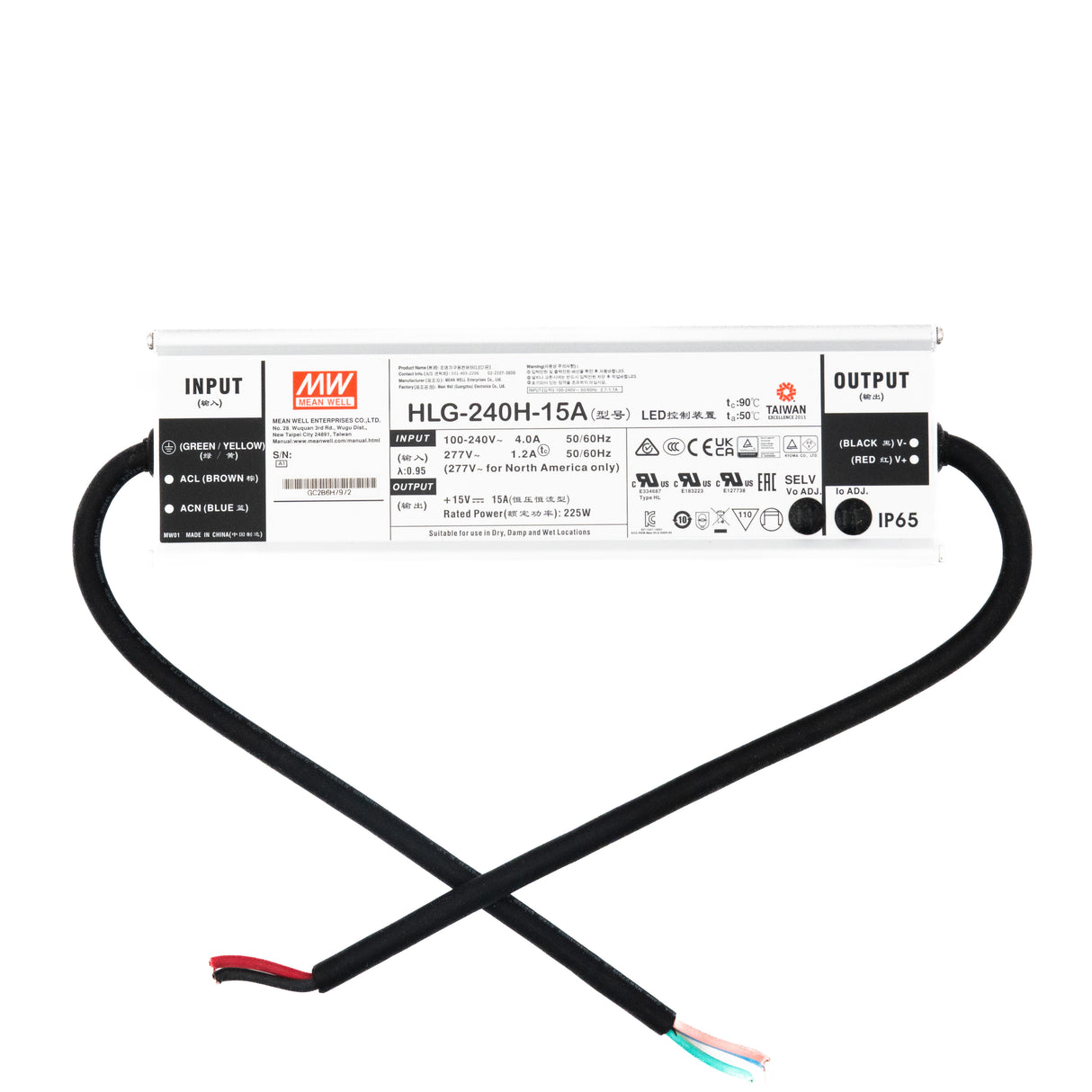

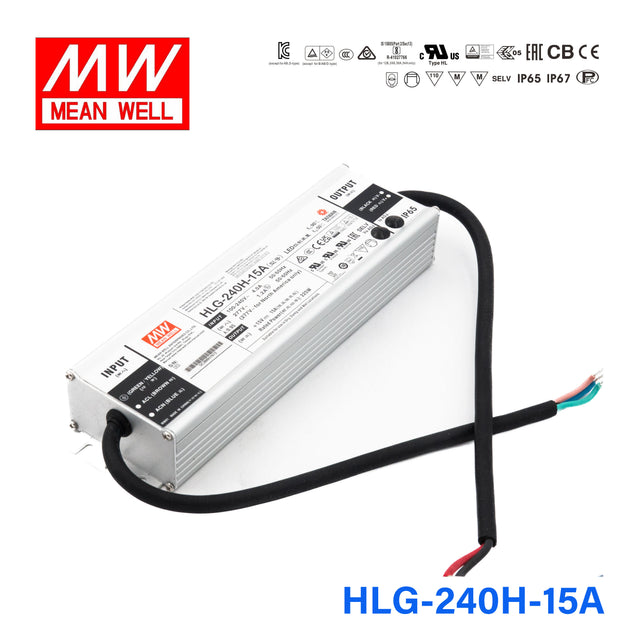

Mean Well HLG-240H-15A Power Supply 225W 15V - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-240H-15A Power Supply 225W 15V - Adjustable
The HLG-240H is a 240W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating225 Watt
-
Output Voltage15 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
Can I use the HLG-240H-15A to power 15V LED strips in a covered outdoor or semi-sheltered area?
Yes. The HLG-240H-15A delivers 225W at 15V with up to 15A and carries an IP65 water-resistant rating. It is protected against low-pressure water jets and dust, making it suitable for covered patios, carports, canopies, and other semi-sheltered outdoor locations.
Is the adjustable output on the HLG-240H-15A helpful for fine-tuning LED brightness?
Yes. The built-in potentiometer lets you adjust both output voltage and current. With a CC voltage range of 7-15V, you can lower the drive level to reduce brightness or match the driver to a specific LED module without needing an external dimmer or controller.
Can the HLG-240H-15A drive 15V LED modules for commercial display or retail applications?
Yes. At 225W and 15V, this driver handles substantial 15V LED loads for display cases, retail shelf lighting, or illuminated signage. The adjustable output is especially useful for matching the driver precisely to your module string voltage, reducing wasted energy as heat.
How many meters of 15V LED strip can the HLG-240H-15A power?
Divide 225W by your strip's rated power per meter. For a strip drawing 10W/m, you could run up to 22.5 meters (225W / 10W per meter). Always check your strip's rated power per meter and keep total load at or below 225W.
Is the HLG-240H-15A protected enough for a damp indoor environment like a parking garage?
Yes. IP65 provides full dust protection and resistance to low-pressure water jets, which is more than sufficient for damp indoor environments such as parking garages, basements, or commercial kitchens. For locations with direct rain exposure or submersion risk, an IP67-rated variant like the HLG-240H-15 would be more appropriate.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-240H Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-240H-24 Power Supply 240W 24V | 240W | 24V | 10A | IP67 | $72.97 | View |
| Mean Well HLG-240H-12A Power Supply 192W 12V - Adjustable | 192W | 12V | 16A | IP65 | $59.00 | View |
| Mean Well HLG-240H-12 Power Supply 192W 12V | 192W | 12V | 16A | IP67 | $62.47 | View |
| Mean Well HLG-240H-48A Power Supply 240W 48V - Adjustable | 240W | 48V | 5A | IP65 | $72.97 | View |
| Mean Well HLG-240H-42B Power Supply 240W 42V- Dimmable | 240W | 42V | 5.72A | IP67 | $64.45 | View |
| Mean Well HLG-240H-42A Power Supply 240W 42V - Adjustable | 240W | 42V | 5.72A | IP65 | $72.81 | View |
| Mean Well HLG-240H-24A Power Supply 240W 24V - Adjustable | 240W | 24V | 10A | IP65 | $60.50 | View |
