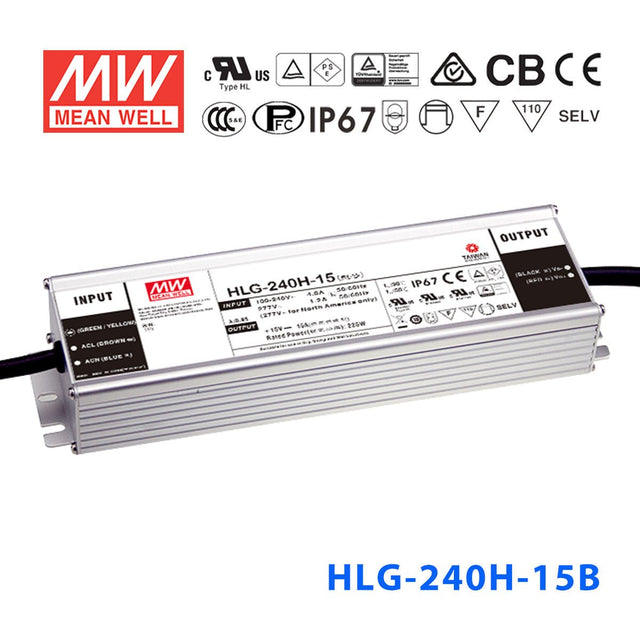

Mean Well HLG-240H-15AB Power Supply 225W 15V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-240H-15AB Power Supply 225W 15V - Adjustable and Dimm...
The HLG-240H is a 240W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating225 Watt
-
Output Voltage15 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
Can I use the HLG-240H-15AB for a dimmable 15V LED installation in a hospitality setting?
Yes. The HLG-240H-15AB outputs 225W at 15V and offers both a built-in adjustment potentiometer and an external dimming input (1-10V, PWM, or resistance). This makes it well suited for hotel lobbies, restaurants, or event spaces where adjustable ambient LED lighting is needed.
Is the HLG-240H-15AB suitable for powering dimmable 15V LED cove or accent lighting?
Yes. With 225W at 15V and dual control options, you can set the baseline output with the potentiometer and then adjust brightness dynamically via the dimming input. This two-level control is ideal for architectural cove lighting or accent illumination that needs scene-based adjustments.
Can the HLG-240H-15AB power 15V LED strips for a large commercial display with dimming?
Yes. At 225W and 15V, the driver supports extensive 15V LED strip arrays. The dimming input lets you adjust brightness for time-of-day schedules or energy-saving modes, while the adjustable potentiometer allows precise voltage tuning to match your specific LED strips.
How many meters of 15V LED strip can the HLG-240H-15AB handle?
Divide 225W by your strip's power consumption per meter. For example, a strip rated at 12W/m would allow approximately 18.7 meters (225W / 12W per meter). Always check your strip's rated power per meter and keep total load at or below 225W.
Can the HLG-240H-15AB be used in a covered outdoor area exposed to splashing water?
Yes. Its IP65 rating protects against low-pressure water jets from any direction and full dust ingress, which is suitable for covered outdoor areas and mild splash zones. For fully exposed rain or submersion-risk locations, consider an IP67-rated model such as the HLG-240H-15.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-240H Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-240H-24 Power Supply 240W 24V | 240W | 24V | 10A | IP67 | $72.97 | View |
| Mean Well HLG-240H-12A Power Supply 192W 12V - Adjustable | 192W | 12V | 16A | IP65 | $59.00 | View |
| Mean Well HLG-240H-12 Power Supply 192W 12V | 192W | 12V | 16A | IP67 | $62.47 | View |
| Mean Well HLG-240H-48A Power Supply 240W 48V - Adjustable | 240W | 48V | 5A | IP65 | $72.97 | View |
| Mean Well HLG-240H-42B Power Supply 240W 42V- Dimmable | 240W | 42V | 5.72A | IP67 | $64.45 | View |
| Mean Well HLG-240H-42A Power Supply 240W 42V - Adjustable | 240W | 42V | 5.72A | IP65 | $72.81 | View |
| Mean Well HLG-240H-24A Power Supply 240W 24V - Adjustable | 240W | 24V | 10A | IP65 | $60.50 | View |
