Can I use the HVG-240-48A for 48V LED strip lighting in commercial displays?

Yes, if the strip system is compatible with 48V output and the total load stays within 240W and 5A. This model is often suited to higher-voltage lighting runs because it provides up to 48V with a 24-48V constant current range.

Is this a good choice for indoor or sheltered outdoor signage lighting?

It can be used for signage lighting where the load matches 48V, 5A, and 240W, and where an IP65 enclosure is appropriate. IP65 is water-resistant, so it is more appropriate for sheltered outdoor exposure than for locations with standing water.

Can the HVG-240-48A run 48V linear lighting for a long architectural cove?

Yes, if the fixture or strip is designed for 48V operation and the total draw does not exceed 240W. The 24-48V CC range gives it flexibility for constant current lighting loads within that voltage window.

How much 48V LED strip can this driver support?

The maximum strip load is 240W, so the length estimate is 240W divided by the strip watts per meter. For example, maximum length in meters = 240 ÷ strip W/m, but you still need to confirm the strip is 48V compatible and check your strip rated power per meter.

Can the HVG-240-48A be used outdoors?

Yes, for outdoor locations where an IP65 water-resistant driver is acceptable. It is not the same as an IP67 waterproof model, so it is better suited to rain and splash exposure than to environments where the unit may sit in water.

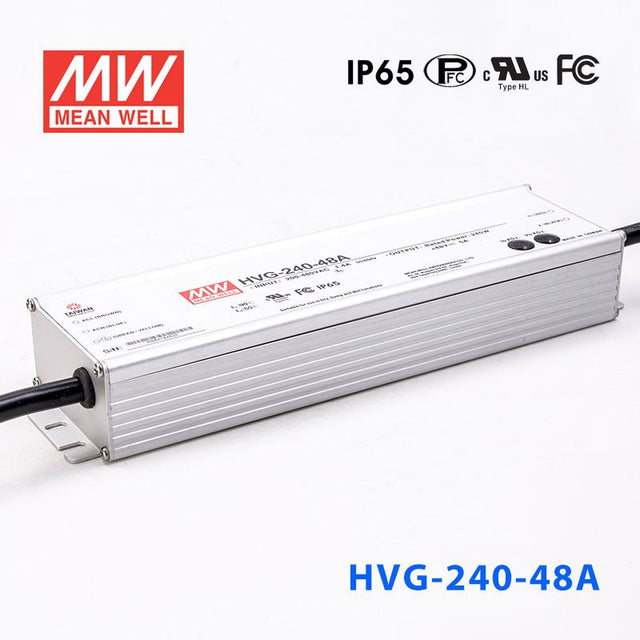

Mean Well HVG-240-48A Power Supply 240W 48V - Adjustable

Name: Mean Well HVG-240-48A Power Supply 240W 48V - Adjustable
Brand: Mean Well
SKU: HVG-240-48A
Price: 85.92 USD
Availability: InStock

The HVG-240 is a 240W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

240 Watt
Output Voltage

48 Volt
Rated Current

5 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.89 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HVG-240-48AB LED Power Supplies 240W 48V 5A CV + CC IP65	240W	48V	5A	IP65	$85.59	View
Mean Well HVG-240-24A Power Supply 240W 24V - Adjustable	240W	24V	10A	IP65	$85.92	View
