Mean Well

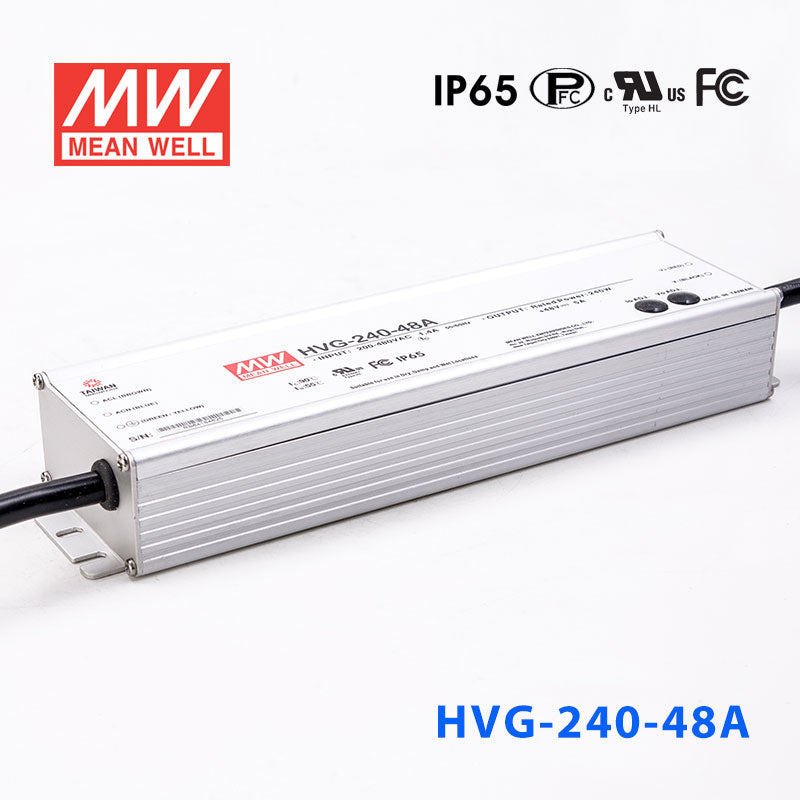

Mean Well HVG-240-48A Power Supply 240W 48V - Adjustable

Name: Mean Well HVG-240-48A Power Supply 240W 48V - Adjustable
Brand: Mean Well
SKU: HVG-240-48A
Price: 95.47 USD
Availability: InStock

Mean Well HVG-240-48A Power Supply 240W 48V - Adjustable

On Backorder

$95.47 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	180~528VAC; 254~747VDC
AC inrush current (max.)	COLD START 50A(twidth=850 s measured at 50% I μ peak) at 480VAC; Per NEMA 410
DC adjustment range	±10% rated output voltage
Current adjustment range	55%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over-voltage protection	110%~140% rated output voltage
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90°C (refer to output derating curve)
Safety standards	UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input	UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type	SJTW 14AWGx2C (30cm)
Connection Output B-Type	SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	254.2 x 68 x 38.8
