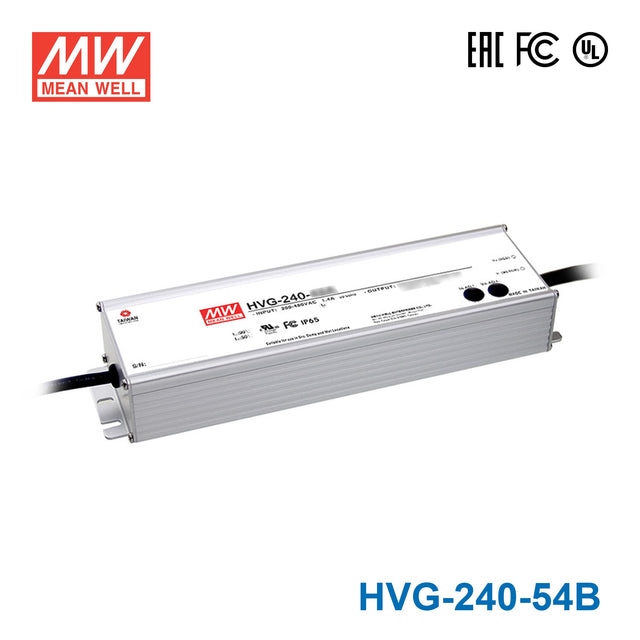

Mean Well HVG-240-54B Power Supply 240W 54V - Dimmable

Name: Mean Well HVG-240-54B Power Supply 240W 54V - Dimmable
Brand: Mean Well
SKU: HVG-240-54B
Price: 93.69 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU:

HVG-240-54B

$93.69 USD ~~$343.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HVG-240 is a 240W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Brand

Mean Well
Series

HVG Series
Power Rating

243 Watt
Output Voltage

54 Volt
Rated Current

4.5 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.89 lb

Frequently Asked Questions

Can I use the HVG-240-54B with a 54V LED strip lighting system?

Yes, if the lighting load is built for 54V and stays within the driver's 243W and 4.5A limits. This model operates in constant current mode over a 27-54V range, so the load has to fit that range.

Is this power supply a fit for outdoor 54V sign lighting?

Yes, for 54V sign or display lighting loads that need up to 243W total output. The IP67 waterproof rating is useful for outdoor sign cabinets and exposed locations where water protection matters.

Can the HVG-240-54B be used for wet-location landscape or facade lighting?

It can be used for 54V lighting loads that stay within 243W and 4.5A. The IP67 housing and -40°C to +90°C operating temperature range make it suitable for wet and outdoor conditions.

Is this suitable for a 54V commercial or industrial lighting fixture?

Yes, if the fixture requires a 54V load within the driver's 27-54V constant current range. The driver can supply up to 243W and 4.5A, so the fixture's electrical demand must remain inside those values.

How do I estimate the maximum 54V LED strip length for this driver?

Use the power rating for the calculation: 243W divided by the strip watts per meter equals the estimated maximum strip length. The formula is 243W / strip W per meter = maximum meters, but check your strip rated power per meter before sizing.

Is the HVG-240-54B suitable for fully exposed outdoor use?

Yes, this model is rated IP67 waterproof, which makes it a stronger choice for exposed outdoor and wet locations than water-resistant housings. It is also rated for operation from -40°C to +90°C.

What are the 54V options in the HVG 240W range?

The 54V models in this range are HVG-240-54A, HVG-240-54AB, and HVG-240-54B, each rated at 243W, 54V, and 4.5A. The HVG-240-54D2 is listed at 240W.
