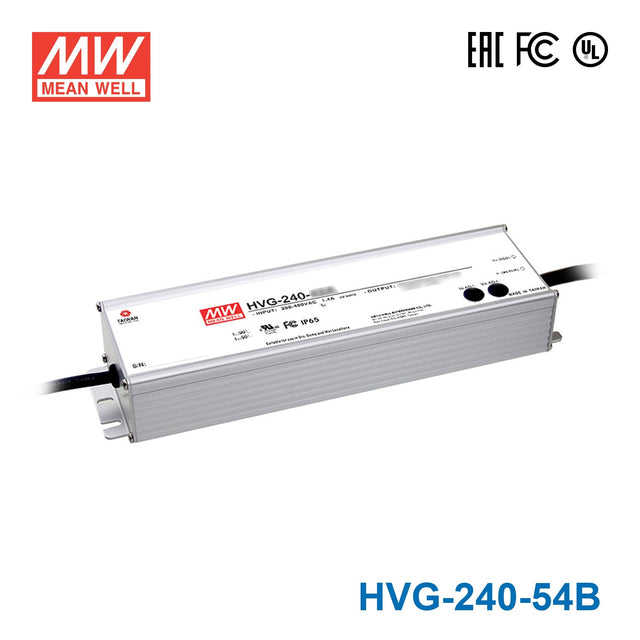

Mean Well HVG-240-54B Power Supply 240W 54V

Name: Mean Well HVG-240-54B Power Supply 240W 54V - Dimmable 4.5A
Brand: Mean Well
SKU: HVG-240-54B
Price: 93.69 USD
Availability: InStock

Overview

HVG-240-54B is the 54V output model of this series: rated current 4.5A, rated power 243W, typical efficiency 93%. Type B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).

HVG-240 series is a 240W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-240 operates from 180~528 VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-240-54BSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 54V
CONSTANT CURRENT REGION^Note.4: 27 ~ 54V
RATED CURRENT: 4.5A
RATED POWER: 243W
RIPPLE & NOISE (max.)^Note.2: 350mVp-p
VOLTAGE ADJ. RANGE: 50 ~ 57V
CURRENT ADJ. RANGE: 2.25 ~ 4.5A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 150ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 12ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC, @ load≧60%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 0.8A / 347VAC 0.6A / 480VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=532μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 60 ~ 67V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC Part 15 Subpart B,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1704.5K hrs min. Telcordia SR-332(Bellcore) ; 141.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 254.2*68*38.8mm (L*W*H)
PACKING: 1.31Kg; 12pcs/15.7Kg/0.78CUFT

Certifications & ratings

IP level: IP65 IP67
Type: HL

MODEL ENCODING

A: Io and Vo adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request; IP67
D2: Built-in Smart timer dimming and programmable function; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-240-54B Block Diagram — Block Diagram

HVG-240-54B DIMMING OPERATION — DIMMING OPERATION

HVG-240-54B H V G - 2 4 0 series — H V G - 2 4 0 series

HVG-240-54B OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

HVG-240-54B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-240-54B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-240-54B Dimensions (mm) — Dimensions (mm)

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-240-54B datasheetHVG-240-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates3

Mean Well HVG-240 FCC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HVG-240-54 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-240-54B with a 54V LED strip lighting system?

Yes, if the lighting load is built for 54V and stays within the driver's 243W and 4.5A limits. This model operates in constant current mode over a 27-54V range, so the load has to fit that range.

Is this power supply a fit for outdoor 54V sign lighting?

Yes, for 54V sign or display lighting loads that need up to 243W total output. The IP65/IP67 rating is useful for outdoor sign cabinets and exposed locations where water protection matters.

Can the HVG-240-54B be used for wet-location landscape or facade lighting?

It can be used for 54V lighting loads that stay within 243W and 4.5A. The IP65/IP67 rating and -40°C to +90°C case temperature (Tcase) range make it suitable for wet and outdoor conditions, with load derating at higher temperatures.

Is this suitable for a 54V commercial or industrial lighting fixture?

Yes, if the fixture requires a 54V load within the driver's 27-54V constant current range. The driver can supply up to 243W and 4.5A, so the fixture's electrical demand must remain inside those values.

How do I estimate the maximum 54V LED strip length for this driver?

Use the power rating for the calculation: 243W divided by the strip watts per meter equals the estimated maximum strip length. The formula is 243W / strip W per meter = maximum meters, but check your strip rated power per meter before sizing.

Is the HVG-240-54B suitable for fully exposed outdoor use?

Yes, this model is rated IP65/IP67, which suits exposed outdoor and wet locations. Its working case temperature (Tcase) range is -40°C to +90°C; at rated current the maximum ambient is about 55°C (230VAC).

What are the 54V options in the HVG 240W range?

The 54V models in this range are HVG-240-54A, HVG-240-54AB, and HVG-240-54B, each rated at 243W, 54V, and 4.5A.
