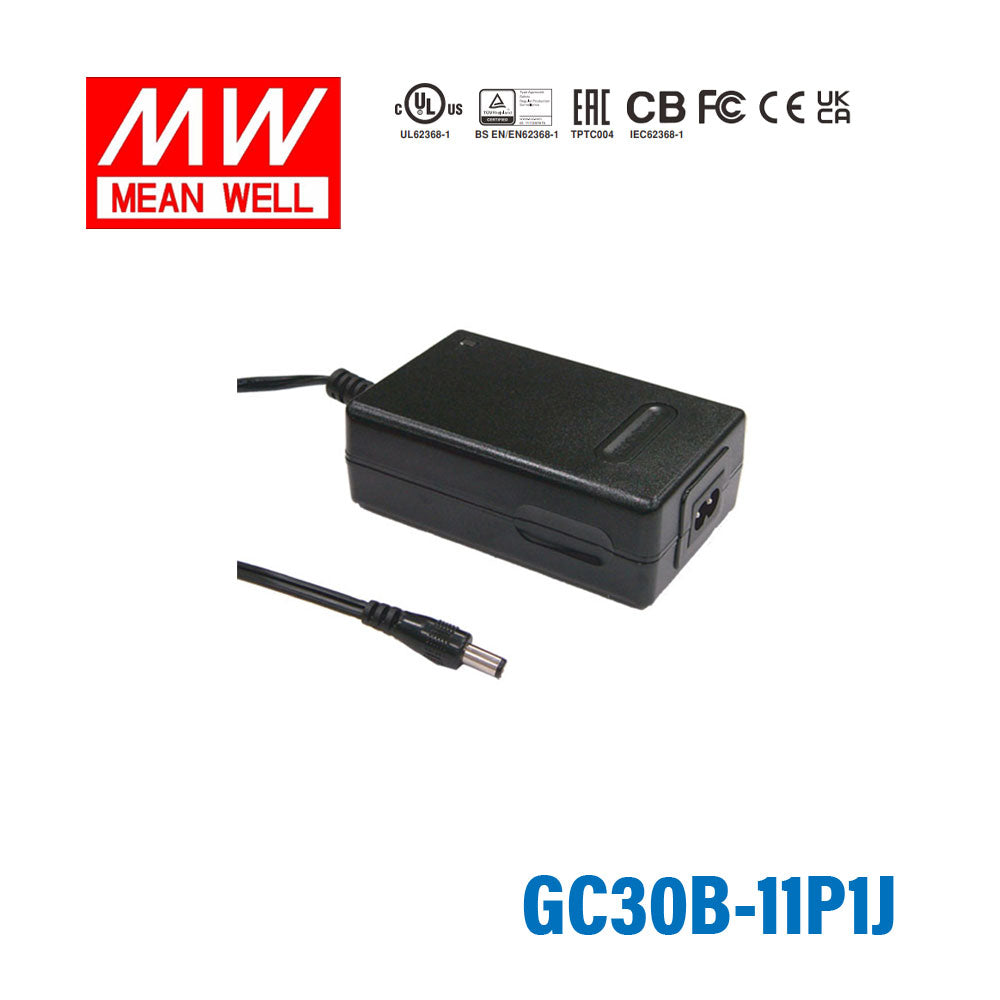

Mean Well GC30B-11P1J Portable Chargers 21.6W 7.2V 3A - Green Adaptor
The GC30B is a 30W Mean Well power converter (input range: 5~5.8V).
Key Features
- ✓ Input voltage range: 5~5.8V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL60950-1, CSA22.2, EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating21.6 Watt
-
Output Voltage7.2 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length4.25 in
-
Width2.64 in
-
Height1.42 in
-
Weight0.68 lb
::specification::
Frequently Asked Questions
What type of batteries is the Mean Well GC30B-11P1J designed for?
The GC30B-11P1J is intended for charging 7.2V battery systems and is described for use with lead-acid batteries, including flooded, gel, and AGM types, as well as certain Li-ion chemistries. This makes it a portable charger option for buyers needing support across several common battery technologies. Buyers should confirm the battery chemistry and charging profile match their equipment requirements before purchase.
What are the main output specifications of the GC30B-11P1J?
This model is rated at 21.6W with a 7.2V output and 3A rated current. Those specifications make it suitable for applications that need a compact charger in this voltage and current range. It operates in constant current and constant voltage modes.
Is the GC30B-11P1J suitable for portable or field-use equipment?
Yes, this model is positioned as a portable charger and has a compact enclosed plastic case measuring 108 x 67 x 36 mm. Its relatively light 309g weight also makes it practical where a small external charger is preferred. It is often a fit for portable battery-powered equipment needing a 7.2V charging solution.
What input range does the Mean Well GC30B-11P1J support?
The GC30B-11P1J supports a universal AC input range of 90 to 264VAC, and also lists 127 to 370VDC input capability. This broad input range helps buyers using the charger across different regions or power environments. It also uses a 2-pole IEC320-C8 AC inlet and Class II construction.
Can the GC30B-11P1J be used in demanding operating environments?
This charger is specified for operation from 0°C to 50°C, subject to the manufacturer's derating guidance. It also includes protections for short circuit, overload, over-voltage, and over-temperature, which adds resilience in commercial use. For indoor or controlled-environment applications within that temperature range, it is a practical option.
How can buyers tell the charging status on this model?
The GC30B-11P1J includes a 2-color LED indicator for charging status. That gives users a simple visual status check without needing additional monitoring hardware. This is useful for routine bench, service, and portable equipment charging workflows.
What certifications and warranty does the GC30B-11P1J include?
This model lists approvals including TUV, UL, CUL, CB, FCC, and CE, and it also references UL62368-1, CSA22.2, and EAC TP TC 004 safety standards. EMC standards listed include EN55022 Class B and FCC Part 15 Class B. Mean Well specifies a 2-year warranty for this charger.
