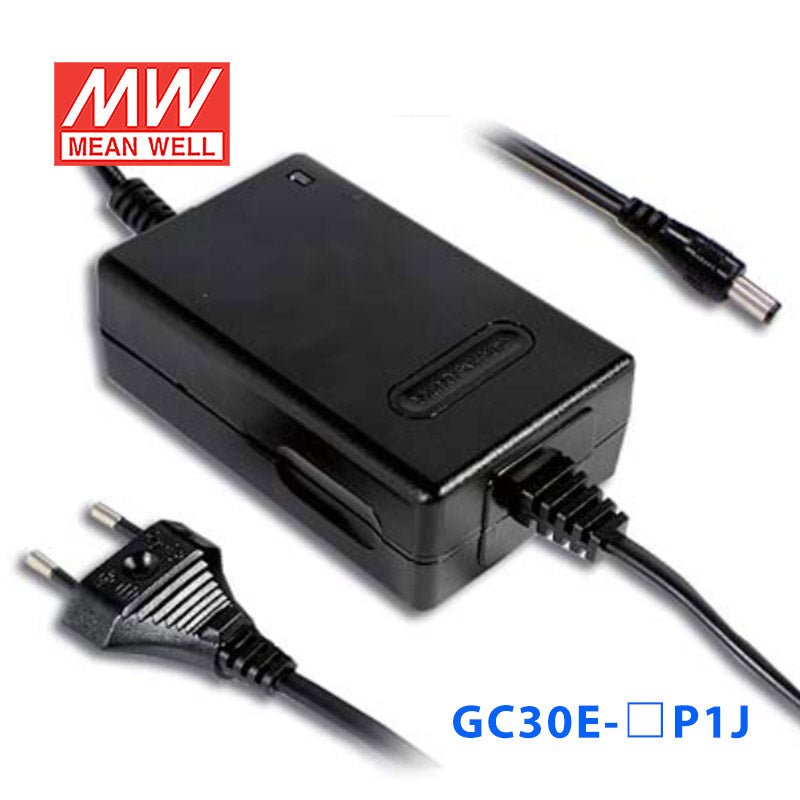

Mean Well GC30E-6P1J Portable Chargers 30W 28.6V 1.04A - Green Adaptor

class II power, no load power consumption
$33.76 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
With Euro type 6FT power cord(2pin)
Class II power(without earth pin)
No load power consumption < 1.0W
Constant current and voltage(CC, CV mode)
Suitable for continued load
For high surge current equipment
Protections: Short circuit / Overload / Over voltage / Over Temp.
2 color LED indicator for charging status
Fully enclosed plastic case
High reliability
Approvals:TUV/UL/CUL/CB/FCC/CE
2 years warranty

General Specification

AC input voltage range 90~264VAC | 127~370VDC
AC inrush current 40A / 230VAC
Over-voltage protection 110%~135% Shut down and latch off o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:3KVAC
Working temperature -0~+50°C (refer to derating curve)
Safety standards UL62368-1, CSA22.2, EAC TP TC 004 approved
EMC standards EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 108 x 67 x 36 mm
Packing 405g; 36pcs / 16.5kg / CARTON

Specifications

  • Brand
    Mean Well
  • Series
    GC Series
  • Power Rating
    30 Watt
  • Output Voltage
    28.6 Volt
  • Rated Current
    1.04 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,FCC,TUV
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    0°C~50°C
  • Warranty
    2 Year
  • Length
    4.25 in
  • Width
    2.64 in
  • Height
    1.42 in
  • Weight
    0.89 lb
