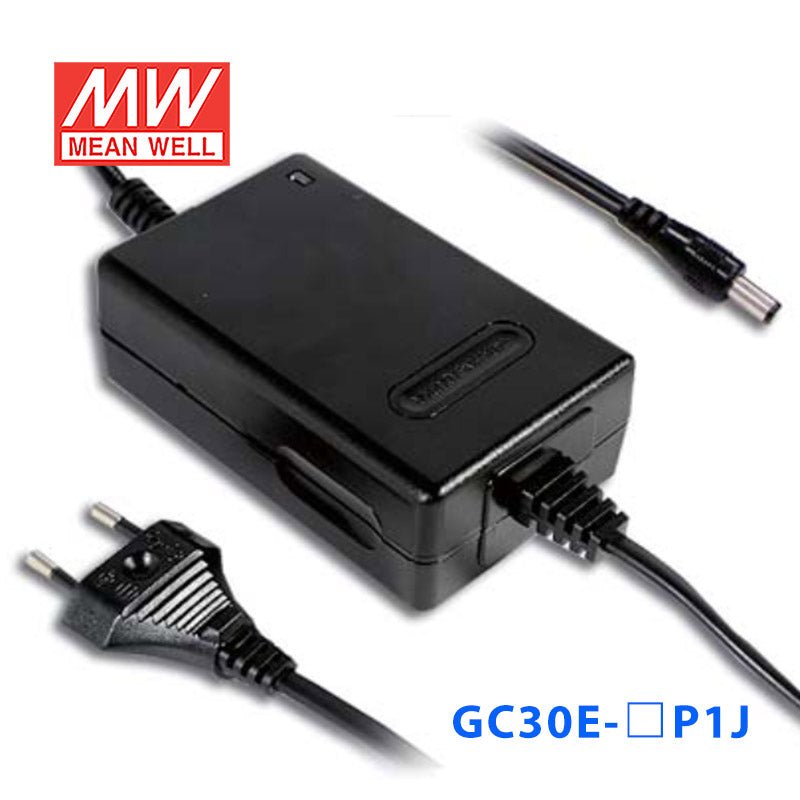

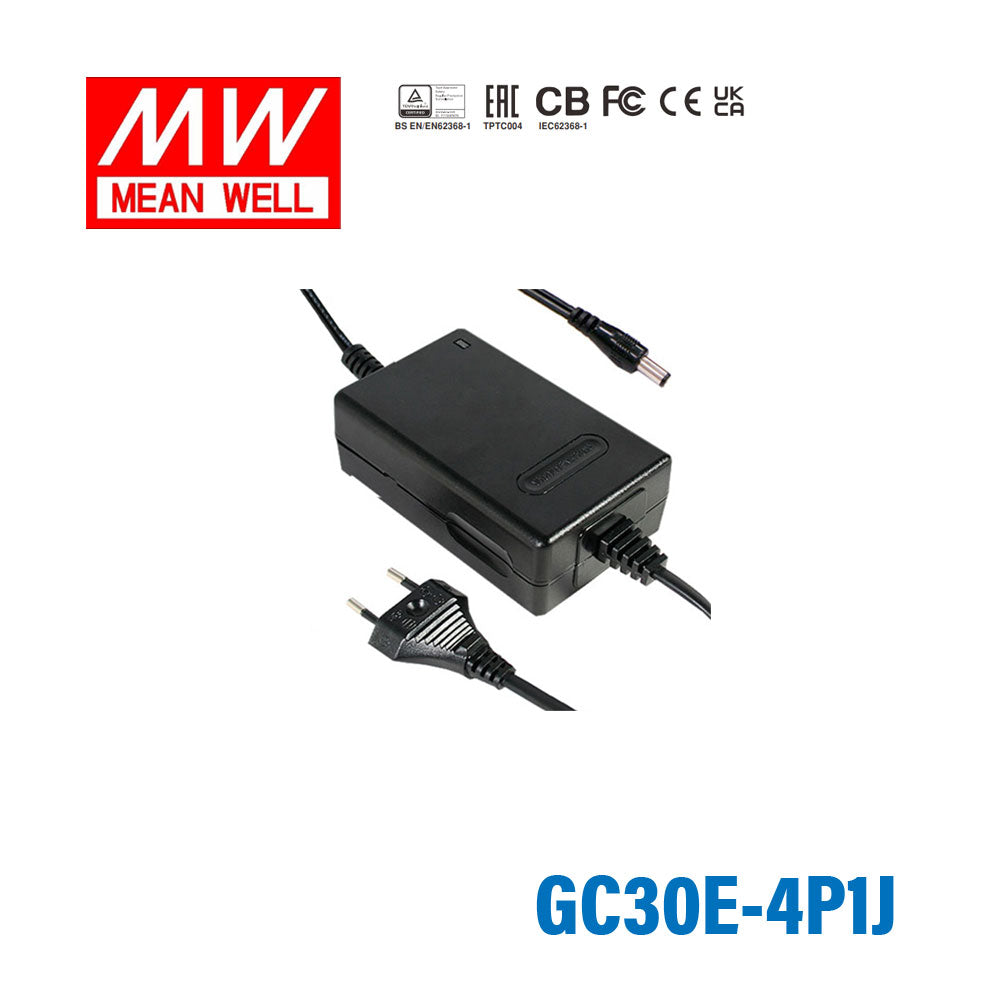

Mean Well GC30E-4P1J Portable Chargers 30W 14.3V 2.09A - Green Adaptor
$33.76 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| With Euro type 6FT power cord(2pin) |
| Class II power(without earth pin) |
| No load power consumption < 1.0W |
| Constant current and voltage(CC, CV mode) |
| Suitable for continued load |
| For high surge current equipment |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| 2 color LED indicator for charging status |
| Fully enclosed plastic case |
| High reliability |
| Approvals:TUV/UL/CUL/CB/FCC/CE |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC | 127~370VDC |
| AC inrush current | 40A / 230VAC |
| Over-voltage protection | 110%~135% Shut down and latch off o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC |
| Working temperature | -0~+50°C (refer to derating curve) |
| Safety standards | UL62368-1, CSA22.2, EAC TP TC 004 approved |
| EMC standards | EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 108 x 67 x 36 mm |
| Packing | 405g; 36pcs / 16.5kg / CARTON |
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating30 Watt
-
Output Voltage14.3 Volt
-
Rated Current2.09 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length4.25 in
-
Width2.64 in
-
Height1.42 in
-
Weight0.89 lb
