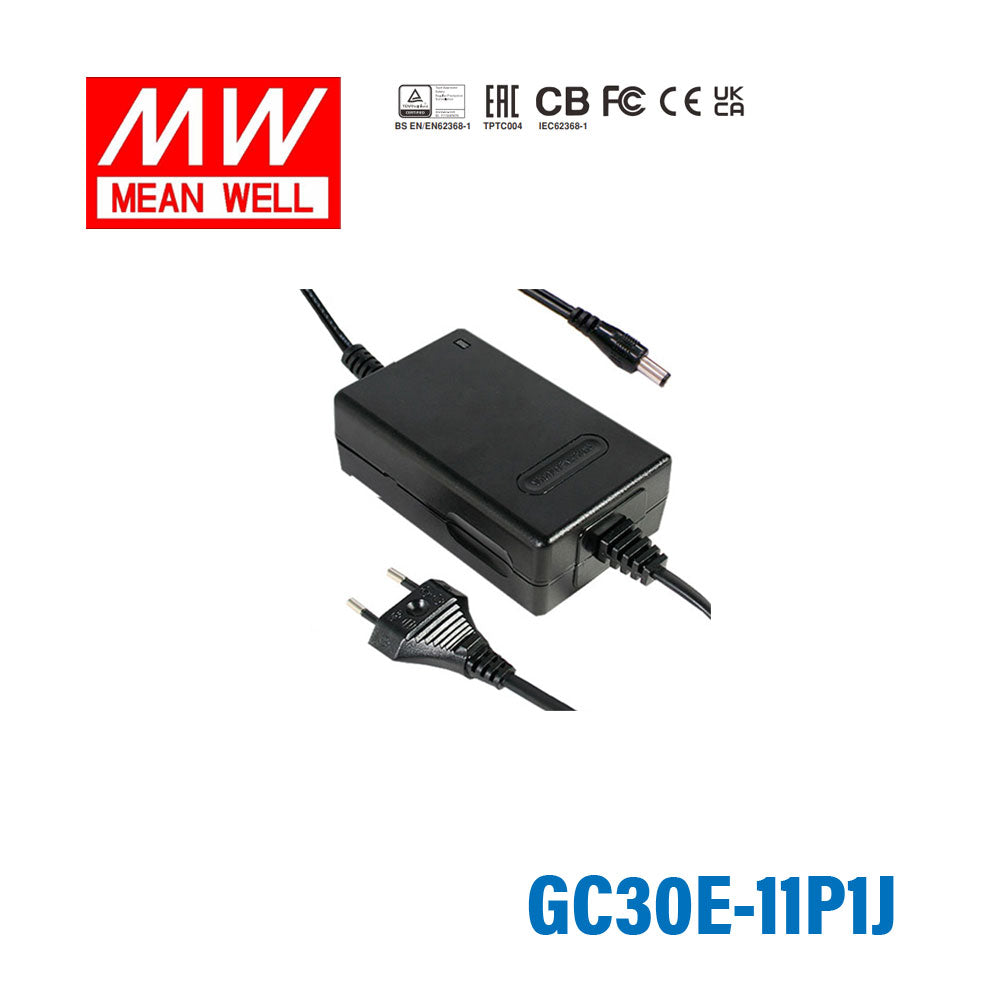

Mean Well GC30E-11P1J Portable Chargers 21.6W 7.2V 3A - Green Adaptor
The GC30E is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating21.6 Watt
-
Output Voltage7.2 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length4.25 in
-
Width2.64 in
-
Height1.42 in
-
Weight0.89 lb
::specification::
Frequently Asked Questions
What is the Mean Well GC30E-11P1J designed for?
The GC30E-11P1J is a 21.6W portable charger and green adaptor designed for battery charging applications and DC power use. The product description states it is suitable for lead-acid batteries including flooded, gel, and AGM types, as well as certain lithium-ion battery chemistries noted by the manufacturer. Its compact enclosed design also makes it suitable for portable and OEM equipment contexts.
What are the key output specifications of the GC30E-11P1J?
This model provides a 7.2V output rated at 3A, for a total power rating of 21.6W. It operates in constant current and constant voltage modes, which is typical for charger-style power supplies. These published ratings make it a fit for applications that require this exact voltage and current class.
What input range does the GC30E-11P1J support?
The GC30E-11P1J supports universal AC input with a specified range of 90 to 264VAC, and it also lists a 127 to 370VDC input range. This wide input range helps the unit work across different regional mains standards. The product also includes a Euro type 6FT 2-pin power cord.
Can this model be used in continuous-duty applications?
Yes, the manufacturer states that the GC30E-11P1J is suitable for continued load. It also notes constant current and constant voltage operation and suitability for high surge current equipment. Those characteristics make it appropriate for applications where stable ongoing operation is important.
What protections and status indication does the GC30E-11P1J include?
This model includes protection for short circuit, overload, over voltage, and over temperature. It also features a 2-color LED indicator for charging status. These built-in protections help support safer operation in demanding commercial and industrial use cases.
What operating environment is the GC30E-11P1J rated for?
The specified working temperature range is 0 to 50 degrees C, with reference to the manufacturer's derating curve. The unit uses a fully enclosed plastic case and is rated as Class II power without an earth pin. Buyers should confirm their ambient conditions stay within the published operating range.
What certifications and compliance approvals does this charger have?
The product listing includes approvals such as TUV, UL, CUL, CB, FCC, and CE. It also lists safety standards including UL62368-1, CSA22.2, and EAC TP TC 004, plus EMC standards such as EN55022 Class B and FCC Part 15 Class B. These approvals are useful for OEMs and business buyers that need documented compliance coverage.
How compact is the Mean Well GC30E-11P1J?
The published dimensions are 108 x 67 x 36 mm, and the listed unit weight is 405 g. That makes it a compact portable charger for applications where size and handling matter. Its enclosed housing also supports use in finished equipment environments.
