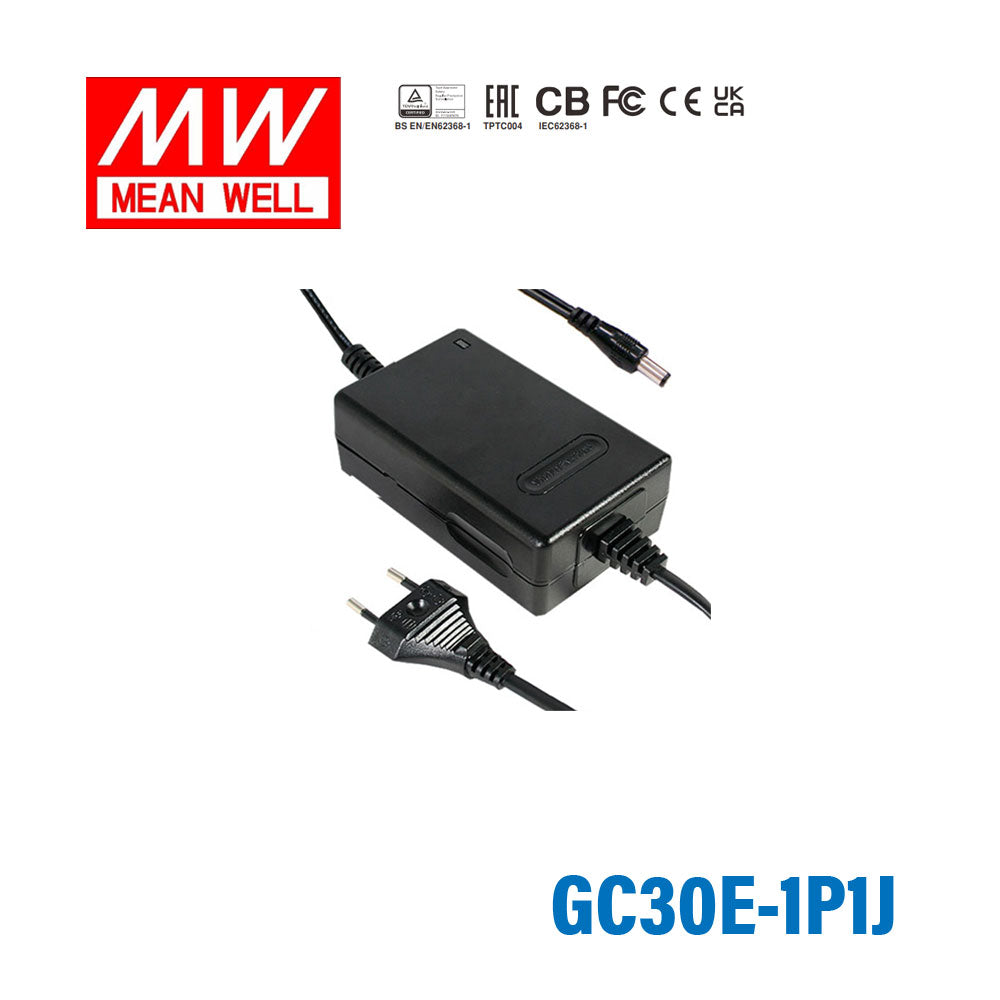

Mean Well GC30E-1P1J Portable Chargers 22.38W 5.6V 3.99A - Green Ad...
The GC30E is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating22.38 Watt
-
Output Voltage5.6 Volt
-
Rated Current3.99 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length4.25 in
-
Width2.64 in
-
Height1.42 in
-
Weight0.89 lb
::specification::
Frequently Asked Questions
What is the Mean Well GC30E-1P1J designed for?
The GC30E-1P1J is a portable charger and AC/DC adaptor rated at 22.38W with a 5.6V output and 3.99A rated current. It is intended for battery charging and power supply use in applications that need a compact enclosed unit with constant current and constant voltage operation.
Which battery chemistries is the GC30E-1P1J compatible with?
This model is described for use with lead-acid batteries including flooded, gel, and AGM types. It is also listed for Li-ion batteries including lithium iron and lithium manganese chemistries.
What are the main electrical specifications of the GC30E-1P1J?
This model provides 5.6V output at up to 3.99A, for a total power rating of 22.38W. It accepts a universal input range of 90 to 264VAC or 127 to 370VDC, which makes it suitable for broad AC input conditions.
Is the GC30E-1P1J suitable for portable or space-limited equipment?
Yes. The enclosure measures 108 x 67 x 36 mm and the unit weight is 0.405 kg, so it is relatively compact for portable charger applications. It also uses a fully enclosed plastic case and includes a 6FT Euro type 2-pin power cord.
What protection and safety features does the GC30E-1P1J include?
The GC30E-1P1J includes short circuit, overload, over-voltage, and over-temperature protection. It is also approved to standards including UL62368-1, CSA22.2, EAC TP TC 004, and lists EMC compliance including EN55022 Class B and FCC Part 15 Class B.
What operating environment is specified for the GC30E-1P1J?
The specified working temperature range is 0 to +50°C, with reference to the derating curve. This model is intended for use within that ambient range rather than extreme hot or sub-zero conditions.
How can buyers identify charging status on the GC30E-1P1J?
This model includes a 2-color LED indicator for charging status. That gives a simple visual status indication without requiring extra monitoring hardware on the charger itself.
