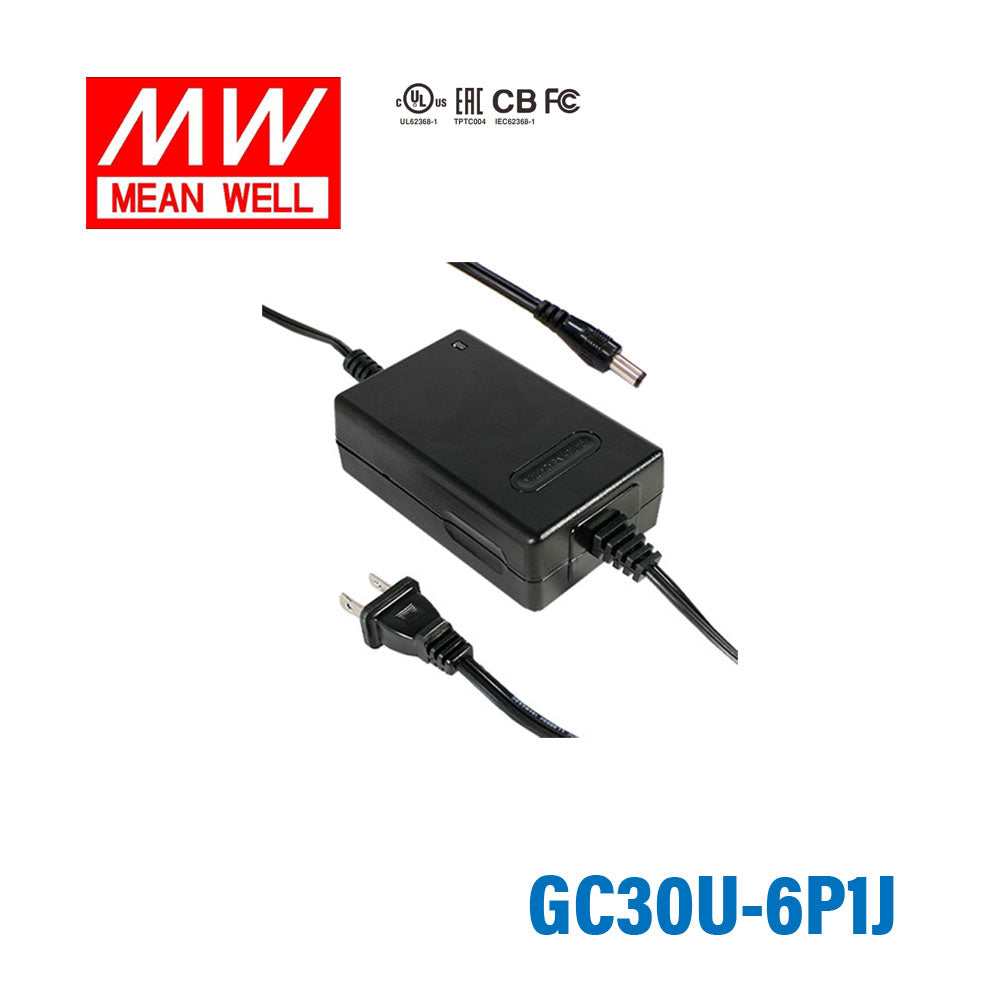

Mean Well GC30U-6P1J Portable Chargers 30W 28.6V 1.04A - Green Adaptor
The GC30U is a 30W Mean Well power converter (input range: 3.6~4.4V).
Key Features
- ✓ Input voltage range: 3.6~4.4V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating30 Watt
-
Output Voltage28.6 Volt
-
Rated Current1.04 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length4.25 in
-
Width2.64 in
-
Height1.42 in
-
Weight0.89 lb
::specification::
Frequently Asked Questions
What is the Mean Well GC30U-6P1J designed for?
The GC30U-6P1J is a 30W portable charger and power supply intended for battery-charging applications. It is designed for lead-acid batteries, including flooded, gel, and AGM types, as well as certain lithium-ion battery chemistries noted in the product data.
What are the output voltage and rated current of this model?
This model provides a 28.6V output and a rated current of 1.04A. Its maximum power rating is 30W, which places it in the compact portable charger category.
What battery types is the GC30U-6P1J compatible with?
According to the product description, this charger supports lead-acid batteries such as flooded, gel, and AGM. It also supports specified lithium-ion battery types including lithium iron and lithium manganese chemistries.
Can this charger be used in different AC input environments?
Yes. The GC30U-6P1J has a universal AC input range of 90 to 264VAC, and it also supports 127 to 370VDC input. That makes it suitable for use across a wide range of standard power environments.
What protection features are included on the GC30U-6P1J?
This model includes short circuit, overload, over-voltage, and over-temperature protection. The over-voltage protection is specified as a shutdown with latch-off behavior, with recovery after power is reapplied.
Is this a good choice for portable or space-limited applications?
Yes. The GC30U-6P1J has a compact enclosure measuring 108 x 67 x 36 mm and weighs about 0.405 kg, which makes it practical for portable use. Its enclosed plastic case and Class II design also suit applications where a small external charger is preferred.
What operating conditions and approvals does this charger have?
The specified working temperature range is 0 to 50 degrees C, subject to the derating guidance in the product data. It also carries multiple approvals and standards coverage, including UL62368-1, CSA22.2, EAC TP TC 004, FCC, CE, and TUV-related approvals listed in the description.
How can I tell the charging status on this model?
The GC30U-6P1J includes a 2-color LED indicator for charging status. This gives a quick visual status reference without needing extra accessories or monitoring equipment.
