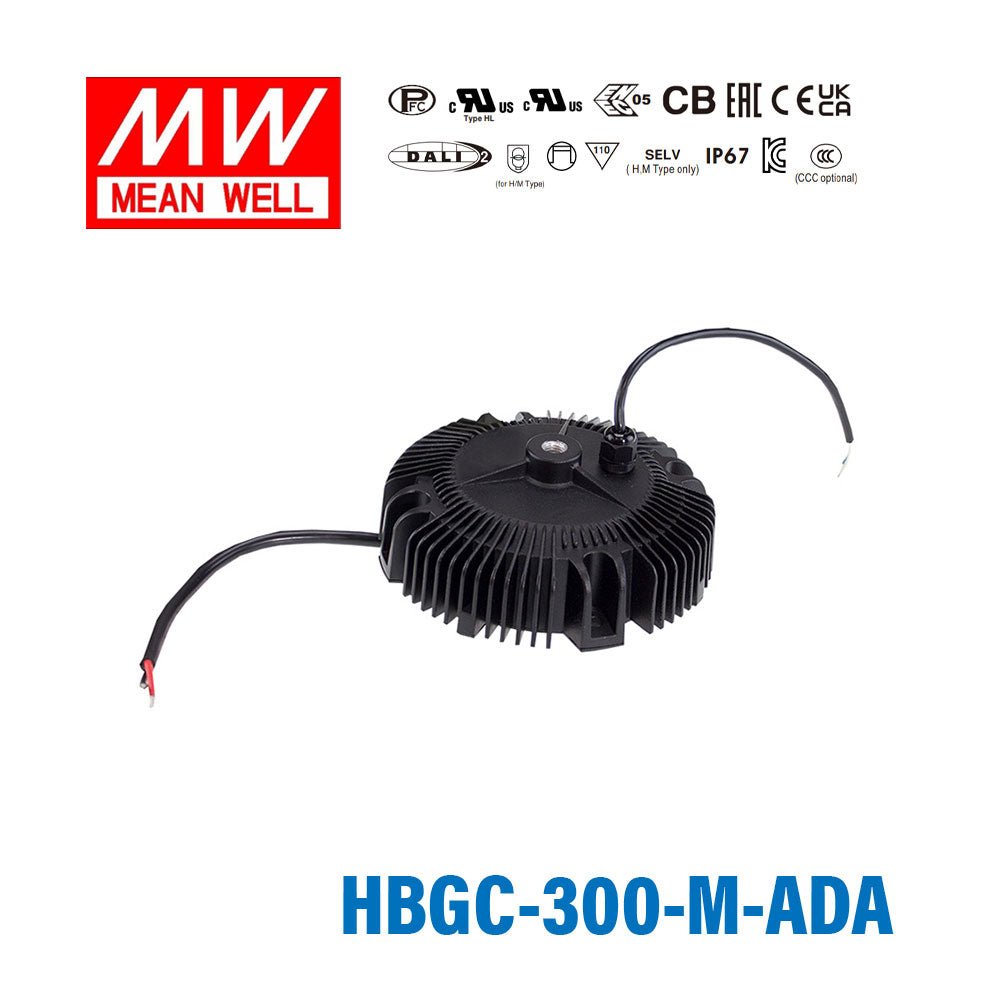

Mean Well HBGC-300-M-ADA Power Supply 300W 2800mA - Adjustable and ...
The HBGC-300-M-ADA is a 301.6W Mean Well AC-DC constant current LED driver (input: 90~305VAC, output: 120V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage (max): 120V
- ✓ Rated output current: 2.8A
- ✓ DALI dimming support
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+80°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: CB, CCC, CE, ENEC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesHBGC Series
-
Power Rating301.6 Watt
-
Output Voltage120 Volt
-
Rated Current2.8 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.85 lb
::specification::
Frequently Asked Questions
Can I use the HBGC-300-M-ADA for DALI-controlled LED downlights?
Yes, if the downlight load is constant current and operates within the 58-116V CC range. This ADA version includes DALI dimming, so it is suited to fixtures that need that control method. The LED load also needs to stay within 301.6W.
Is the HBGC-300-M-ADA suitable for signage modules in a DALI lighting system?
It can be suitable when the signage assembly is designed for constant current and the total forward voltage falls between 58V and 116V. The number of modules depends on each module's forward voltage, so there is no universal module count. Because this is a constant-current driver, it is not the right match for constant-voltage signage products.
Can this model power a small LED array in an architectural fixture with DALI control?
Yes, provided the LED array is a constant-current load operating inside the 58-116V range. The DALI feature makes this version a practical fit where centralized dimming control is required. Its 301.6W rating supports larger LED arrays than low-power drivers in the same application class.
What determines LED compatibility with the HBGC-300-M-ADA?
Compatibility is based on constant-current operation, a total forward-voltage requirement within 58-116V, and total load power within 301.6W. The exact number of LEDs depends on the forward voltage of each LED, so there is no fixed LED count that applies to every design. If the fixture expects a fixed DC output, a constant-voltage supply is the better category.
Can the HBGC-300-M-ADA be used in wet or demanding ambient conditions?
Yes. It is rated IP67 waterproof and has an operating temperature range of -40°C to +80°C. That combination supports use in harsh indoor or outdoor lighting environments where sealing and temperature tolerance are important.
