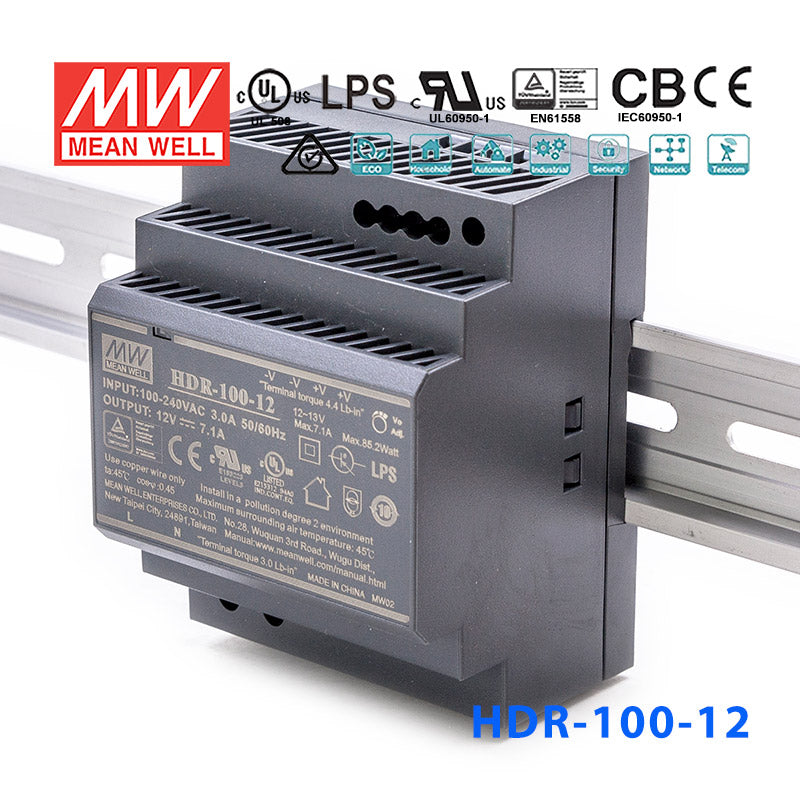

Mean Well HDR-100-12 Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-100-12 Ultra Slim Step Shape Power Supply 100W 12V - ...
The HDR-100 is a 100W Mean Well power converter (input range: 85~2 VAC).
Key Features
- ✓ Input voltage range: 85~2 VAC
- ✓ DC output voltage adjustable ±10%
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating82.5 Watt
-
Output Voltage12 Volt
-
Rated Current7.1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.76 in
-
Height2.15 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
Is the HDR-100-12 suitable for powering 12V PLC systems in a control panel?
Yes. The HDR-100-12 delivers 12V at up to 7.1A (82.5W), which fits many 12V PLC power buses and small control panel loads. Its DIN rail form factor and step-shape profile simplify installation inside compact enclosures.
Can this power supply run in cold or hot environments, such as an outdoor control cabinet?
The HDR-100-12 is rated for -30°C to +70°C operating temperature, making it suitable for use inside control cabinets that experience wide temperature swings. It does not carry an IP rating, so it must be housed in an enclosure when used in dusty or wet environments.
How does the HDR-100-12 differ from the HDR-100-12N?
Both are 12V DIN rail supplies with identical physical dimensions (90.0 × 70.0 × 54.5 mm) and the same certifications. The HDR-100-12 is rated at 82.5W / 7.1A, while the HDR-100-12N is rated at 90W / 7.5A — a higher continuous current capacity.
What certifications does the HDR-100-12 hold?
The HDR-100-12 holds BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications. This certification breadth supports use in North American, European, and Australian regulated installations.
Is the output voltage on the HDR-100-12 adjustable?
Yes, the HDR-100-12 features an adjustable DC output voltage. The no-load power consumption is less than 0.3W, which keeps standby draw minimal in always-on control systems.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HDR-100 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-100-48 Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail | 92.2W | 48V | 1.92A | Indoor | $29.65 | View |
| Mean Well HDR-100-24 Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail | 92W | 24V | 3.83A | Indoor | $32.95 | View |
| Mean Well HDR-100-15 Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail | 92W | 15V | 6.13A | Indoor | $27.85 | View |
| Mean Well HDR-100-48N Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail | 100.8W | 48V | 2.1A | Indoor | $29.65 | View |
| Mean Well HDR-100-24N Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail | 100.8W | 24V | 4.2A | Indoor | $34.45 | View |
| Mean Well HDR-100-15N Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail | 97.5W | 15V | 6.5A | Indoor | $35.91 | View |
| Mean Well HDR-100-12N Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail | 90W | 12V | 7.5A | Indoor | $29.27 | View |
