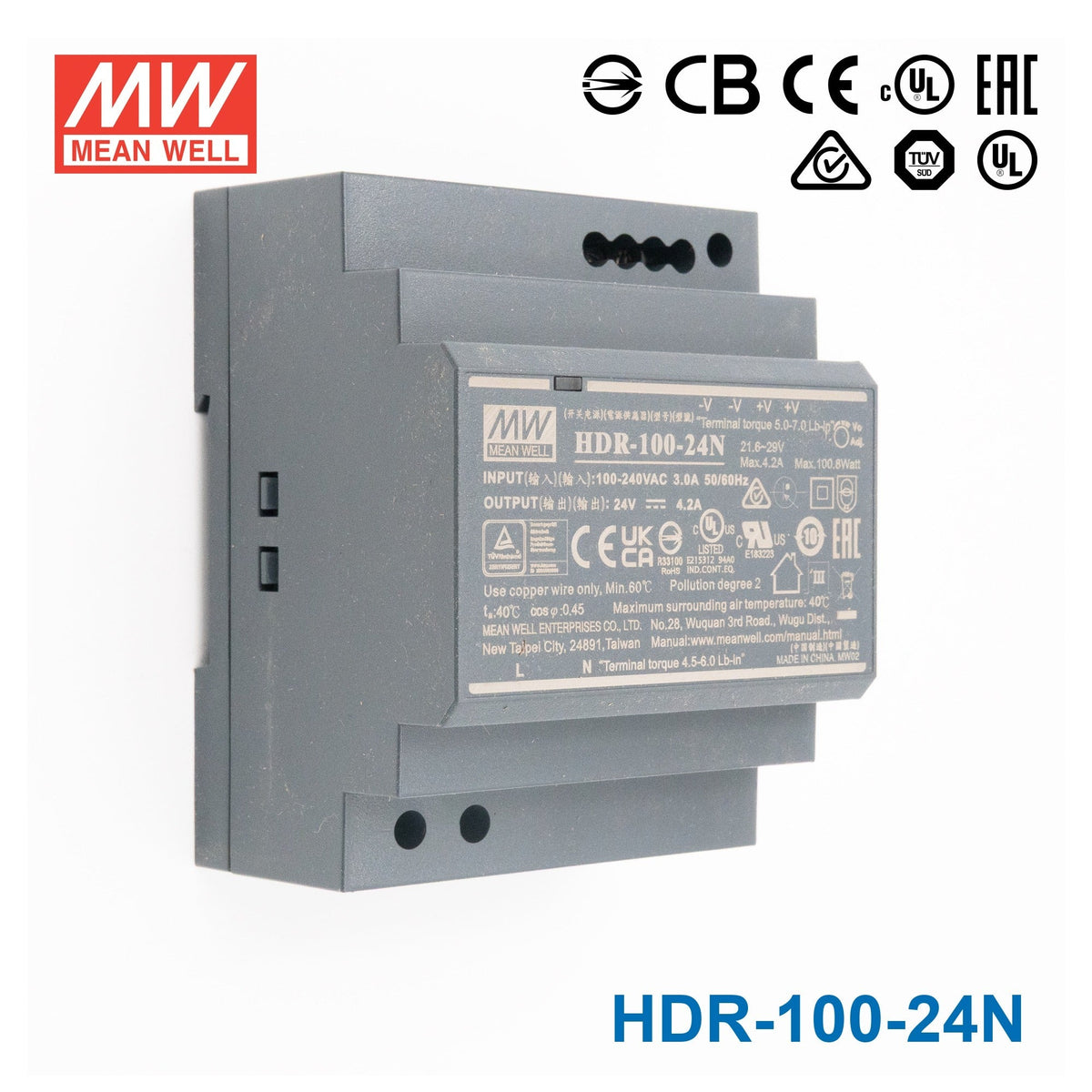

Mean Well HDR-100-24N Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-100-24N Ultra Slim Step Shape Power Supply 100W 24V -...
The HDR-100 is a 100W Mean Well power converter (input range: 85~2 VAC).
Key Features
- ✓ Input voltage range: 85~2 VAC
- ✓ DC output voltage adjustable ±10%
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating100.8 Watt
-
Output Voltage24 Volt
-
Rated Current4.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.76 in
-
Height2.15 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What 24V applications is the HDR-100-24N sized for?
At 100.8W and 4.2A on a 24VDC bus, the HDR-100-24N can power PLC backplanes, distributed I/O racks, field devices, and small HVAC/BMS controllers mounted in DIN rail enclosures. The slim step-shape profile keeps panel layouts compact.
How does the HDR-100-24N differ from the standard HDR-100-24?
The HDR-100-24N is rated 100.8W / 4.2A versus the HDR-100-24 at 92W / 3.83A. Both use the same 90.0 × 70.0 × 54.5 mm housing and carry the same certifications (BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, UL) with a 3-year warranty.
Does the HDR-100-24N accept both 120V and 240V mains?
Yes, its 85–264VAC universal input accommodates both North American 120V and European/international 240V mains without requiring input voltage selection. This makes it suitable for global panel builds.
What are the enclosure requirements for the HDR-100-24N?
The HDR-100-24N is designed for installation inside a control cabinet or enclosure and does not carry an IP rating on its own. Operating temperature is -30°C to +70°C, which suits most indoor and protected outdoor enclosure deployments.
