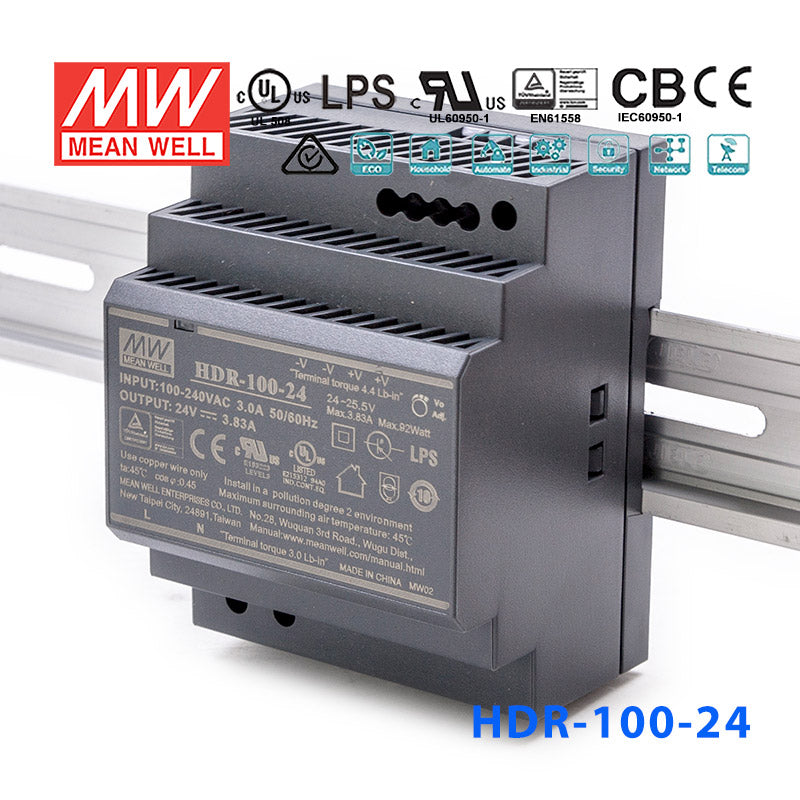

Mean Well HDR-100-24 Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-100-24 Ultra Slim Step Shape Power Supply 100W 24V - ...
The HDR-100 is a 100W Mean Well power converter (input range: 85~2 VAC).
Key Features
- ✓ Input voltage range: 85~2 VAC
- ✓ DC output voltage adjustable ±10%
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating92 Watt
-
Output Voltage24 Volt
-
Rated Current3.83 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.76 in
-
Height2.15 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
Is the HDR-100-24 suitable for powering 24V PLCs and building management controllers?
Yes. The HDR-100-24 delivers 24V at 3.83A (92W), which aligns with the standard 24VDC bus used by most PLCs, building automation controllers, and industrial I/O modules. Its DIN rail mounting and 90.0 × 70.0 × 54.5 mm footprint make it a compact fit in control cabinets.
How does the HDR-100-24 compare to the HDR-100-24N?
The HDR-100-24 is rated at 92W / 3.83A while the HDR-100-24N delivers 100.8W / 4.2A. Both share the same 90.0 × 70.0 × 54.5 mm chassis, 85–264VAC input, and identical certifications — the N variant provides about 10% more output current.
Can this unit handle the temperature extremes of an outdoor control cabinet?
The HDR-100-24 is rated -30°C to +70°C, covering cold outdoor enclosures down to -30°C and warm in-cabinet temperatures up to +70°C. It has no IP rating and requires installation inside a proper enclosure for protection against moisture and dust.
What is the isolation class of the HDR-100-24?
The HDR-100-24 uses isolation class II, meaning it does not require a protective earth connection on the output side. This can simplify grounding in systems with specific safety architectures.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HDR-100 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-100-12 Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail | 82.5W | 12V | 7.1A | Indoor | $29.71 | View |
| Mean Well HDR-100-48 Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail | 92.2W | 48V | 1.92A | Indoor | $29.65 | View |
| Mean Well HDR-100-15 Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail | 92W | 15V | 6.13A | Indoor | $27.85 | View |
| Mean Well HDR-100-48N Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail | 100.8W | 48V | 2.1A | Indoor | $29.65 | View |
| Mean Well HDR-100-24N Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail | 100.8W | 24V | 4.2A | Indoor | $34.45 | View |
| Mean Well HDR-100-15N Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail | 97.5W | 15V | 6.5A | Indoor | $35.91 | View |
| Mean Well HDR-100-12N Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail | 90W | 12V | 7.5A | Indoor | $29.27 | View |
